| Brand: | Talgil |
| Category: | Irrigation-Automation, Analog, Digital & SDI Sensors |
| Sensor Type: | Analog - Air Temperature Sensor |
| Output Type: | 4-20mA |
Product Description
- High precision across the entire temperature measurement range
- Wide operating temperature range
- Particularly good response dynamics and very short power-on delay time
- Robust stainless steel housing with a very high-pressure rating
- High protection rating for the requirements of mobile machines
Product Characteristics
Number of analogue outputs: 1
Measuring range: -50...150°C
Process connection: threaded connection G 1/4 external thread
installation length [EL]: 25mm

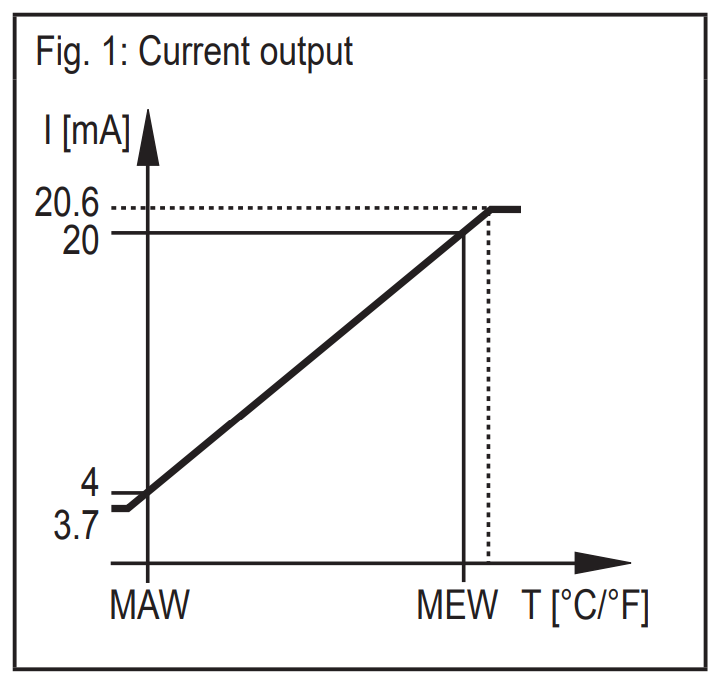

In the measuring range the output signal is between 4 and 20 mA. If the temperature is above or below the measuring range, the analogue output behaves as follows: Temperature above the measuring range: 20...20.6 mA. Temperature below the measuring range: 4...3.7 mA.
T = Temperature
MAW = initial value of the measuring range
MEW = final value of the measuring range
Application
Special feature: Gold-plated contacts
Measuring element: 1xPt 1000; (to DIN EN 60751, class A)
Media: liquids and gases
Pressure rating: 400 bar
Wiring Instruction
RTU RF G5 ECO - 222 or 112 (OUT / IN / ANA IN)
Analog Interface - 4 ANA / 2 ANA IN for Talgil DREAM2 Controller
EXPANSION CARD - 4 Digital IN & 1 ANA IN for Talgil RTU RF G5 MODULAR
Expansion Module - 4 ANA LIN for RTU G5 MODULAR
RTU RF G5 4ANA IN - Stand alone 4 ANA RF RTU
Technical Specifications
Electrical Data
Operating Voltage[V]: 10...30 DC; ("supply class 2" to cULus)
Current consumption[mA]: <30
Protection class: III
Reverse polarity protection: Yes
Outputs
Total number of outputs: 1
Output signal: analog signal
Number of analog outputs: 1
Analog current outputs[mA]: 4...20
Max. load [Ω]: (Ub-8.5V) / 21/5 mA; 24: 7 20 Ω
Short circuit protection: Yes
Overload protection: Yes
Accuracy and Deviations
Precision analogue output[K]: ± 0,3 + (± 0,1 % MS)
Temperature coefficient: [% of the span /10 K]: 0.1; (in case of deviation from the reference condition 25 ± 5 °C)
Response times
Dynamic response T05 / T09 [s]: 1/3; (to DIN EN 60751)
Operating conditions
Ambient temperature [°C]: -40...100
Storage temperature[°C]: -40...100
Protection: IP68; IP 69K
Mechanical Data
Weight[g]: 34
Dimensions[mm]: Ø 18.8
Materials: stainless steel(1.4404 / 316); PEI; KFM
Materials (wetted parts): stainless steel(1.4404 / 316L); KFM
Process connection: threaded connection G1/4 external thread
Probe diameter[mm]: 6
Installation length EL[mm]: 25

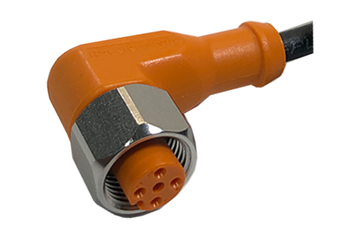

Cable Connectors
Technical Specifications
Materials: Housing: TPU orange; Sealing: FKM
Material Nut: stainless steel (1.4404 / 316L)

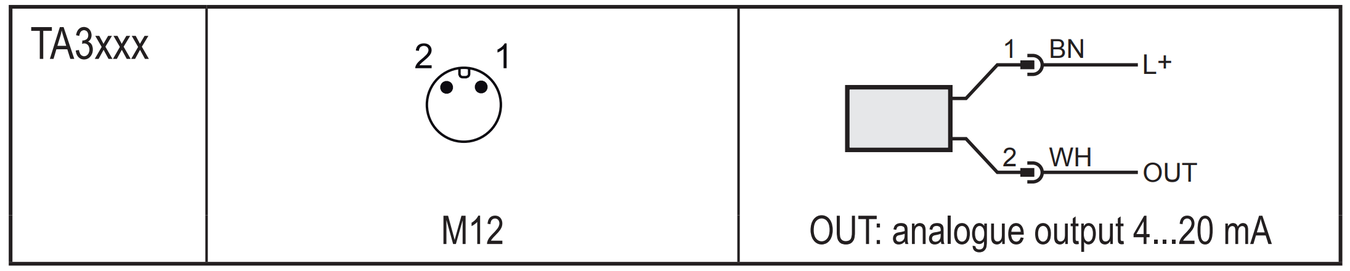

Electrical Connection
Cable: 2 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

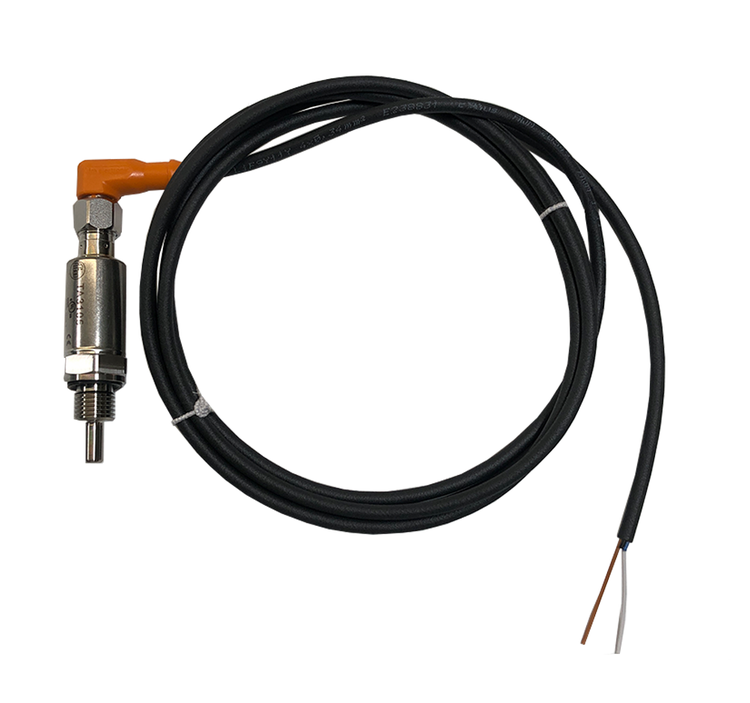

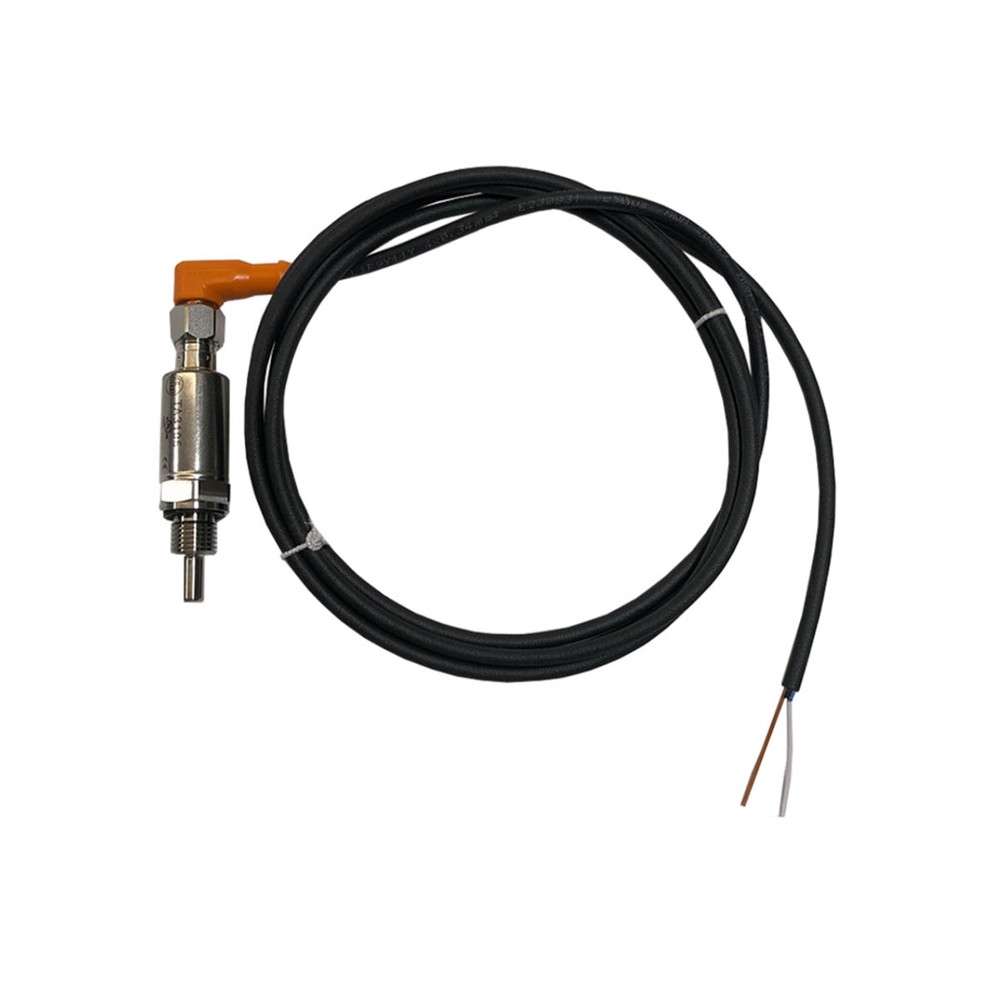

Talgil - Analog Sensor - Air Temperature - Model TA3105 + EVM004
Talgil - TG-AIRTEMP
| Product Code | Sensor Type | Output Type | Description |
|---|---|---|---|
| TG-AIRTEMP | Analog | 4-20mA | SENSOR - AIR TEMPERATURE SENSOR, -50 to +150C - C/W 5m cable |
