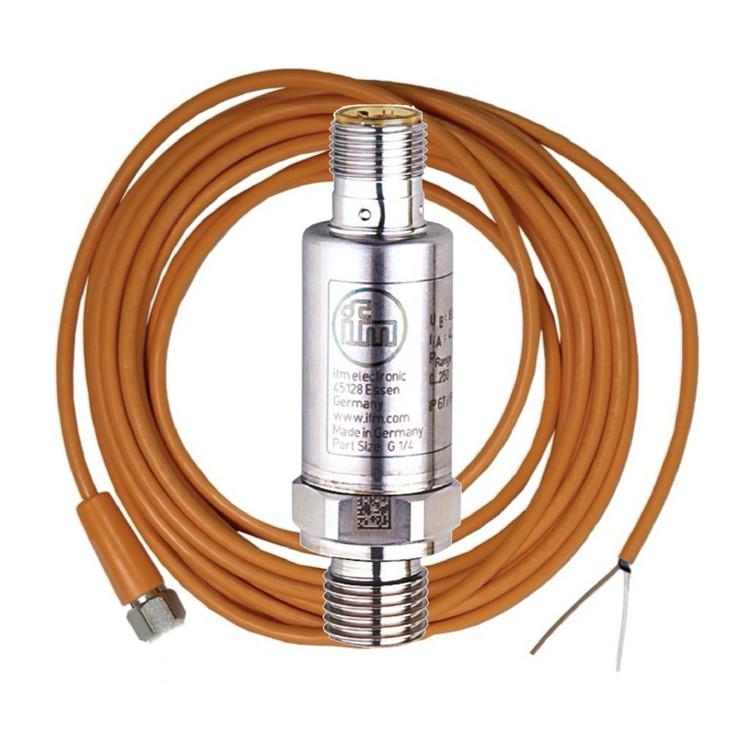

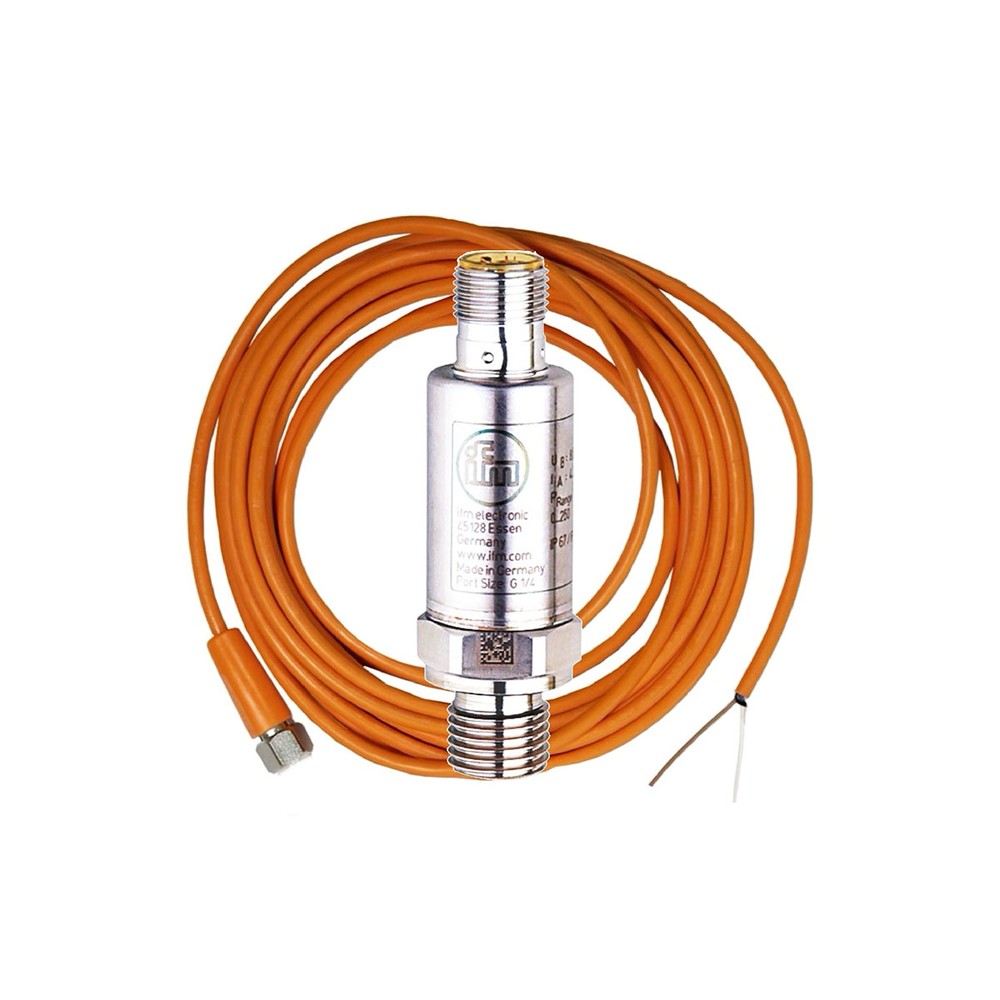

Talgil - Analog Sensor - Pressure Transducer

• Reliable detection of system pressure in industrial applications
• High shock and vibration resistance
• Excellent repeatability and low linearity error
• Lifespan of more than 60 million pressure cycles
• Compact and robust stainless steel housing for use where space is restricted

Product Characteristics

Measuring range:

• 0...25 bar
• 0...360 psi
• 0...2.5 MPa

Process connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2).

Application

Media: liquids and gases
Medium temperature [°C]: -40...90
Min. bursting pressure: 600 bar, 8700 psi, 60 MPa
Pressure rating: 65 bar, 940 psi, 6.5 Mpa
Note on pressure rating: static

Vacuum resistance [mbar]: -1000
Type of pressure: relative pressure

Mechanical data

Weight [g]: 59
Materials: 1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Min. pressure cycles: 60 million; (at 1.2 times nominal pressure)
Tightening torque [Nm]: 25...35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2).

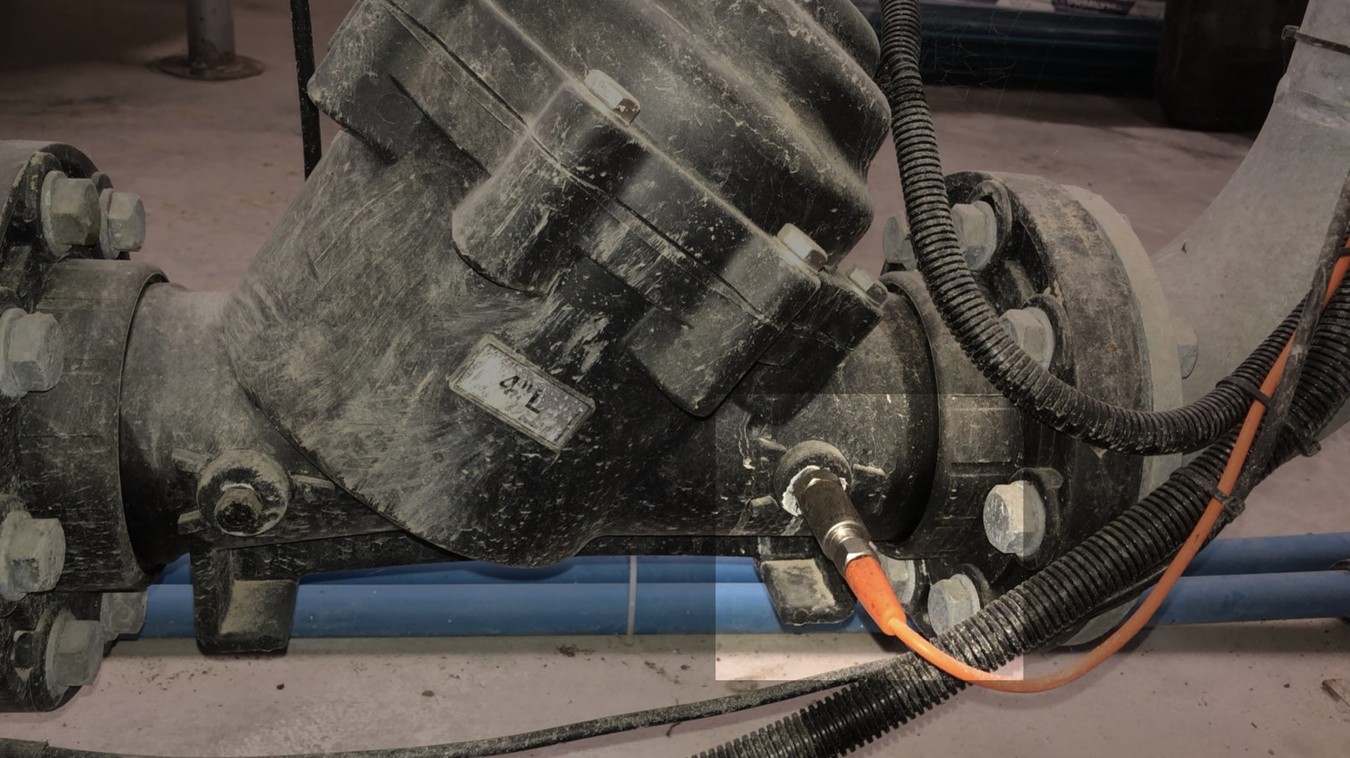

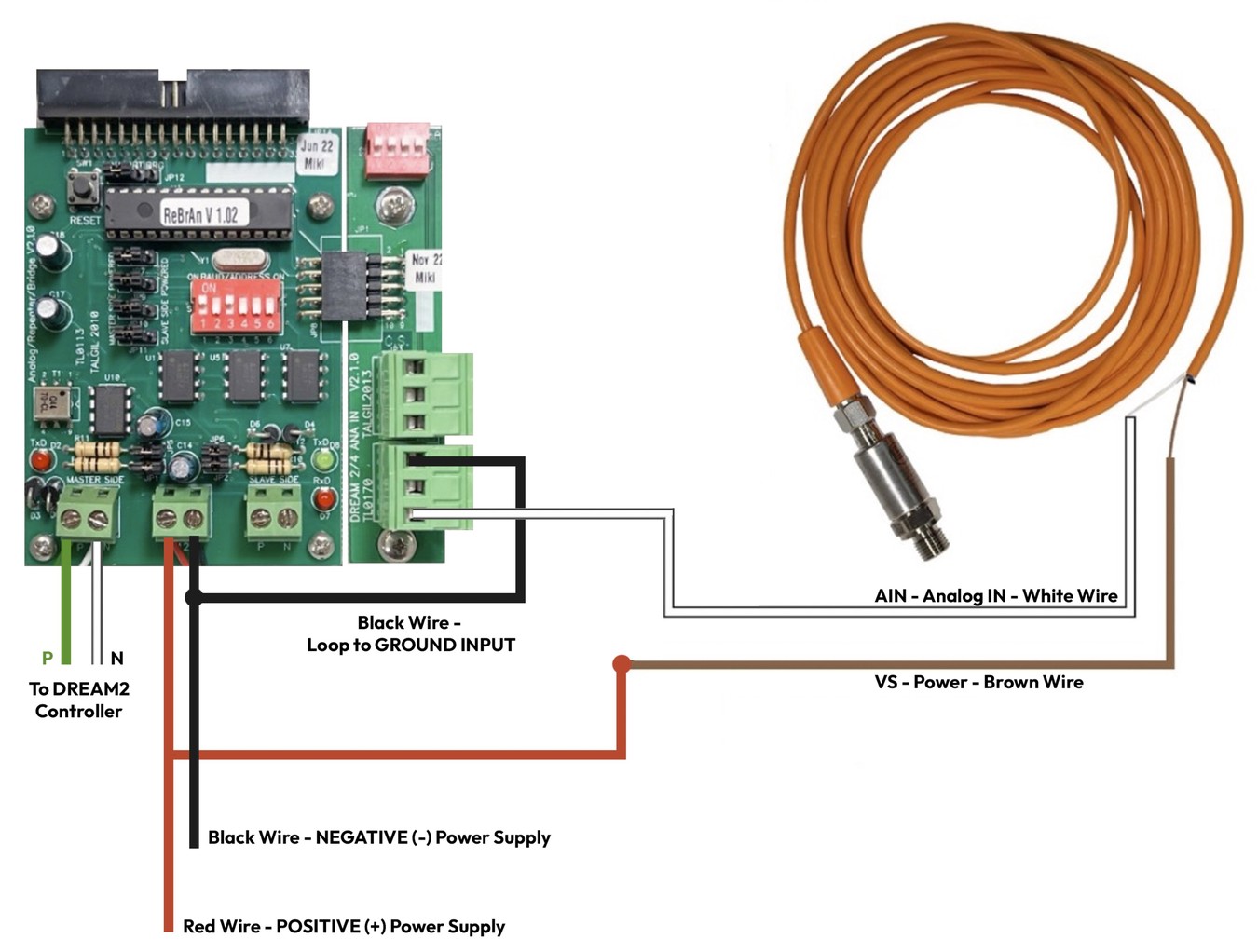

Typical Installation

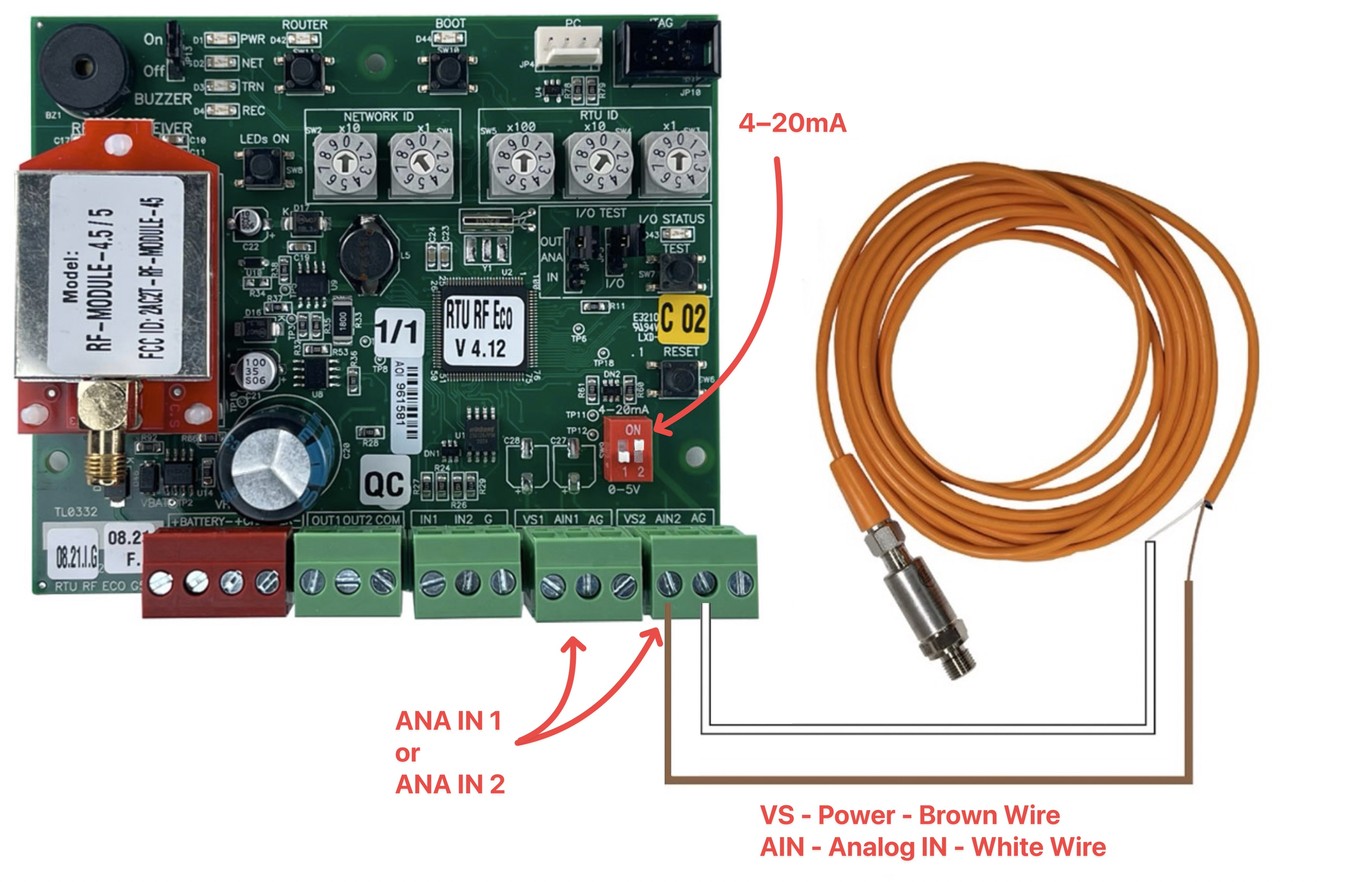

RTU RF G5 ECO - 222 or 112 (OUT / IN / ANA IN)

Analog Interface - 4 ANA / 2 ANA IN for Talgil DREAM2 Controller

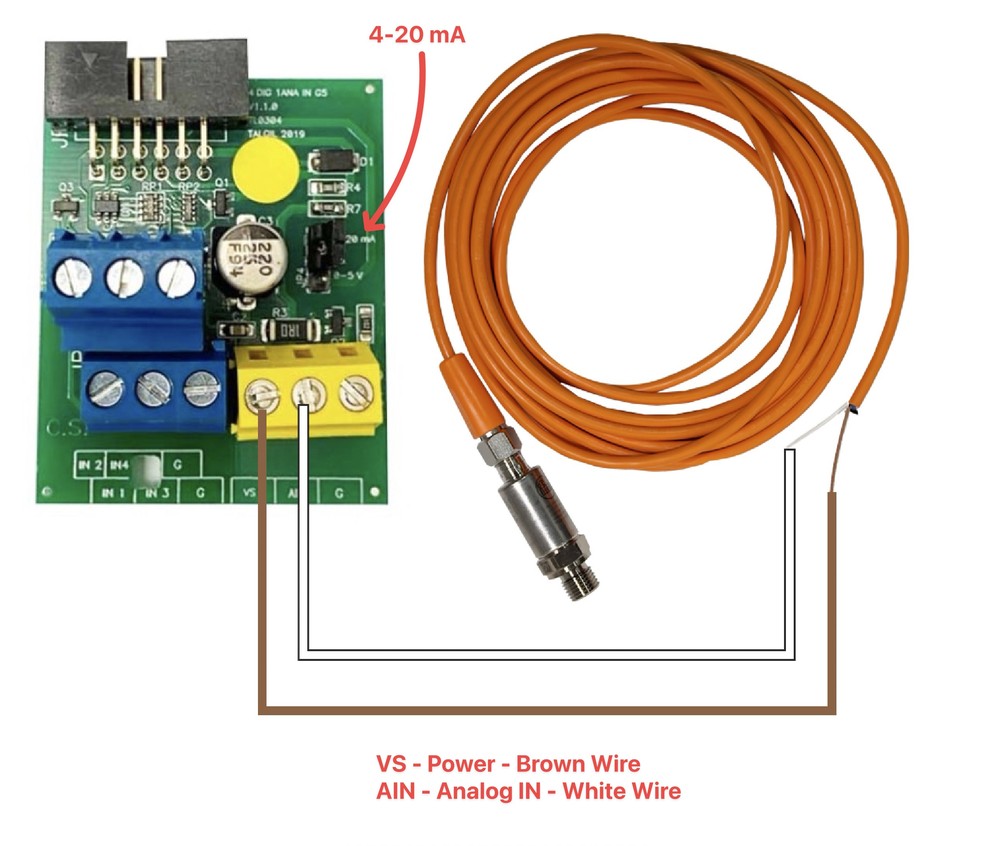

EXPANSION CARD - 4 Digital IN & 1 ANA IN for Talgil RTU RF G5 MODULAR

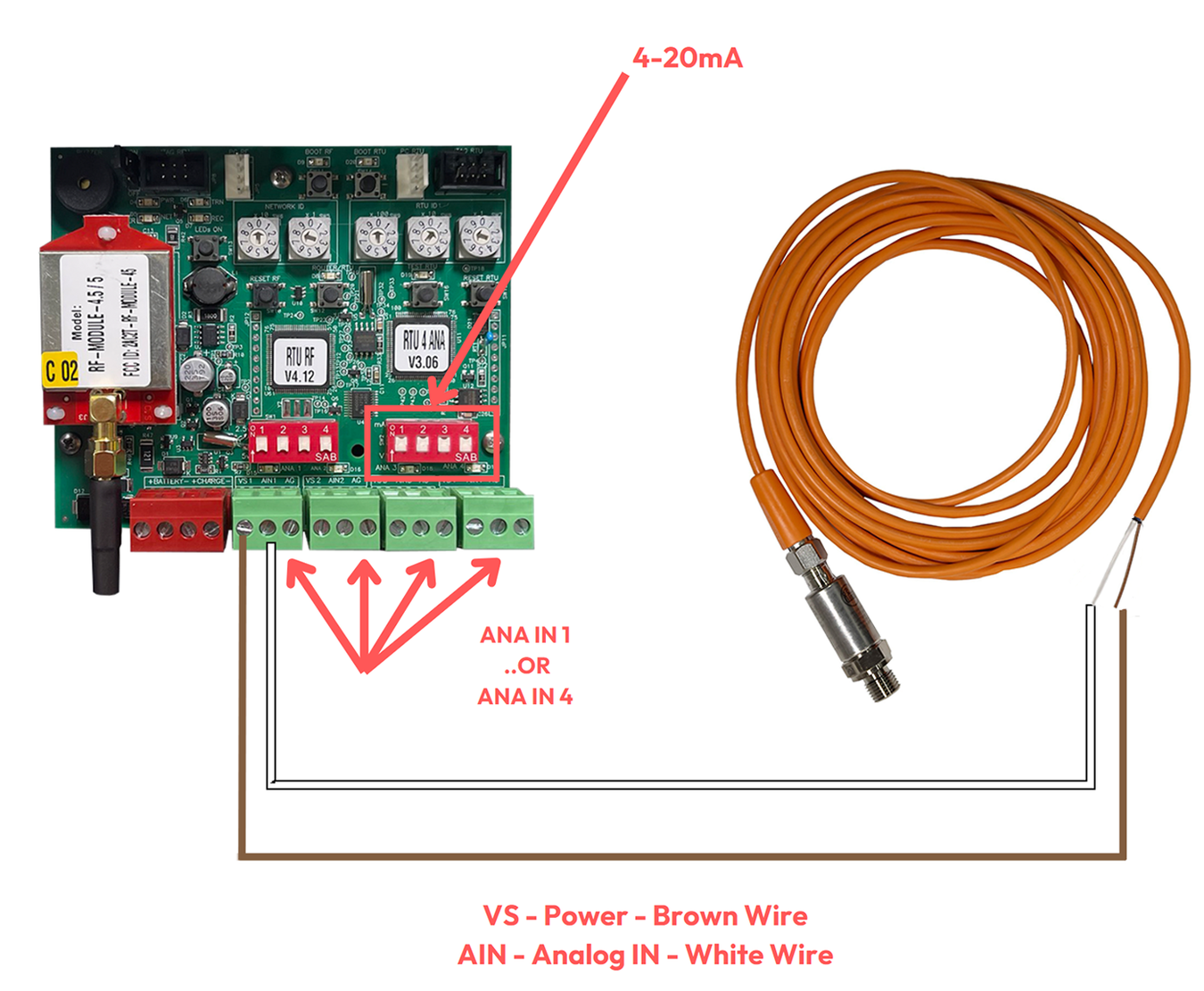

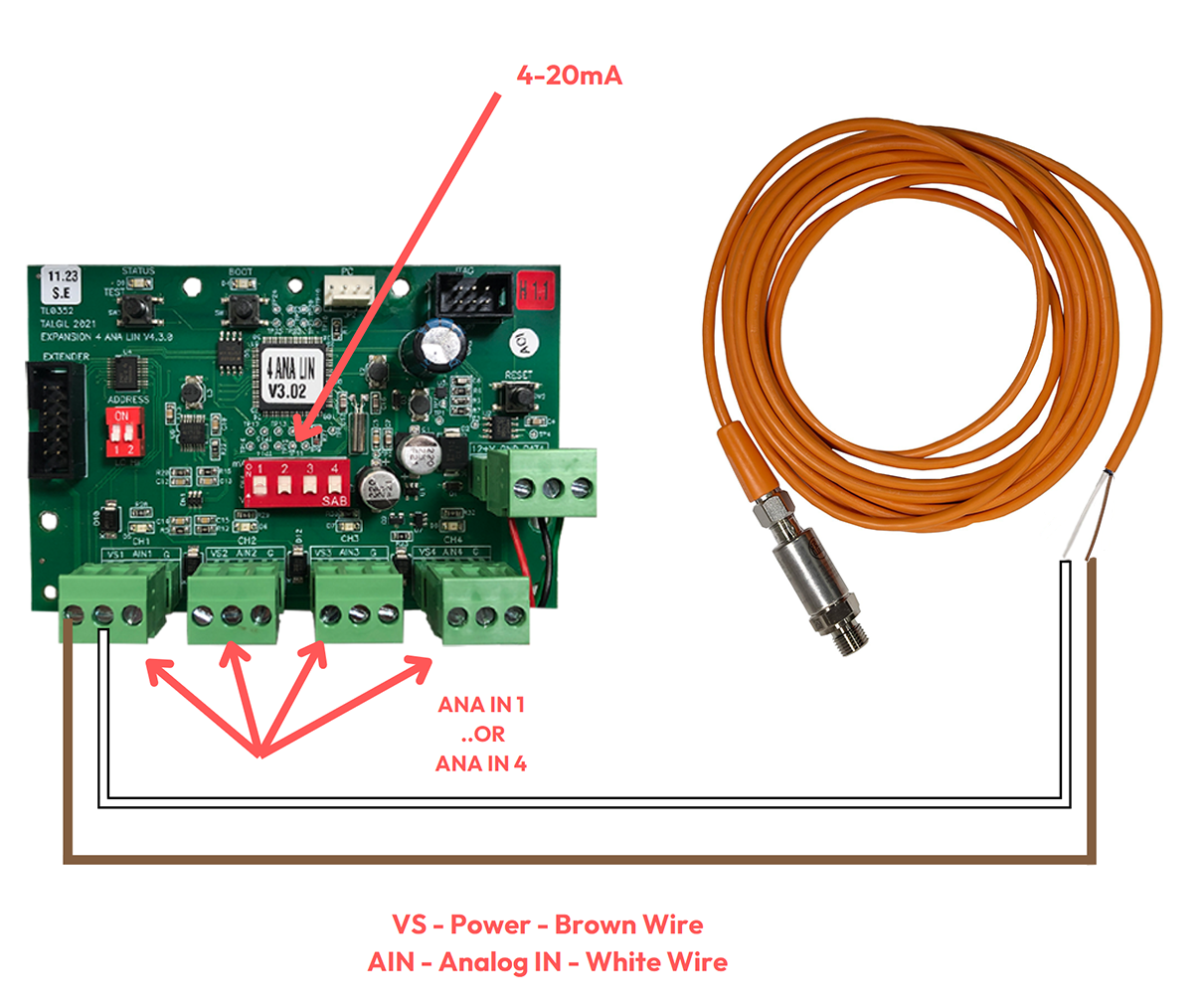

Expansion Module - 4 ANA LIN for RTU RF G5 MODULAR

RTU RF G5 4ANA IN - Stand alone 4 ANA RF RTU

Electrical data

Operating voltage [V]: 8.5...36 DC
Min. insulation resistance [MΩ]: 100; (500 V DC)
Reverse polarity protection: Yes

Power-on delay time [s]: < 0.1

Outputs

Total number of outputs: 1

Output signal: analogue signal
Number of analogue outputs: 1

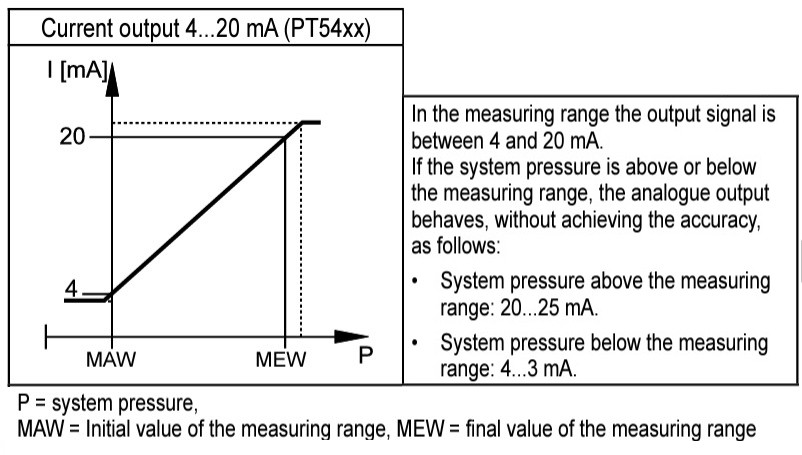

Analogue current output [mA]: 4...20
Max. load [Ω]: (Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 7 20 Ω

Accuracy & Deviations

Repeatability [% of the span]: < ± 0,05; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]: < ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span]: < ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span]: < ± 0,2
Long-term stability [% of the span]: < ± 0,1; (per 6 months)
Temperature coefficient zero point and span [% of the span / 10 K]: < 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C)

Operating conditions

Ambient temperature [°C]: -40...90
Storage temperature [°C]: -40...100
Protection: IP 67

Cable Connector

Technical Specifications

Materials: Housing: PVC orange; Sealing: EPDM
Material nut: stainless steel (1.4404 / 316L)

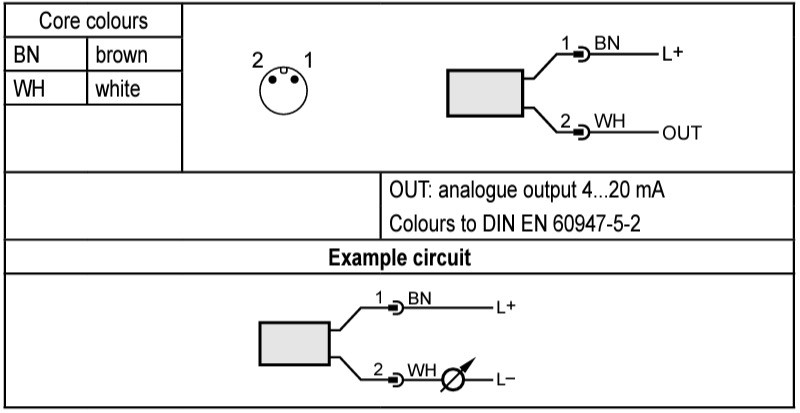

Electrical connection

Cable: 5 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
