| Brand: | Zurn Wilkins |
| Category: | Backflow Prevention, 700 Series |
| Size Range: | 20, 25mm |
| Connection: | Threaded Female BSPT |
Product Description
The Zurn Wilkins 700 Dual Check Valve Assembly protects against back siphonage and back pressure of polluted water. The 700 is suitable for low-hazard applications.
Features
- Max. Working Water Pressure: 1200kPa
- Max. Working Temperature: 82°C
Standards Compliance
- Australian Watermark (AS/NZS 2845.1) Approved Lic. 1379
Technical Data
Flow characteristics

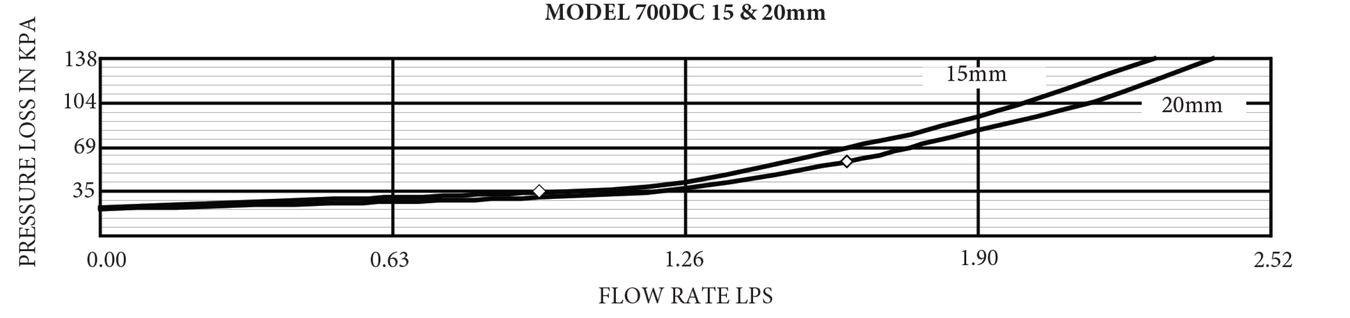

Model 700 DC 15 & 20mm
Zurn Wilkins - 700 Series - Flow Characteristics - Model 700 DC 15 & 20mm

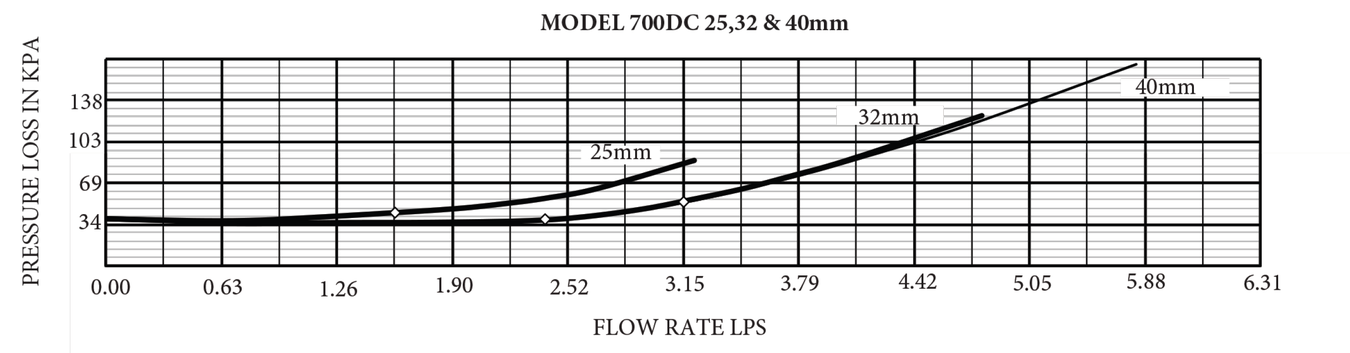

Model 700 DC 25,32 & 40mm
Zurn Wilkins - 700 Series - Flow Characteristics - Model 700 DC 25,32 & 40mm
Materials
Main Valve Body: Cast Bronze
Elastomers: Buna Nitrile
Polymers: NORYL, Delrin
Springs: Stainless Steel
Dimensions and Weights
Technical Specifications
- Designed for installation on water lines.
- Protects against both back siphonage and back pressure of polluted water into the potable water supply - Provides protection where a potential health hazard does exist.
- Installation should be governed by local codes.
- The check valve should be installed so that no part of the unit can be submerged.

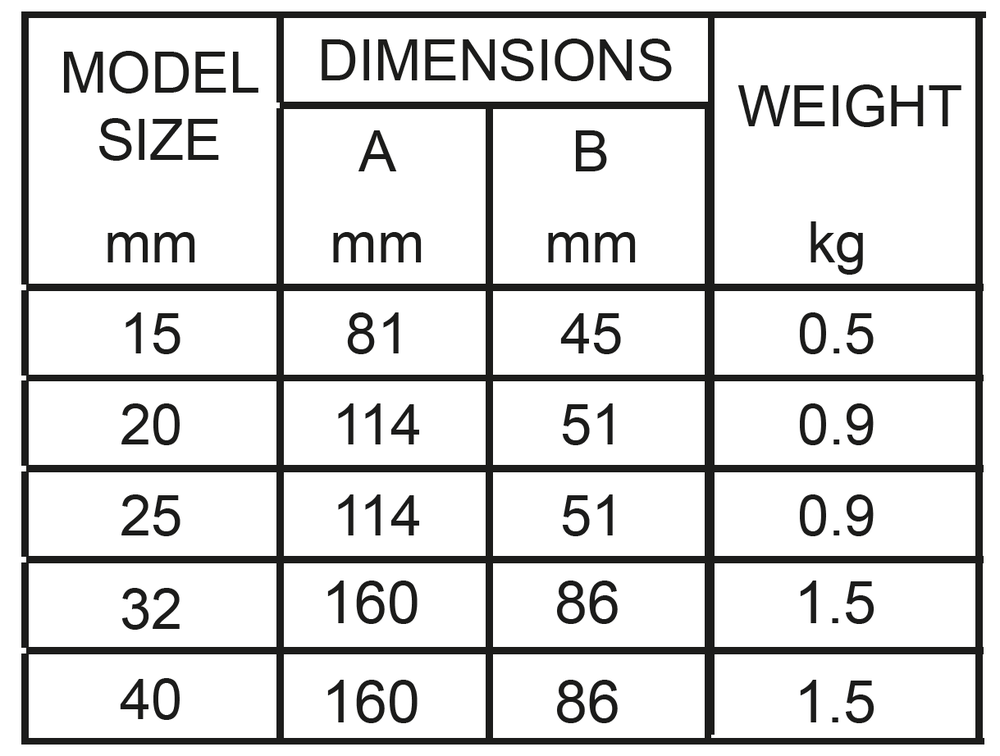

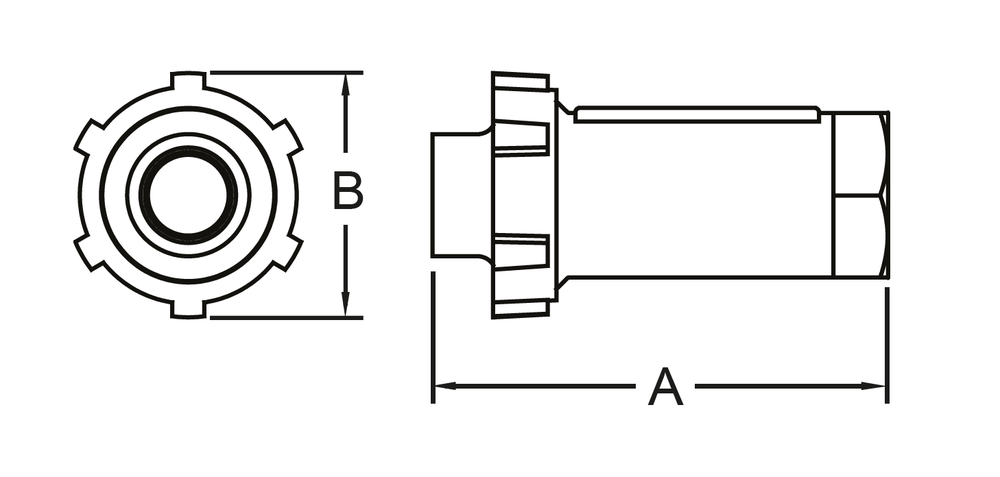

Dimensions and Weights
Zurn Wilkins - 700 Series - Dual Check Valve
Bronze Body with two in-line poppet checks for vertical or horizontal installation with single union standard on inlet. Compliance with NZS 2845.

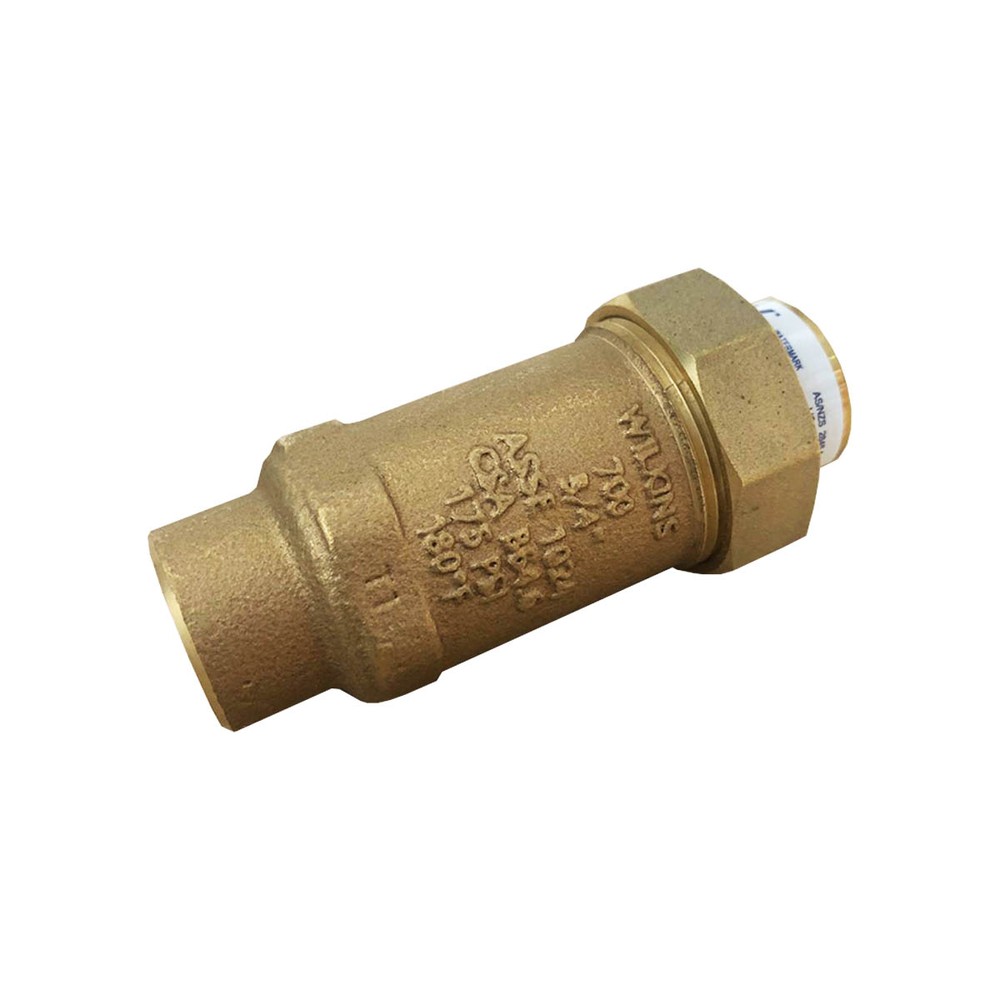

Zurn Wilkins - 34UFx34F

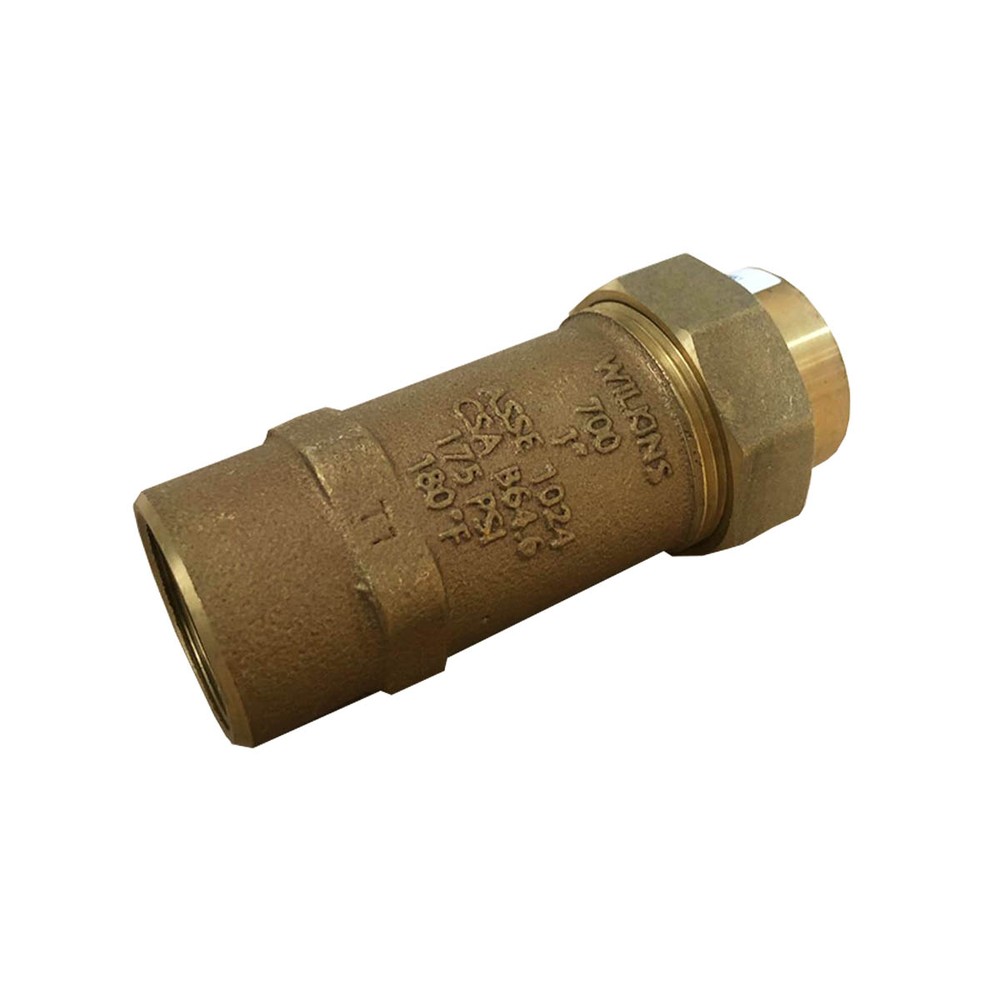

Zurn Wilkins - 1UFx1F
| Product Code | Size | Description |
|---|---|---|
| 34UFx34F | 20mm | Zurn Wilkins Bronze body with two in-line poppet checks for vertical or horizontal installation with single union standrad on inlet - 20mm Threaded Female BSPT |
| 1UFx1F | 25mm | Zurn Wilkins Bronze body with two in-line poppet checks for vertical or horizontal installation with single union standrad on inlet - 25mm Threaded Female BSPT |
