Amiad - AGF Pro - Automatic Media Filter

Amiad - AGF Pro - Product Image
Brand: Amiad / Arkal
Category: Filtration, Automatic Filters - Media
Size Range:

1220mm

Product Description

The advanced all-polymeric AGF Pro is a corrosion-proof media filter with high chemical resistance for a range of industrial water treatment solutions. Its two large service ports make access and maintenance easy and convenient.

The AGF Pro’s specially designed underdrain has 55 diffuser nozzles for maximum cleanability, and it offers an efficient and cost-effective backwash process. No crane is needed to install the lightweight AGF Pro and it comes with detachable support legs for simple storage and economical transportation. Available in various battery configurations.

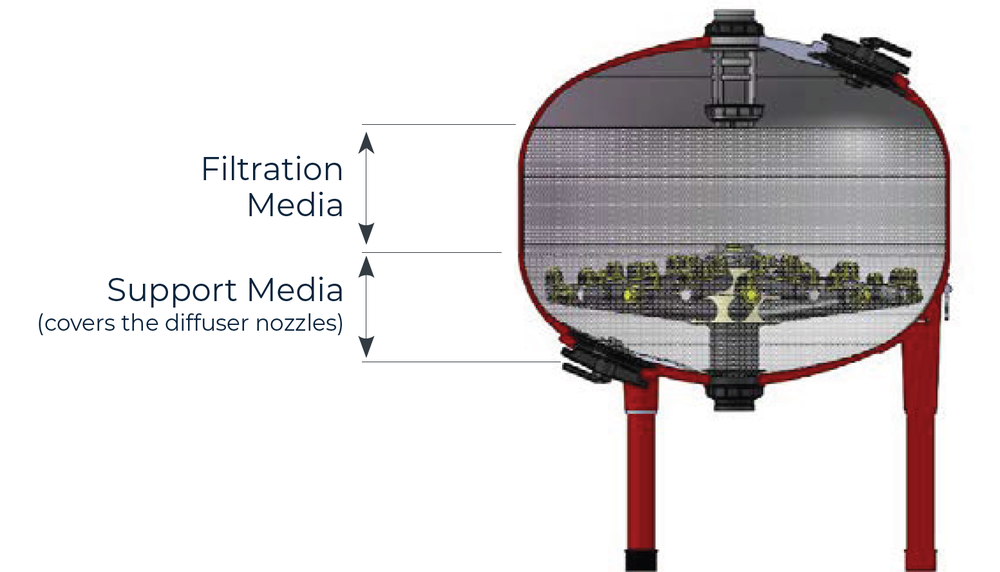

Amiad - AGF Pro - Media

Features & Benefits

  • Superior underdrain system designed with 55 diffuser nozzles.
  • Lightweight for easy installation, no crane required.
  • Two large elliptical access ports for easy inspection and media loading
  • constructed with special synthetic materials.
  • Effective and economic backwash
  • corrosion-proof and high chemical resistance

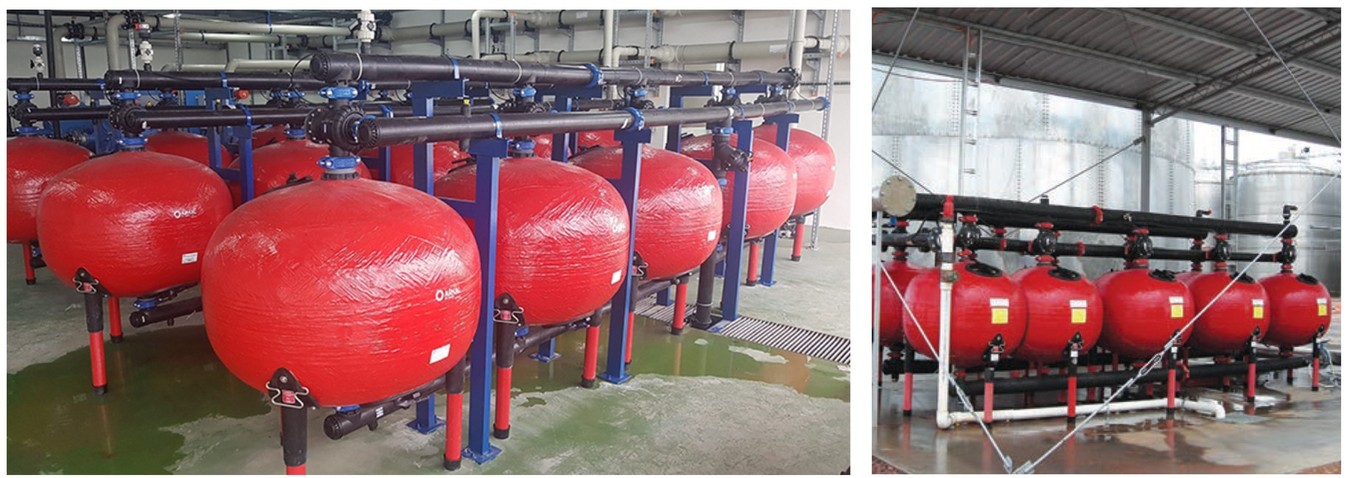

Amiad - AGF Pro - Typical Installations

Amiad - AGF Pro - Typical Installations

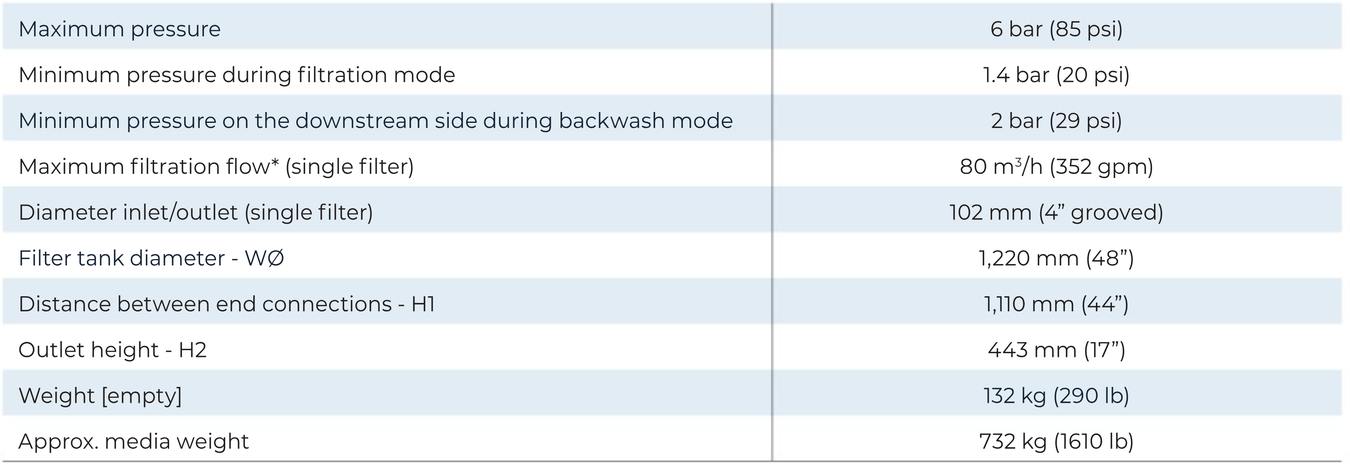

Technical Data

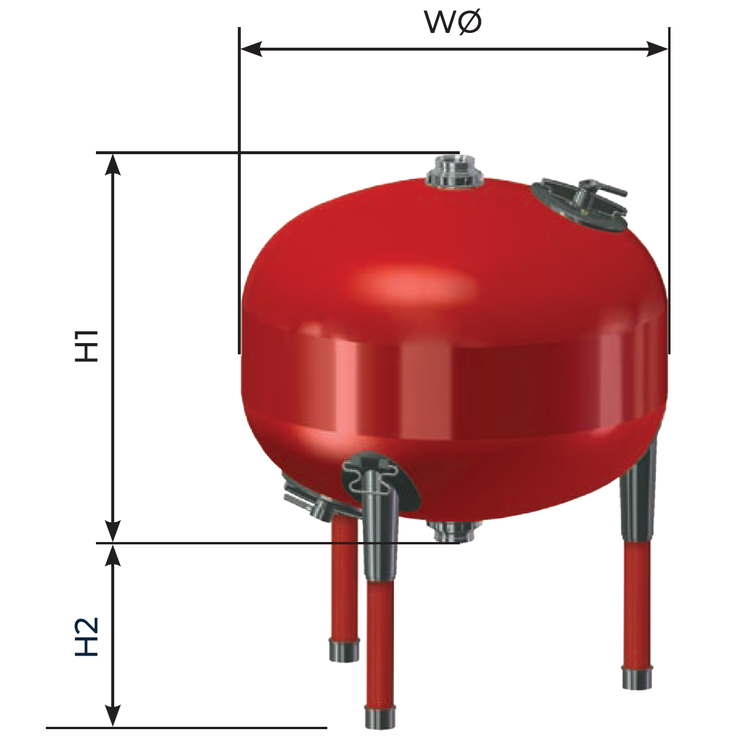

Amiad - AGF Pro - Technical Data Image
Amiad - AGF Pro - Technical Data

* Depending on type of media used

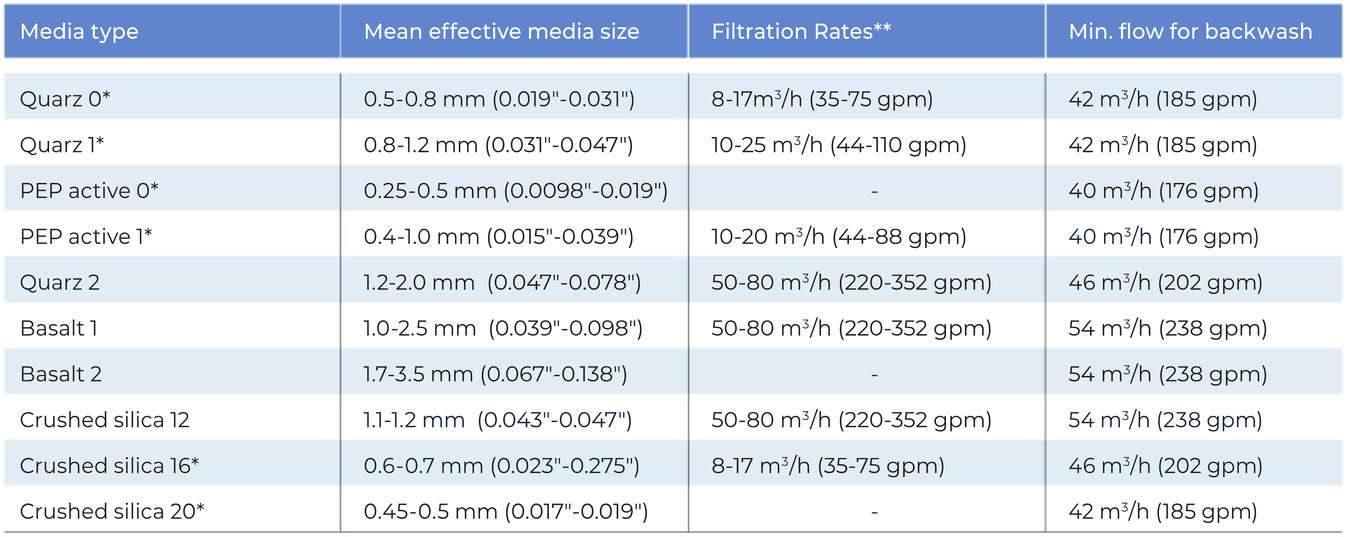

Filtration Media Data

Amiad - AGF Pro - Filtration Media Data

Amiad - AGF Pro - Filtration Media Data

* Requires Quartz 2 as a support layer

**Consult Deeco for optimum flow depending on filtration degree and water quality

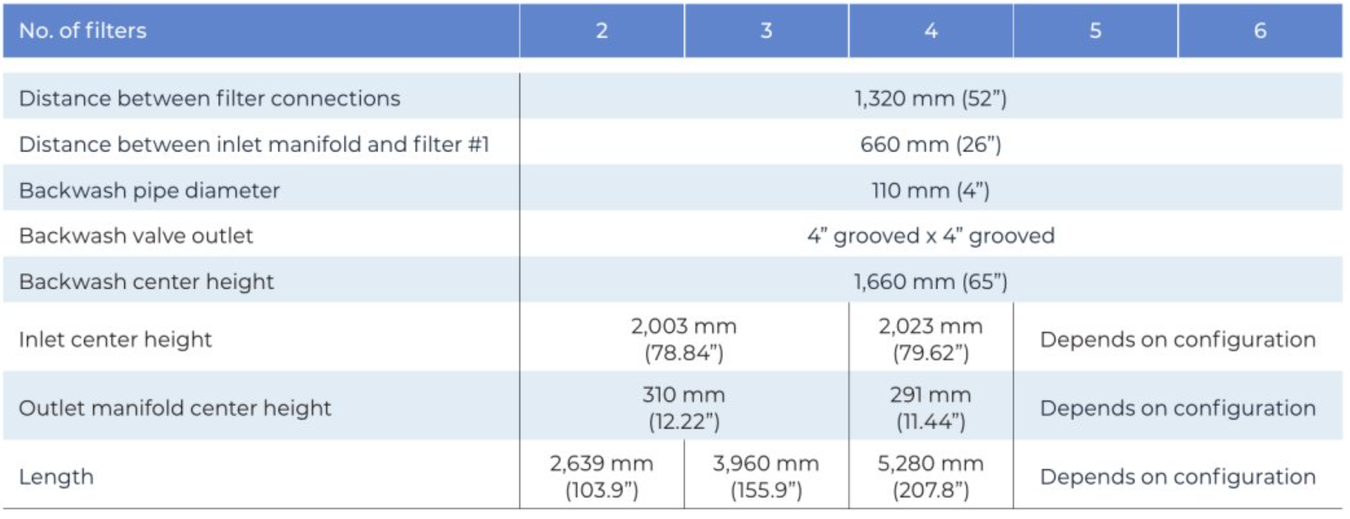

AGF Pro Battery

Amiad - AGF Pro - AGF Pro Battery

Amiad - AGF Pro - AGF Pro Battery

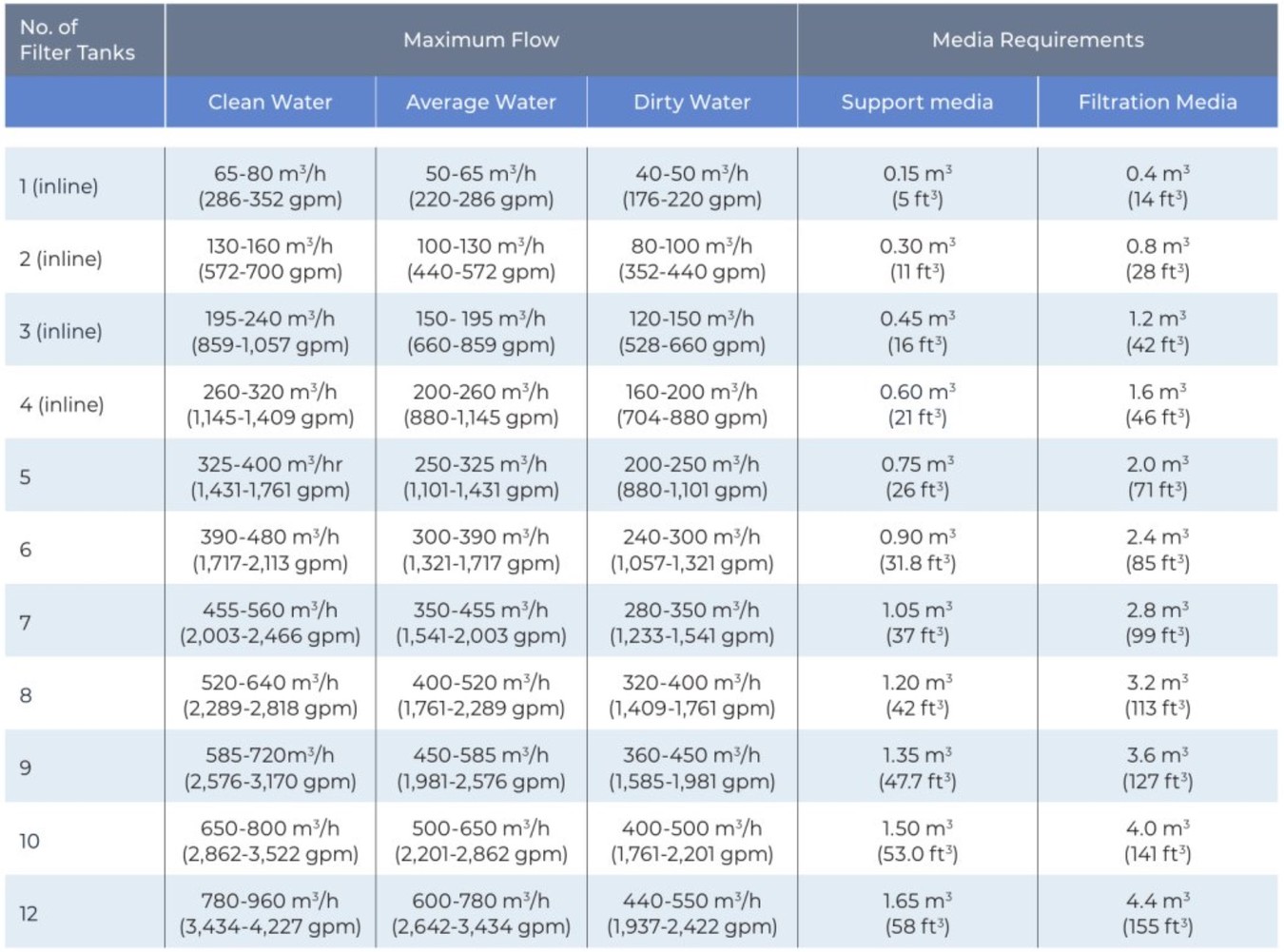

Flow Rates and Media Requirements

Amiad - AGF Pro - Flow Rates and Media Requirements

Amiad - AGF Pro - Flow Rates and Media Requirements

Technical Specifications

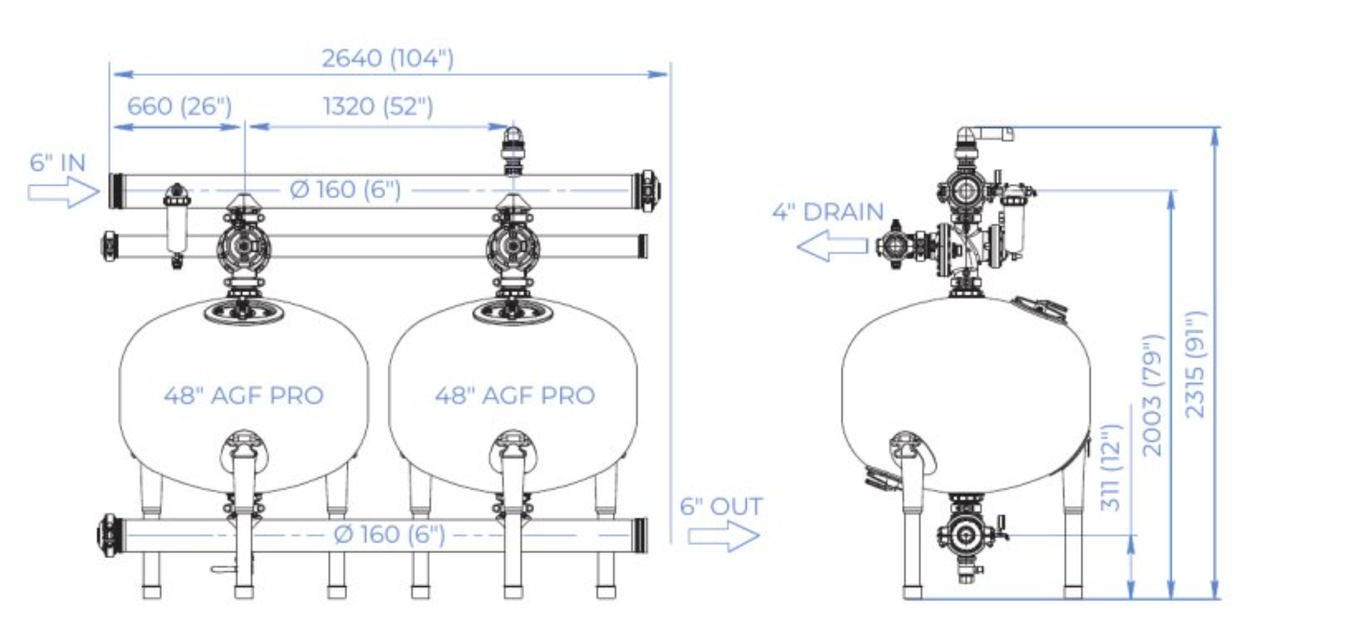

Dimensions and Technical Specifications

Amiad - AGF Pro - Dimensions 1

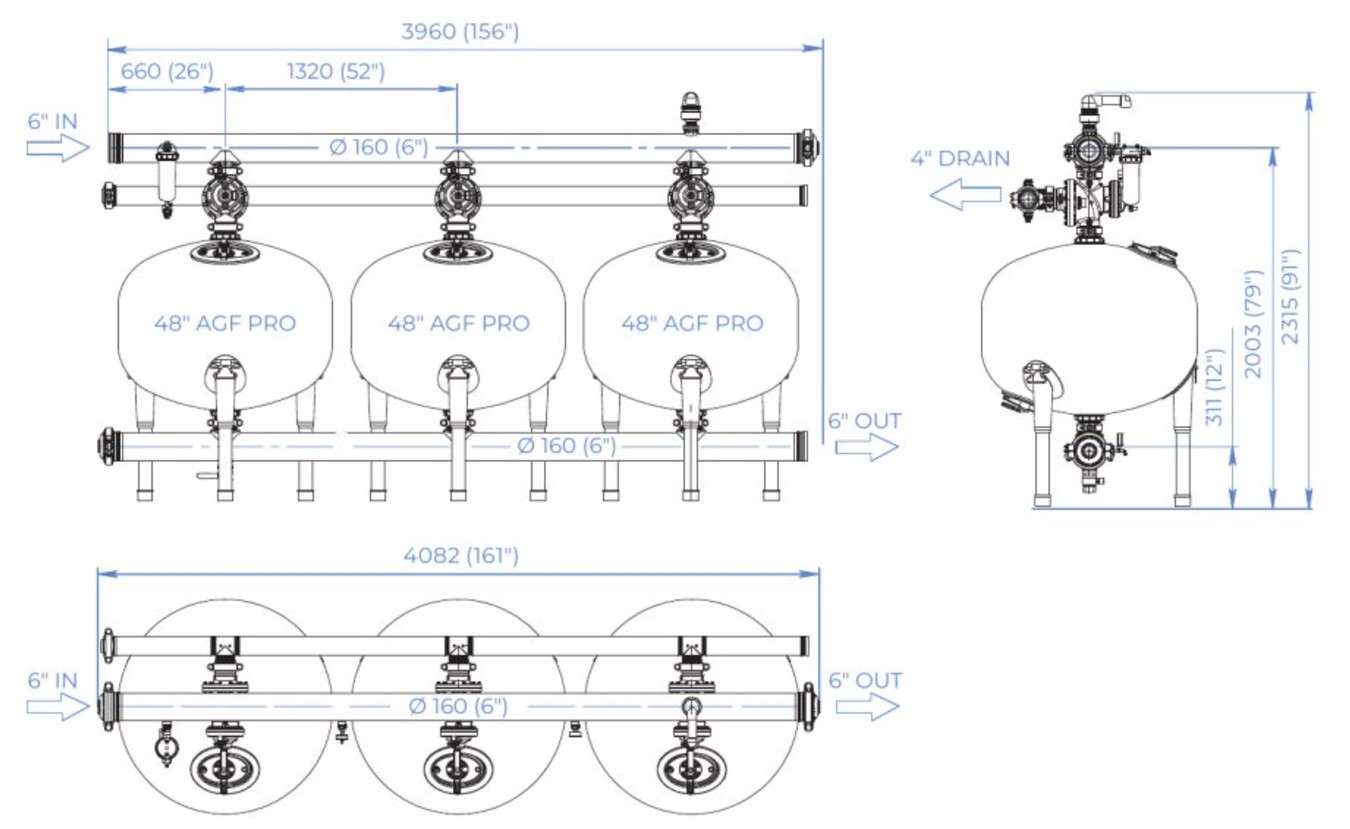

Amiad - AGF Pro - Dimensions 2

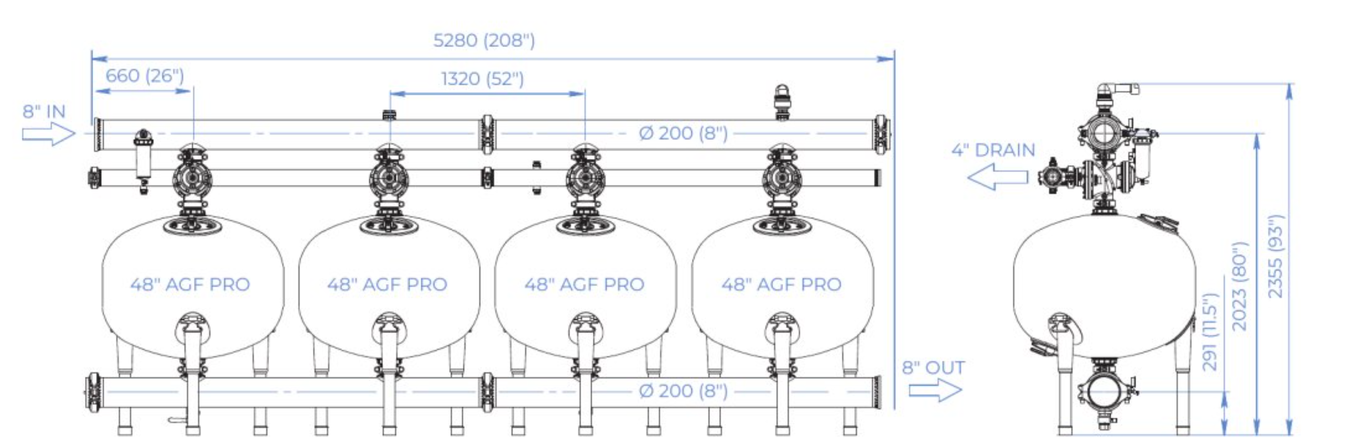

Amiad - AGF Pro - Dimensions 3

Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.

Please contact us for more information.
