| Brand: | Amiad / Arkal |
| Category: | Filtration, Automatic Filters - Microfiber |
| Size Range: | 50-200mm |
| Filtration Degree: | 2-20 micron |
Product Description
The 3D AMF microfiber filter is self-cleaning and provides highly efficient turbidity and solids removal for industrial water treatment solutions. With its unique technology, it is ideal as pre-filtration for membrane systems for industrial, municipal and wastewater applications.
AMF filters provide cartridge filter performance without cartridge filter replacement, and excellent filtration results even down to 2 microns. NSF 61-G drinking water approval is available. Approved technology for Cryptosporidium protection.
Features & Benefits
- Filtration degrees of 2 to 20 microns.
- NF/RO protection
- NSF 61-G approved

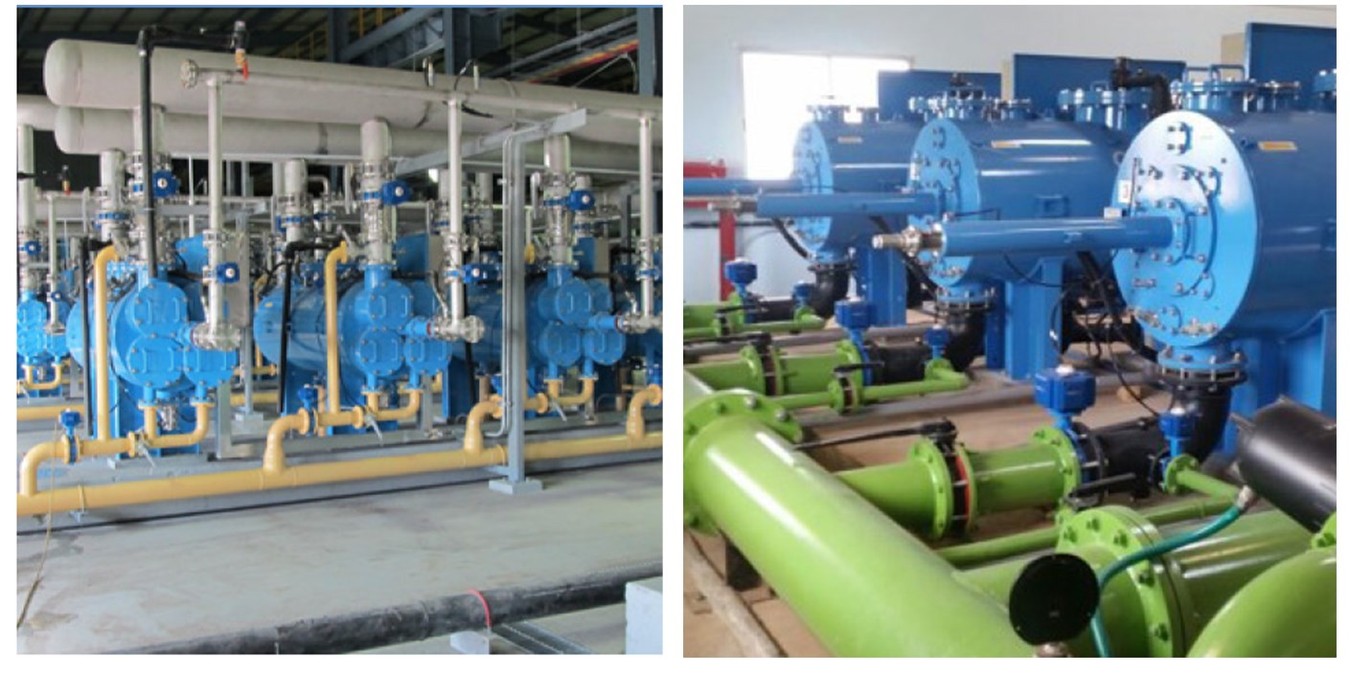

Amiad - AMF - Typical Installation
Technical Data
General Data

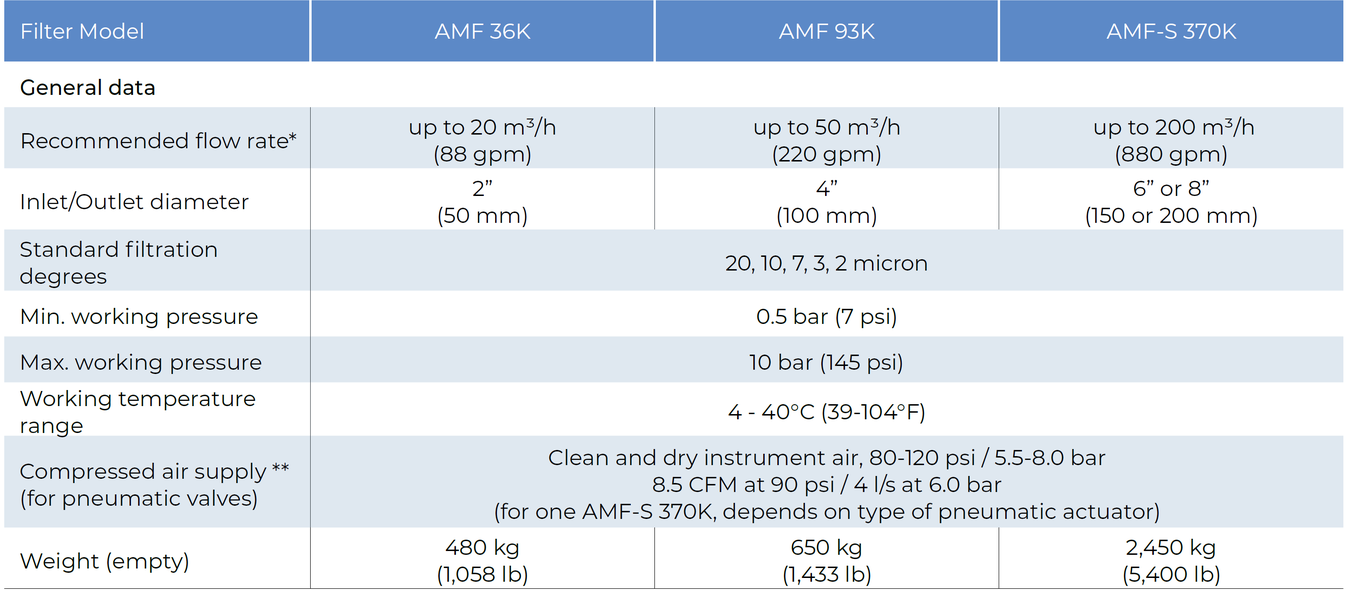

Amiad - AMF - General Data
* Depending on water quality and application - selection to be qualified by Deeco.
** Motorized valves are available upon request.
Flushing data

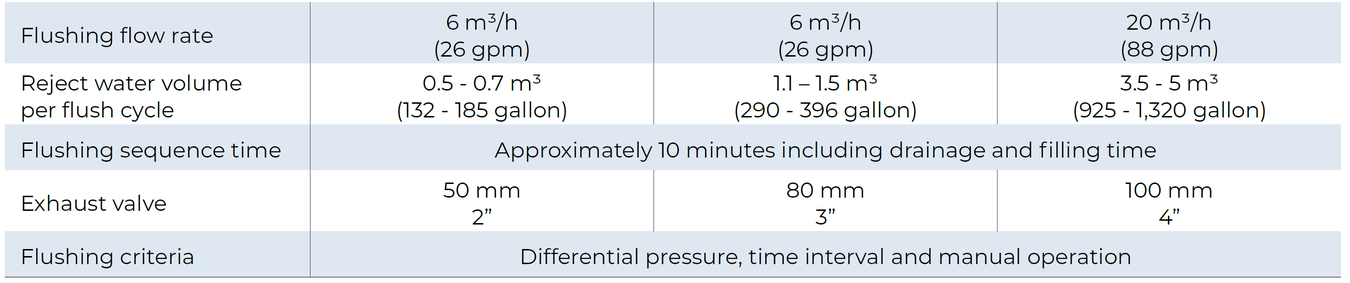

Amiad - AMF - Flushing Data
Filter Element Data
Electronic control
Electronic control
Amiad - AMF - Electronic Data

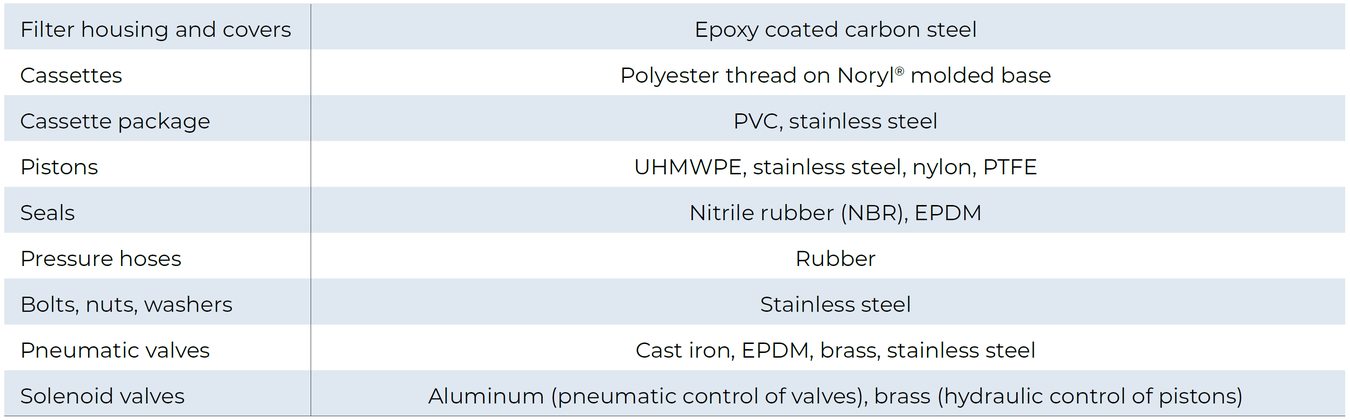

Construction materials*
Amiad - AMF - Construction Materials
* Amiad offers a variety of construction materials. Please contact Deeco for specifications
AMF Models and Head loss Graphs

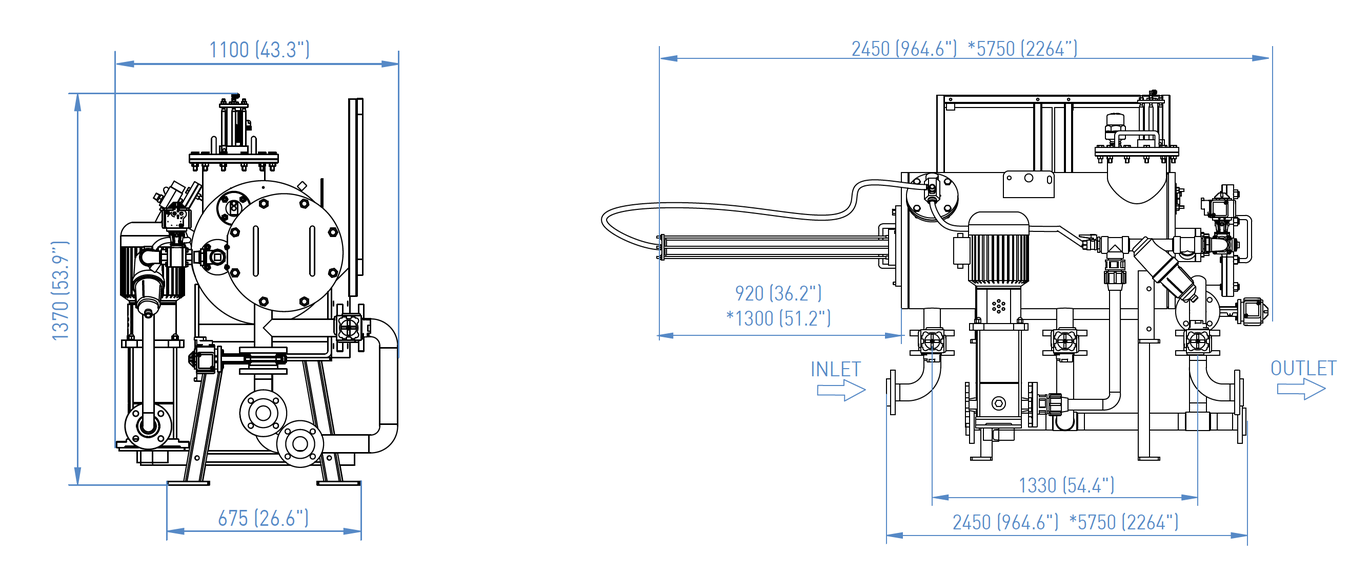

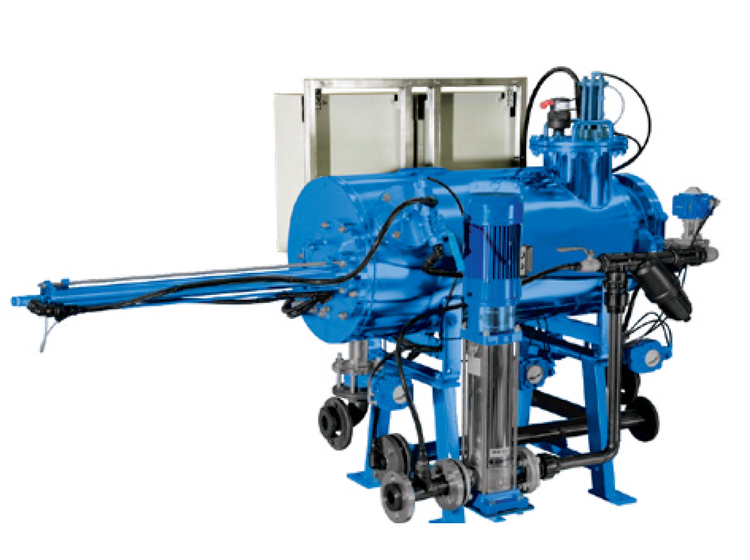

AMF 36K
Head Loss Graph (in clean water)

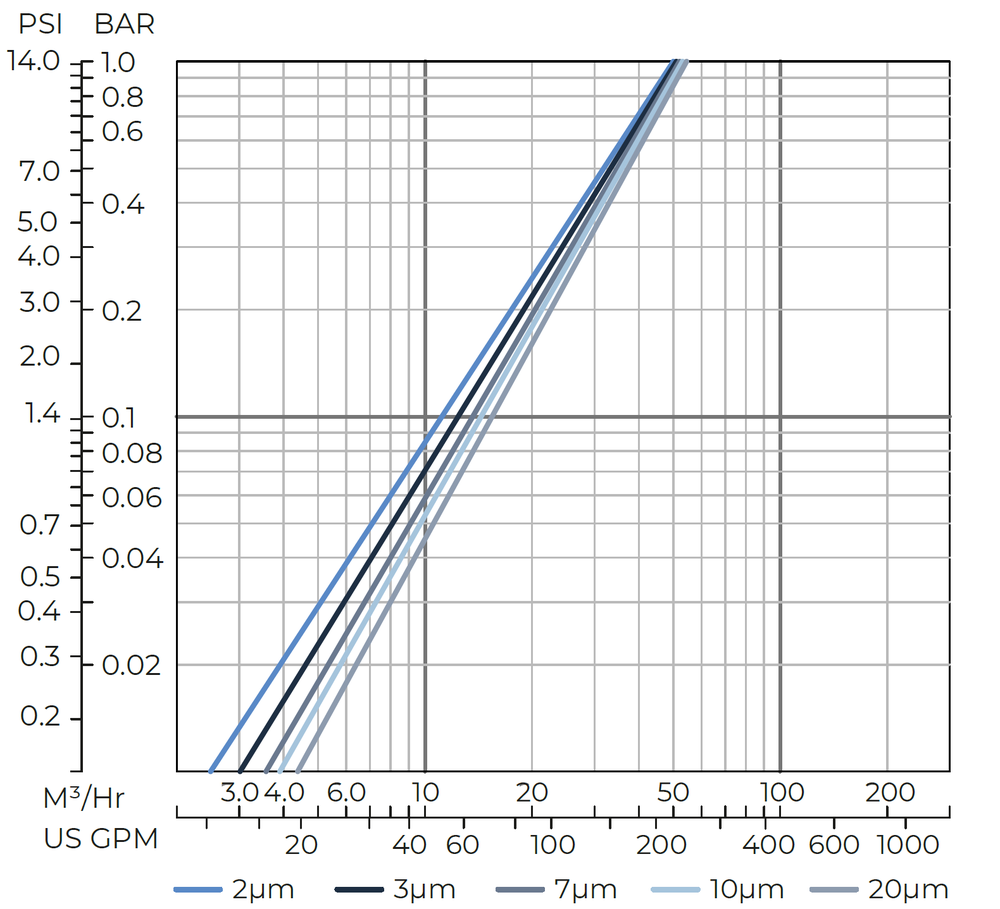

Amiad - AMF - 36K Head Loss Graph

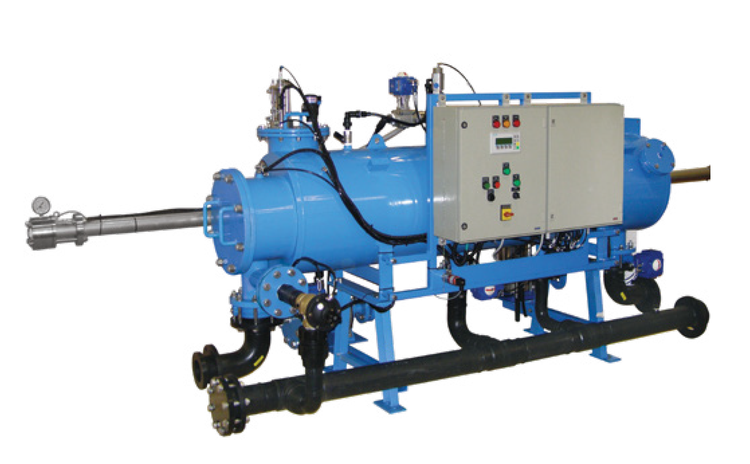

AMF 93K

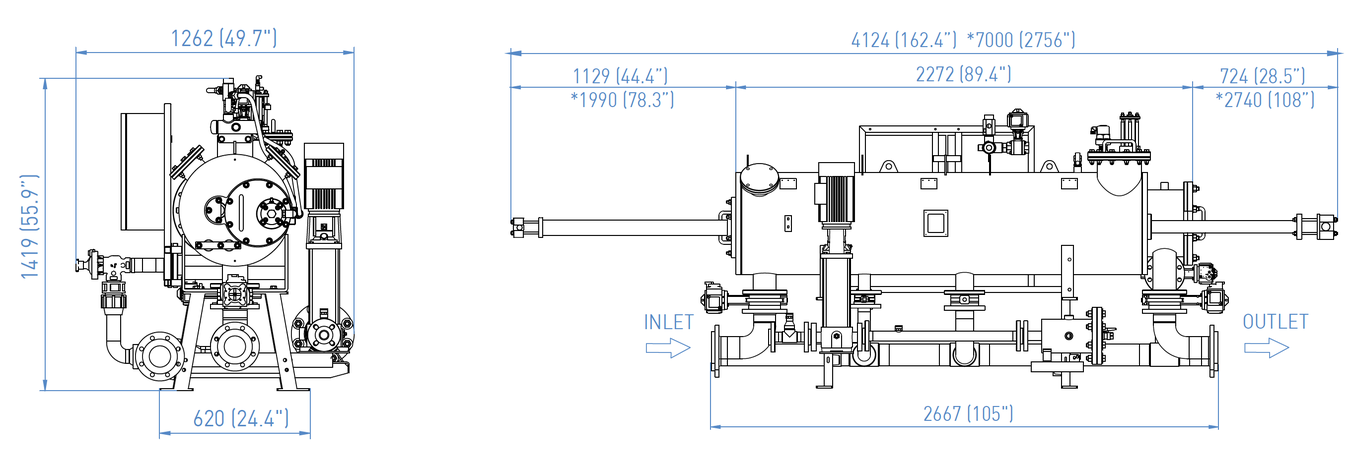

Amiad - AMF - 93K Dimensions

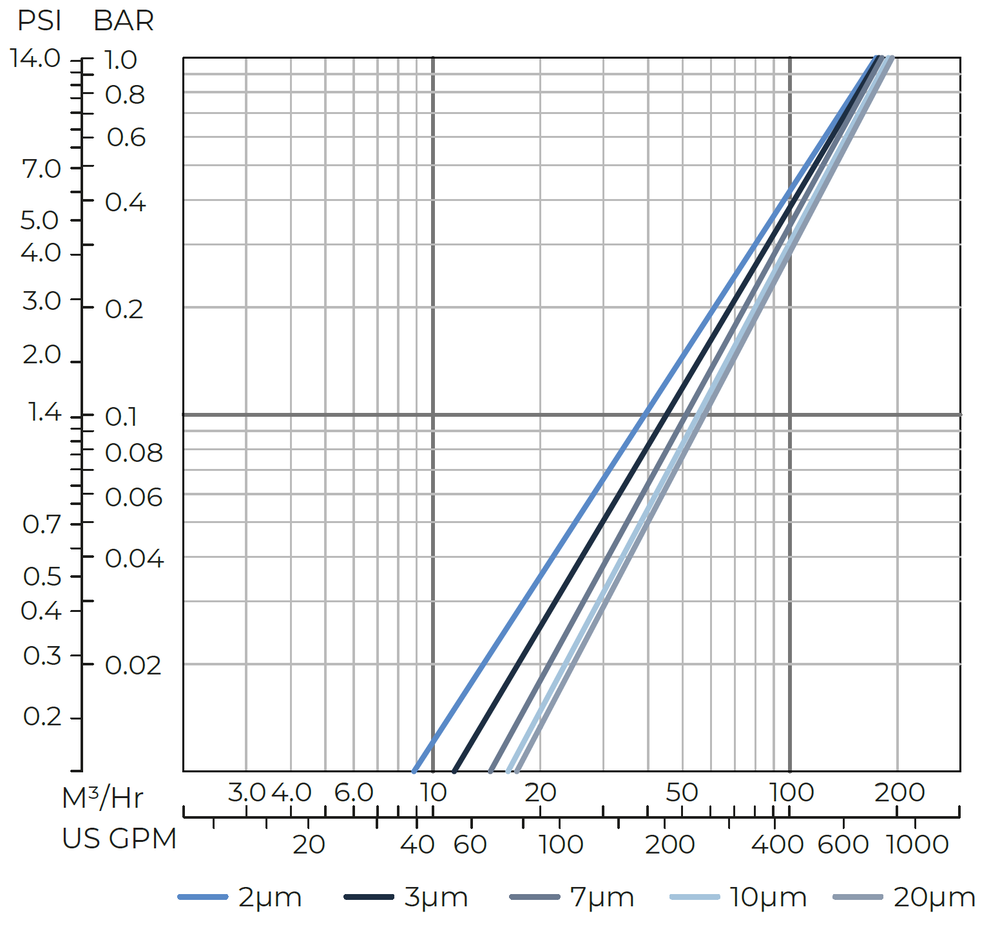

Head Loss Graph (in clean water)
Amiad - AMF - 93K Head Loss Graph

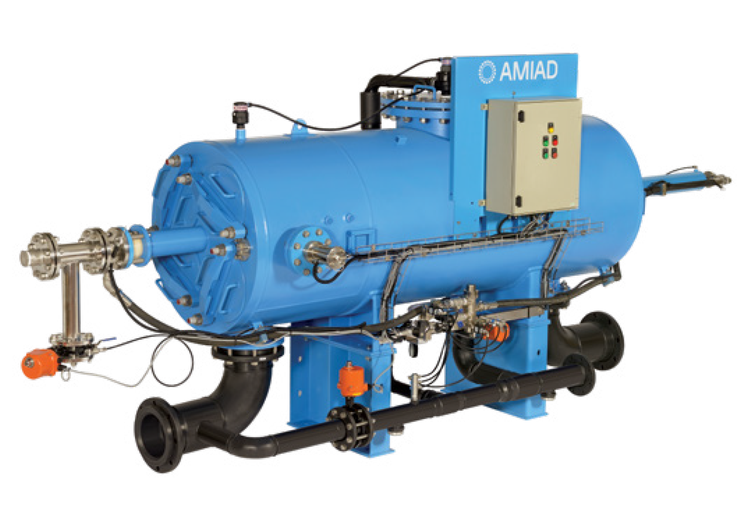

AMF S 370K

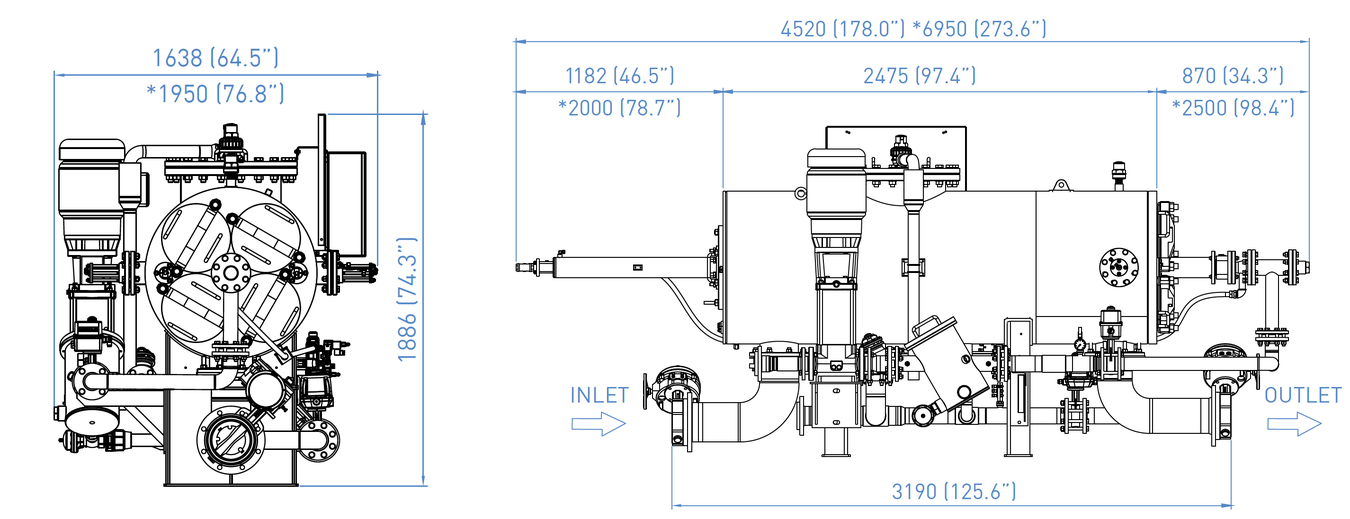

Amiad - AMF - S370K Dimensions

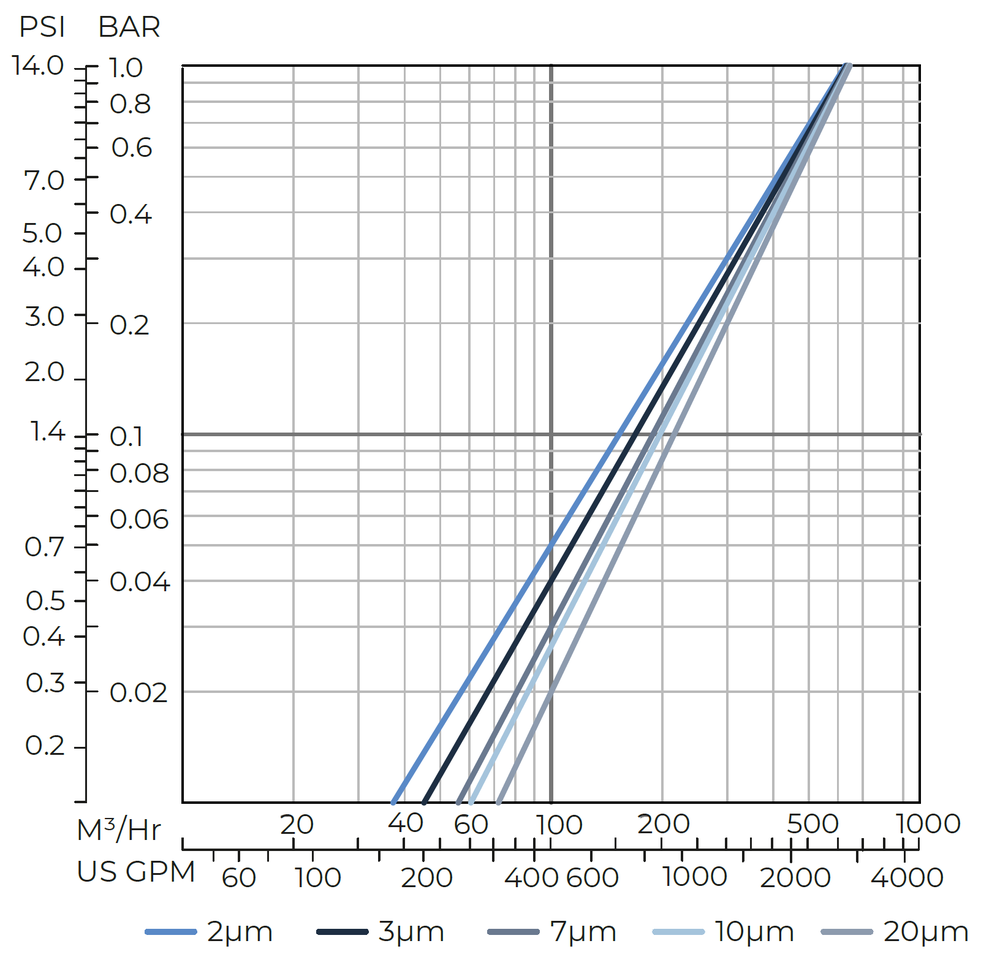

Head Loss Graph (in clean water)
Amiad - AMF - S370K Head Loss Graph
Technical Specifications

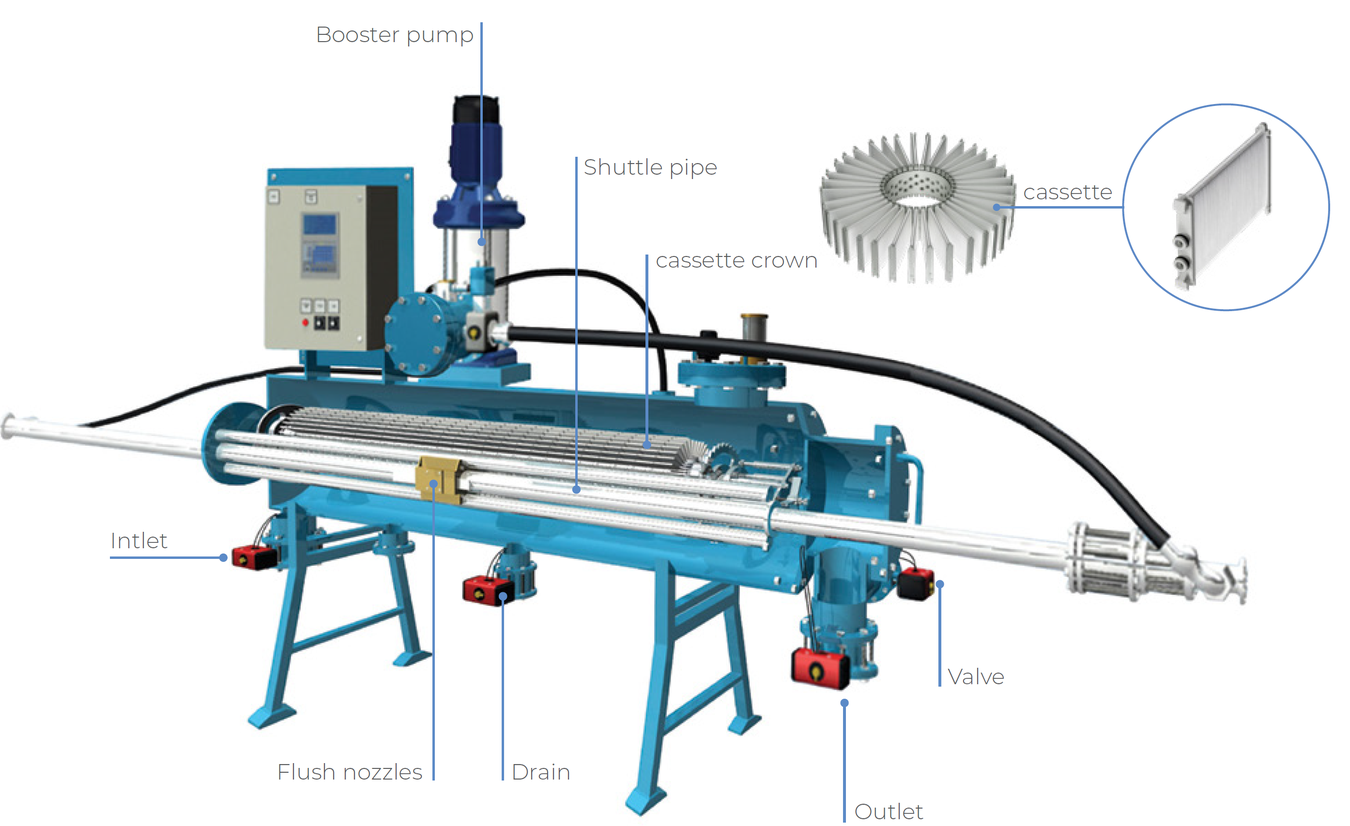

AMF Parts
Amiad - AMF - Parts
Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.
Please contact us for more information.
