Amiad - Filtomat MG - Automatic Screen Filter

Amiad - FiltomatMG - Product Image
Brand: Amiad / Arkal
Category: Filtration, Automatic Filters - Screen
Size Range:

50-250mm

Filtration Degree:

80-500 micron

Product Description

The Filtomat is a hydraulic self-cleaning screen filter, controlled by the new generation, advanced ADI-P controller. It is ideal for remote industrial installation sites, with a water-driven self-cleaning system that doesn’t require an external power source for operation. The perfect solution for industrial filtration requirements.

The Filtomat’s simple construction requires minimal and easy maintenance and has a reliable operation mechanism. There is no interruption of downstream flow during automatic flushing according to pressure differential.

Features and Benefits

  • Easy maintenance - disassembles in only 5 parts.
  • Simple construction
  • Reliable and durable
  • Automatic flushing according to pressure differential or set time.
  • Designed for industrial filtration needs.
  • No interruption of downstream flow during flushing

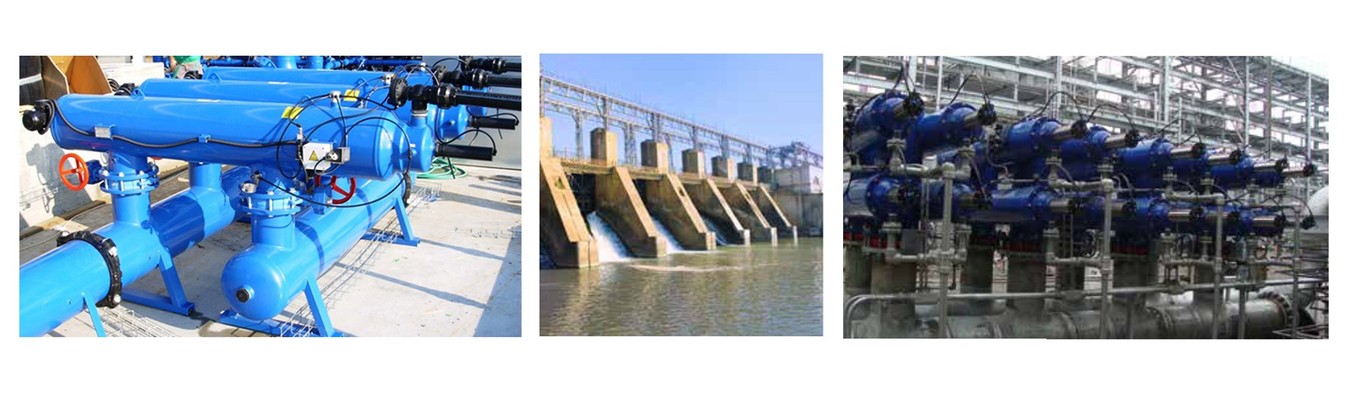

Amiad - FiltomatMG - Features and Benefits

Amiad - FiltomatMG - Typical Installations

Additional Features & Accessories

The ADI-P Controller

The ADI-P Controller operates the automated processes that flush your Mini Sigma filters, allowing you to control and monitor them easily and conveniently.

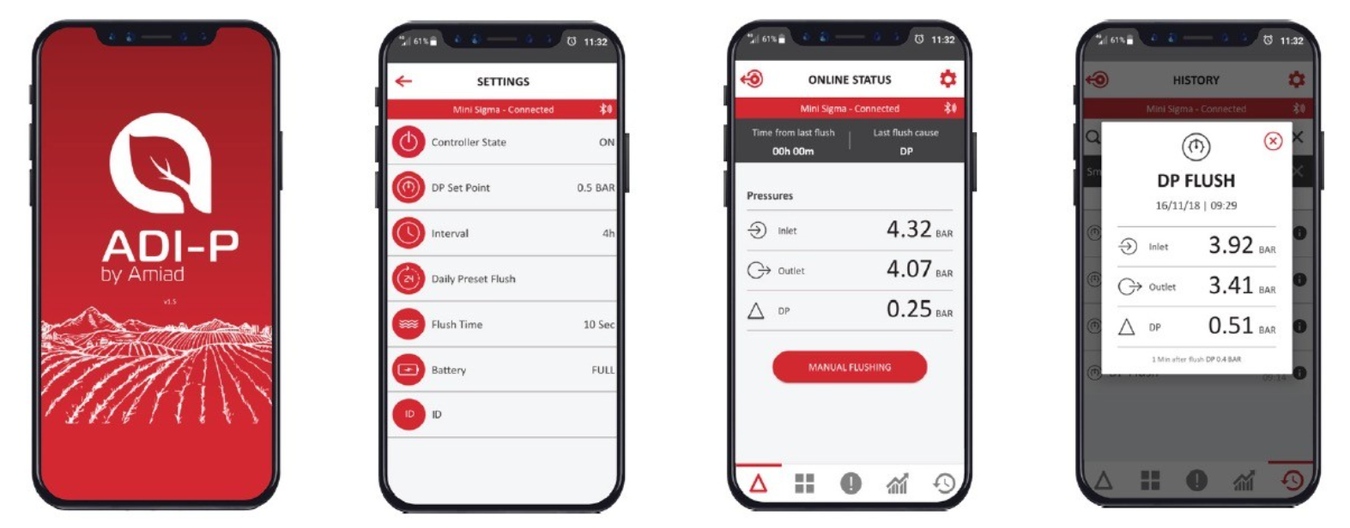

The ADI-P App

Access your site’s filtration performance data directly from the ADI-P app.

Here are some of the data that you can access via the ADI-P app:

  • Flush logs
  • Flush frequency
  • Current DP
  • Current outlet and inlet pressure
  • Flush quality - measuring DP on the filter before and after the flush cycle
  • Malfunctions with descriptions of each event
  • Battery status and low battery alerts
Amiad - Filtomat - Additional Features and Benefits

Amiad - FiltomatMG - Additional Features and Benefits

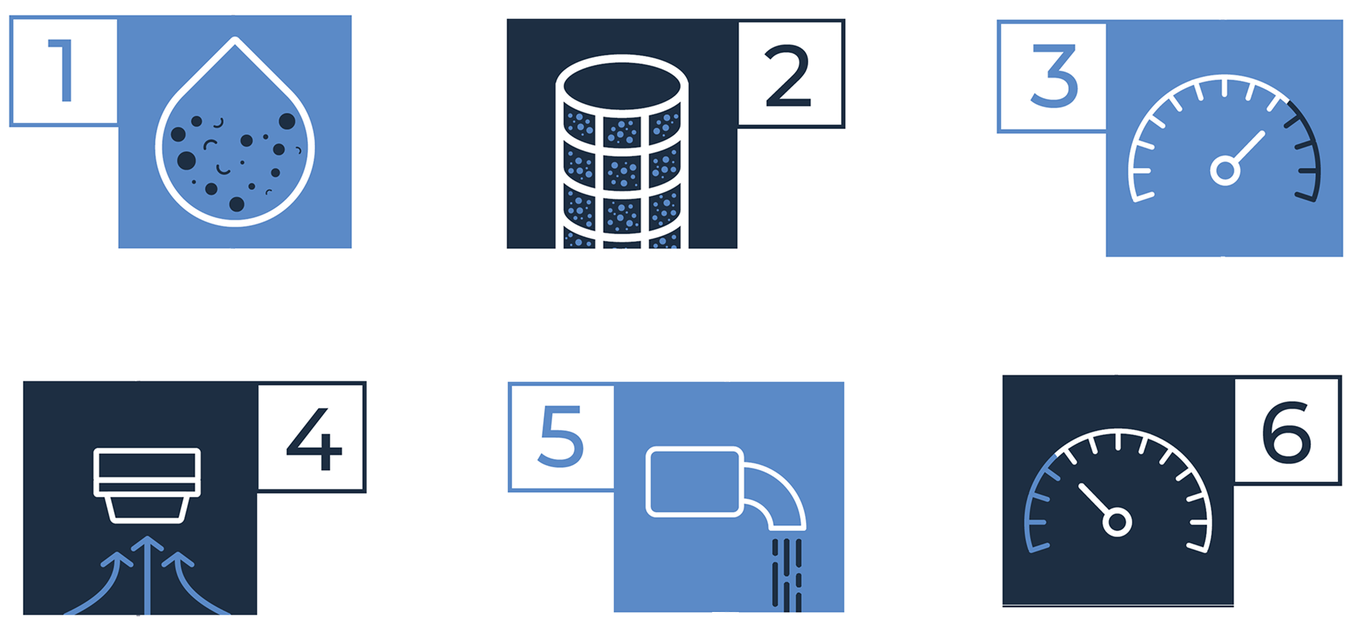

The Filtration Process

Amiad - Filtomat - Filtration Process

1- Raw water flows through the filter inlet and to the coarse screen for the removal of large debris and sediment.

2- Water then passes through the fine screen for removal of the remaining small particles.

3- A differential pressure switch (DPS) monitors the pressure caused by the accumulation of debris on the inner screen and initiates the self-cleaning process at 7 psi (0.5 bar).

4- The flush valve opens to the atmosphere to create a strong suction force at the scanner nozzles, effectively removing dirt particles from the screen.

5- Dirty backflush water is drained out via the drainage pipe.

6- After efficient cleaning, the DP returns to its original value, enabling the filter to operate continuously without downtime.

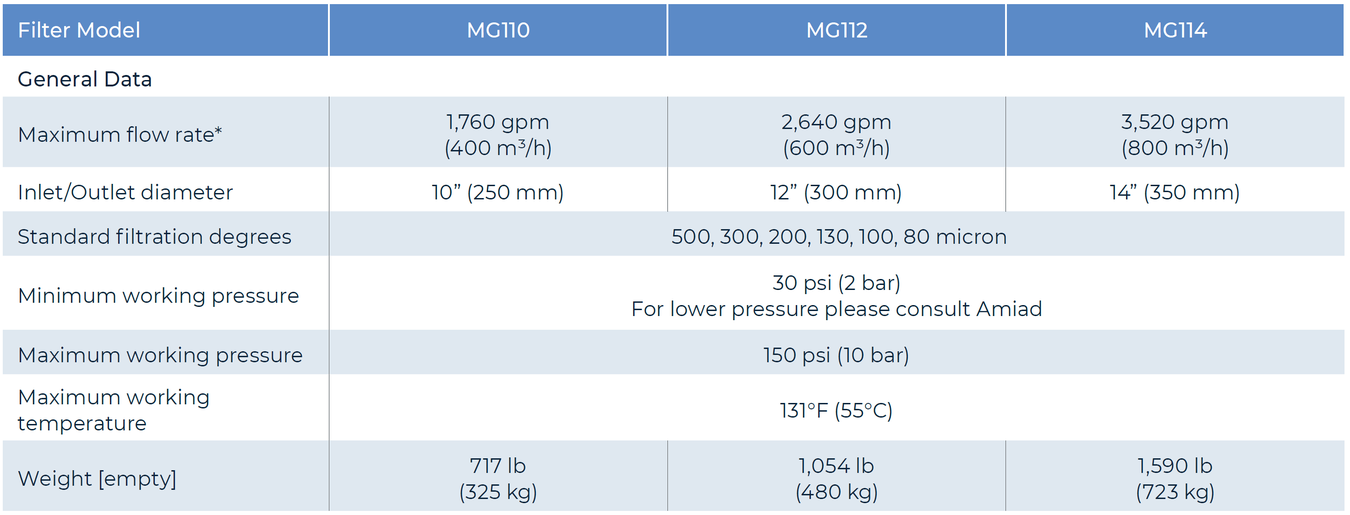

Technical Data

Amiad - FiltomatM100 - General Data

* Consult Deeco for optimum flow depending on filtration degree and water quality.

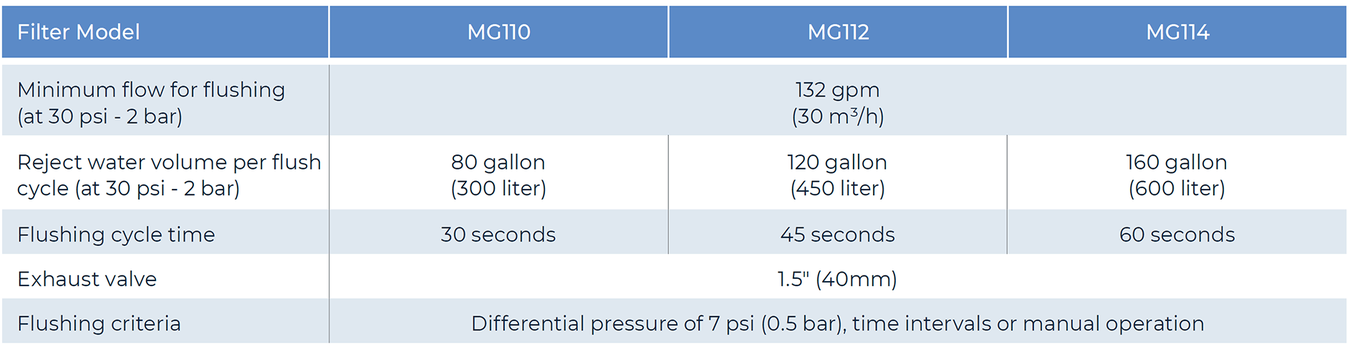

Flushing Data

Amiad - FiltomatM100 - Flushing Data

Amiad - FiltomatM100 - Flushing Data

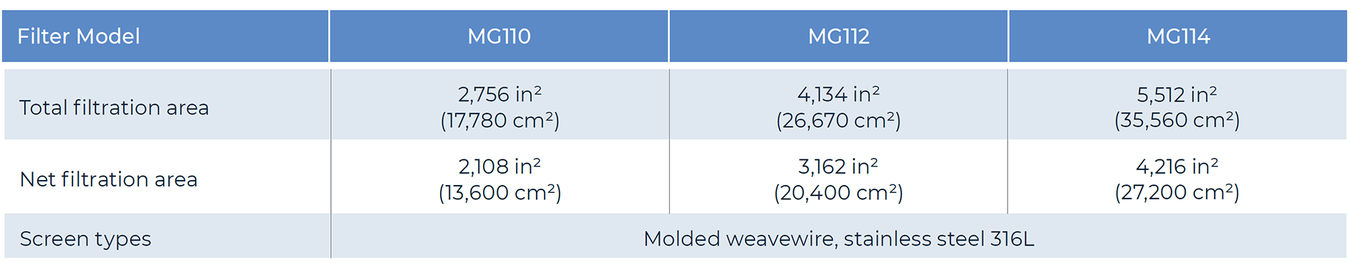

Screen Data

Amiad - FiltomatM100 - Screen Data

Amiad - FiltomatM100 - Screen Data

Filtomat MG Models

Modular configuration, available as stand-alone or as a filter bank assembly, with a single ADI-P electronic control system. Delivered fully assembled and requires a single connection to the inlet, outlet and drain.

  • MG110 (2 x 108LP): ≤ 1,760 gpm (400 m3/h)
  • MG112 (3 x 108LP): ≤ 2,640 gpm (600 m3/h)
  • MG114 (4 x 108LP): ≤ 3,520 gpm (800 m3/h)

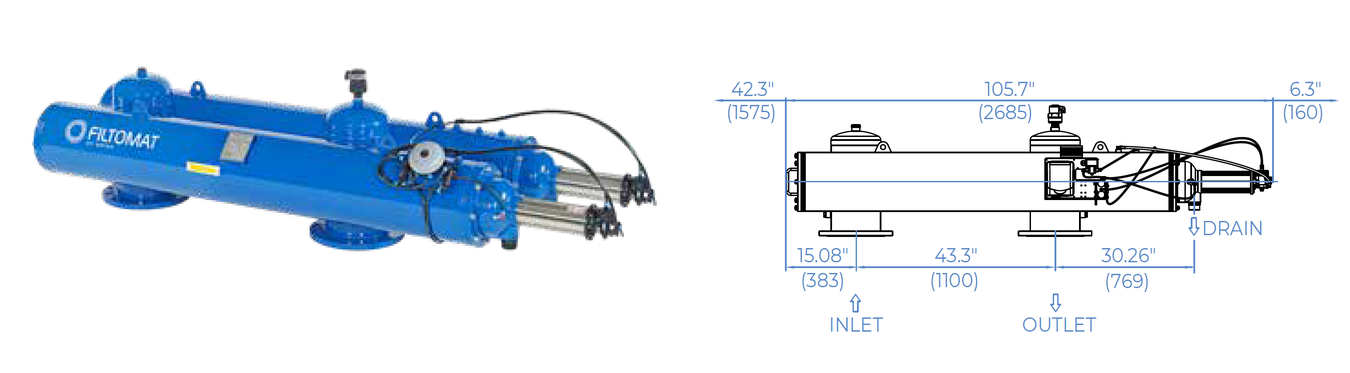

Filtomat MG110

Amiad - FiltomatM100 - MG110 2

Amiad - FiltomatMG - MG110

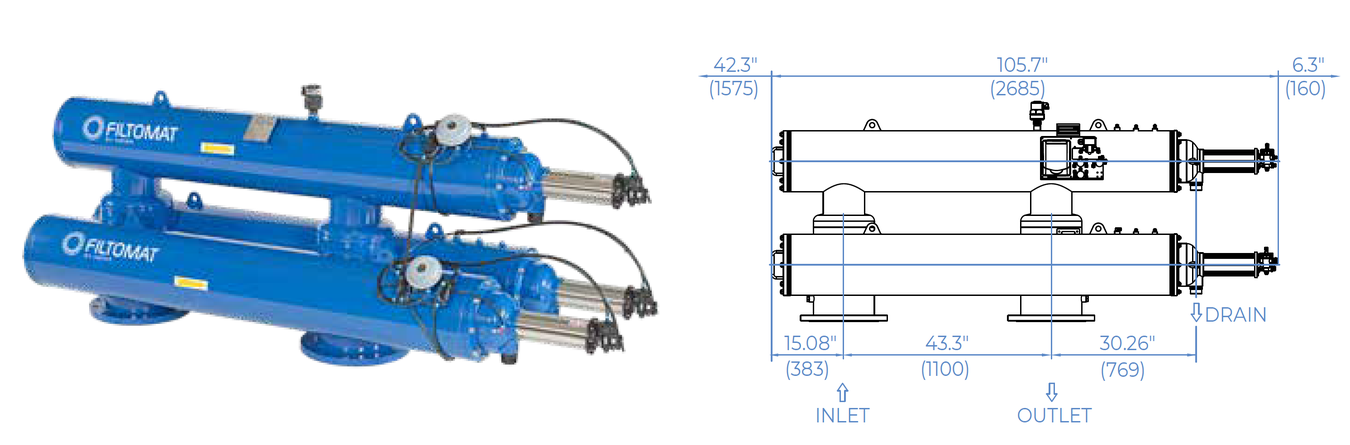

Filtomat MG112

Amiad - FiltomatM100 - MG112

Amiad - FiltomatMG - MG112

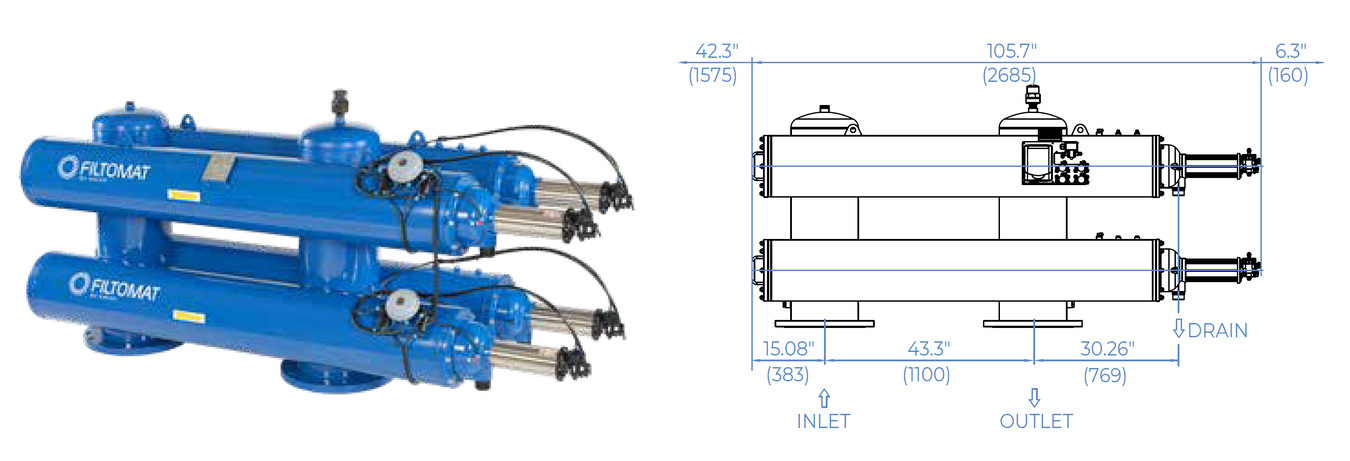

Filtomat MG114

Amiad - FiltomatM100 - MG114

Amiad - FiltomatMG - MG114

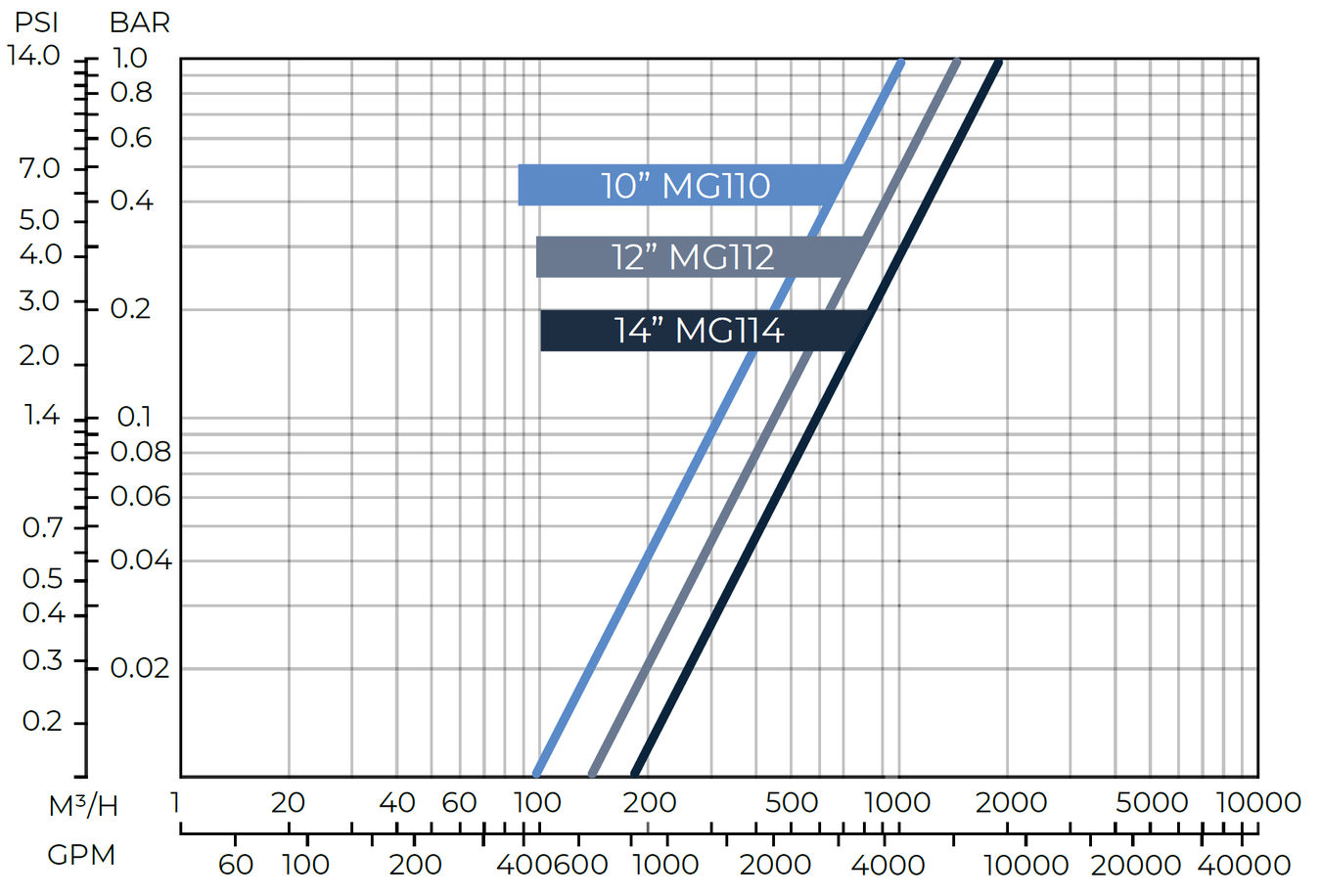

Head Loss Graph (in clean water)

amiad - FiltomatMG - Head Loss Graph

Amiad - FiltomatMG - Head Loss Graph

*Approx. length required for maintenance

Technical Specifications

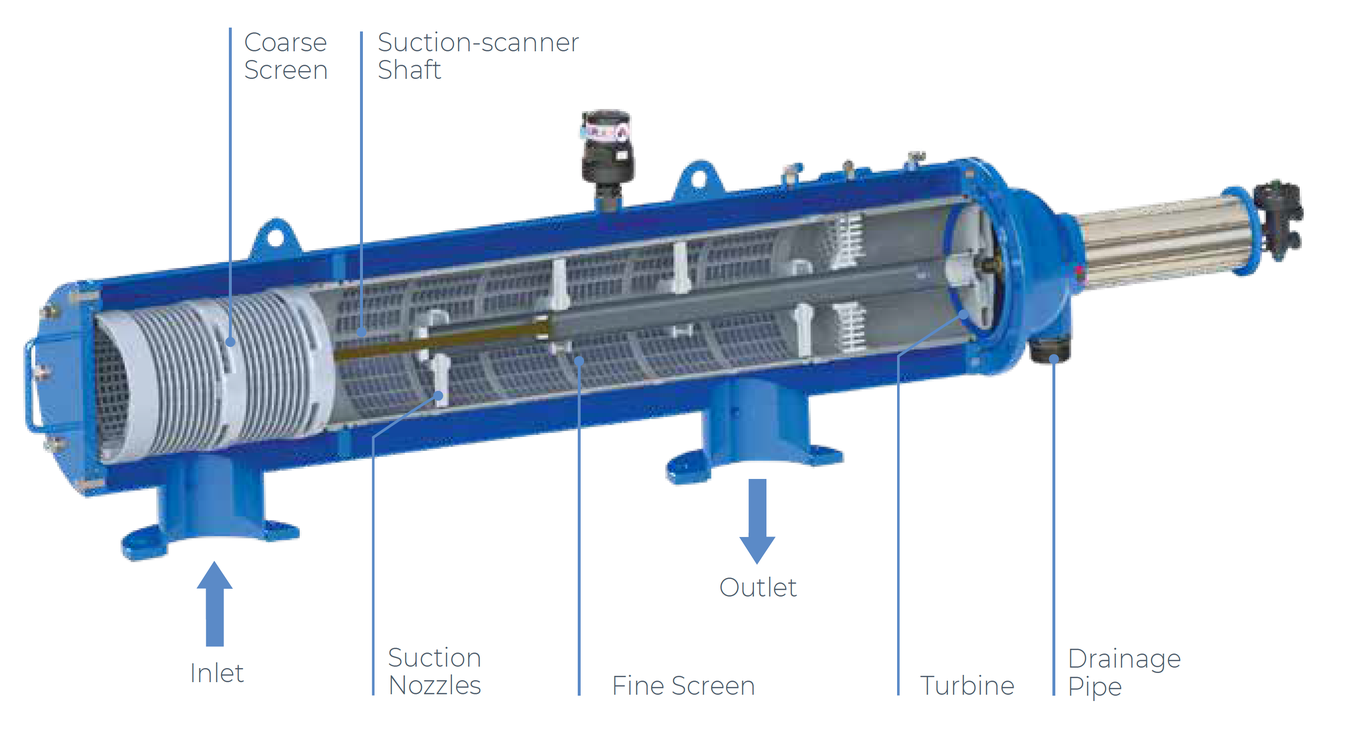

Filtomat MG Cutaway

Amiad - FiltomatMG - Cutaway

Amiad - FiltomatMG - Cutaway

Spare Parts

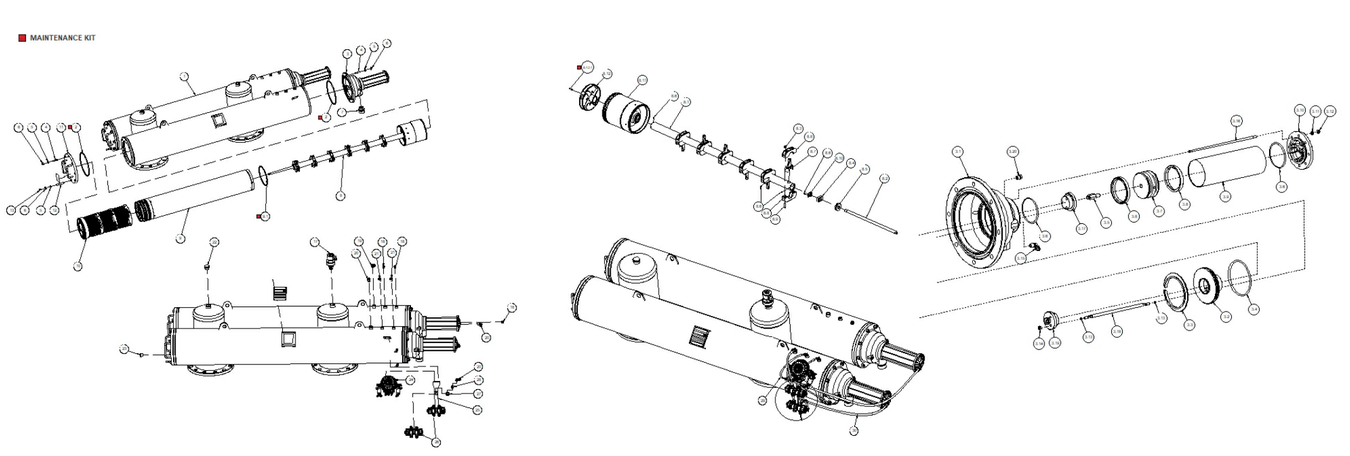

FiltomatMG110
Pos. Part No. Description Qty
1 710105-MG110 MG110-P Filter Housing (2x108LP) RAL5010 PLOYESTER - By Demand 1
2 770102-000174 PARKER O-RING 2-448 NBR 70 SHORE 4
3 700190-001541 COVER ASSY CAST-IRON W/PIS AND VALVE PISTON MOD 2
3.1 710103-000799 PLUG PISTON M104/6LP RPA M10X(L)(P) 2
3.1 710103-000819 M100 COVER PMPM 5010 CAST-IRON POLYESTER 2
3.11 760103-000094 FLAT WASHER M6 DIN125 S/ST316 16
3.12 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 16
3.13 770102-000058 PARKER O-RING 2-009 NBR 70 SHORE 20
3.14 760102-000078 HEX NUT 1/4"UNC S/ST316 B18.2.2 10
3.15 720501-000908 L-CONNECTOR 1/4"M X8MM BSPT RPP RED-BLUE TEFEN 2
3.16 710103-000903 ROD M104/6LP S/ST303 PISTON COVER ASSEMBLY 16
3.17 710104-000039 M104/6LP VALVE SEAT BRASS NR 2
3.18 710103-000895 SPACER BOLT VALVE M104/6LP S/ST303 PISTON COVER ASSEMBLY 6
3.19 710104-000040 M104/6LP VALVE BEARING BRASS RL (NEOPREN) COMBINED ASSY 2
3.2 710103-000901 SEAT SEAL M100 POM VALVE 2
3.2 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 2
3.3 710103-000902 RING RETAINING M104/6LP PVC PISTON COVER ASSEMBLY 2
3.4 770102-000156 PARKER O-RING 2-351 NBR 50 SHORE 2
3.5 710103-000869 ROD M104/6LP S/ST316 PISTON COVER ASSEMBLY 2
3.6 770102-000126 PARKER O-RING 2-237 NBR 70 SHORE NO FLASH 4
3.7 710103-000900 HOLDER CYLINDER SEAL M104/6LP POM PISTON COVER ASSEMBLY 2
3.8 770105-000019 U-CUP SEAL NBR OD95MM ID75MM H10MM 65 SHORE 4
3.9 710103-000843 CYLINDER 95MM M104/6LP S/ST316 POLISH F/PISTON 2
4 760104-000075 STUD BOLT 1/2" UNC 50MM S/ST303 30
5 760103-000077 FLAT WASHER M12 DIN125 C/ST ZINC PLATED 32
6 760102-000052 HEX NUT 1/2"UNC C/ST ZINC PLATED B18.2.2 32
7 780101-000611 REDUCER 2"X1 1/2" PP PLASSON 2
8 700190-001670 DIRT COL.ASSY 6 NOZ+PATITION STD M104XLP/110P 2
8.1 710103-000920 BODY M104/6LP S/ST304 F/DIRT COLLECTOR 6 NOZZLES 2
8.1 710103-010021 CONNECTOR M100 BRASS F/DIRT COLLECTOR 2
8.11 710101-001614 M100 FLUSHING CHAMBER RPP BLACK 2
8.12 710101-001629 M100 TURBINE PISTON RPP BLACK 2
8.12.1 710103-011620 BEARING M100 PISTON K110/D2 2
8.2 710103-001483 SHAFT DIRT COLLECTOR M300-3000A BRASS 2
8.3 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 24
8.4 710103-000800 CENTRAL SUPPORT COLLECTOR M104/6LP RPA 2
8.5 710103-000802 PLUG TOP M104/6LP RPA DIRT COLLECTOR 2
8.6 760101-000688 PHILLIPS PAN TAPPING SCREW NO.8 3/8" S/ST316 ASME B18.6.4 TYPE-AB 24
8.7 710101-000704 F100 SUCTION NOZZLE OVAL RPA BLACK 12
8.8 710101-000693 F100 CLIP RPA NATURAL 24
8.9 760101-000417 HEX BOLT PARTIALTHRD 1/4"UNC 1 1/4" S/ST304 ASME B18.2.1 24
9 700101-000597 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 80MIC M100 NBR SEALS PVC ENDS 2
9 700101-000598 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 100MIC M100 NBR SEALS PVC ENDS 2
9 700101-000599 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 130MIC M100 NBR SEALS PVC ENDS 2
9 700101-000600 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 200MIC M100 NBR SEALS PVC ENDS 2
9 700101-000601 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 300MIC M100 NBR SEALS PVC ENDS 2
9 700101-000602 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 500MIC M100 NBR SEALS PVC ENDS 2
9 700101-001645 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 50MIC M100 NBR SEALS 2
9.1 770102-000217 DOWTY O-RING SEAL 674 ID=208.92MM TH=6.99MM NBR 55 SHORE 4
10 700190-004629 INJECTED COARSE SCREEN ASSEMBLY M108LP/M110P 2
11 710105-000362 M104/6LP COVER PKPK 5010 ST.37-2 POLYESTER 2
12 760104-000081 STUD BOLT 1/2" UNC 92MM S/ST303 2
13 760190-000666 RUBBER BOLT COVER 1/2" BLACK 2
16 760105-000036 RIVET BLIND 3X6MM S/ST316 DIN7337 4
17 730108-000120 AIR RELEASE VALVE A.R.I BARAK D-040-P 1" BSPT NYLON3 16BAR W/3/8" DRAIN OUT 1
18 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 6
19 720501-000336 PLUG 3/8"M BSPT PA66 BLUE TEFEN 1
20 720501-000172 L-CONNECTOR 3/8"M X12MM BSPT ACETAL BLACK TEFEN 5
21 720501-000229 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-BLUE TEFEN 2
22 780101-000947 PLUG 1" BSP M PP PLASSON DW 1
23 780101-000946 PLUG 3/4" BSP M PP PLASSON 2
24 700103-001764 ADI-P DC KIT PACKAGE TWO SOLENOIDS NC 1
25 710103-011847 BRACKET MG S/ST304 BOOSTER 1
26 700190-006136 AMIAD ACCELERATOR ASSEMBLY 2
27 760103-000128 FLAT WASHER M16 DIN125 S/ST316 2
28 720501-000157 COUPLING 3/8"F BSPT PA66 BLUE TEFEN 2
29 720502-000017 CONTROLTUBE 8MM LDPE BLACK W/GREEN STRIPE TEFFEN 4
30 720502-000021 CONTROLTUBE 12MM LDPE BLACK TEFFEN 2

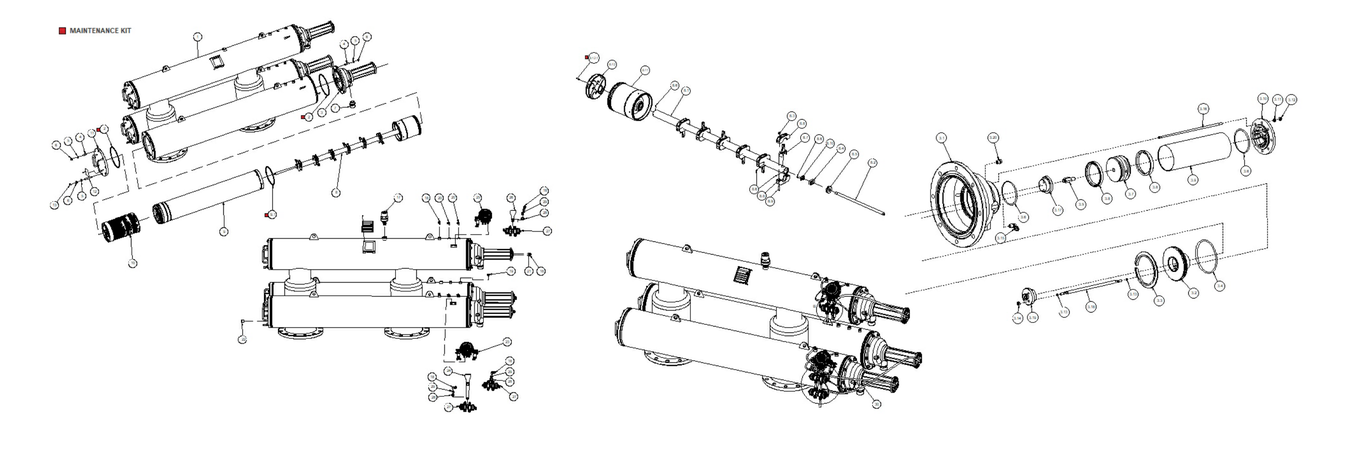

FiltomatMG112
Pos. Part No. Description Qty
1 710105-MG112 MG-112LP HOUSING 12" PKPK 5010 ST.37-2 POLYESTER 1
2 770102-000174 PARKER O-RING 2-448 NBR 70 SHORE 6
3 700190-001541 COVER ASSY CAST-IRON W/PIS AND VALVE PISTON MOD 3
3.1 710103-000799 PLUG PISTON M104/6LP RPA M10X(L)(P) 3
3.1 710103-000819 M100 COVER PMPM 5010 CAST-IRON POLYESTER 3
3.11 760103-000094 FLAT WASHER M6 DIN125 S/ST316 24
3.12 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 24
3.13 770102-000058 PARKER O-RING 2-009 NBR 70 SHORE 30
3.14 760102-000078 HEX NUT 1/4"UNC S/ST316 B18.2.2 15
3.15 720501-000908 L-CONNECTOR 1/4"M X8MM BSPT RPP RED-BLUE TEFEN 3
3.16 710103-000903 ROD M104/6LP S/ST303 PISTON COVER ASSEMBLY 24
3.17 710104-000039 M104/6LP VALVE SEAT BRASS NR 3
3.18 710103-000895 SPACER BOLT VALVE M104/6LP S/ST303 PISTON COVER ASSEMBLY 9
3.19 710104-000040 M104/6LP VALVE BEARING BRASS RL (NEOPREN) COMBINED ASSY 3
3.2 710103-000901 SEAT SEAL M100 POM VALVE 3
3.2 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 3
3.3 710103-000902 RING RETAINING M104/6LP PVC PISTON COVER ASSEMBLY 3
3.4 770102-000156 PARKER O-RING 2-351 NBR 50 SHORE 3
3.5 710103-000869 ROD M104/6LP S/ST316 PISTON COVER ASSEMBLY 3
3.6 770102-000126 PARKER O-RING 2-237 NBR 70 SHORE NO FLASH 6
3.7 710103-000900 HOLDER CYLINDER SEAL M104/6LP POM PISTON COVER ASSEMBLY 3
3.8 770105-000019 U-CUP SEAL NBR OD95MM ID75MM H10MM 65 SHORE 6
3.9 710103-000843 CYLINDER 95MM M104/6LP S/ST316 POLISH F/PISTON 3
4 760104-000075 STUD BOLT 1/2" UNC 50MM S/ST303 45
5 760103-000077 FLAT WASHER M12 DIN125 C/ST ZINC PLATED 48
6 760102-000052 HEX NUT 1/2"UNC C/ST ZINC PLATED B18.2.2 48
7 780101-000611 REDUCER 2"X1 1/2" PP PLASSON 3
8 700190-001670 DIRT COL.ASSY 6 NOZ+PATITION STD M104XLP/110P 3
8.1 710103-000920 BODY M104/6LP S/ST304 F/DIRT COLLECTOR 6 NOZZLES 3
8.1 710103-010021 CONNECTOR M100 BRASS F/DIRT COLLECTOR 3
8.11 710101-001614 M100 FLUSHING CHAMBER RPP BLACK 3
8.12 710101-001629 M100 TURBINE PISTON RPP BLACK 3
8.12.1 710103-011620 BEARING M100 PISTON K110/D2 3
8.2 710103-001483 SHAFT DIRT COLLECTOR M300-3000A BRASS 3
8.3 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 36
8.4 710103-000800 CENTRAL SUPPORT COLLECTOR M104/6LP RPA 3
8.5 710103-000802 PLUG TOP M104/6LP RPA DIRT COLLECTOR 3
8.6 760101-000688 PHILLIPS PAN TAPPING SCREW NO.8 3/8" S/ST316 ASME B18.6.4 TYPE-AB 36
8.7 710101-000704 F100 SUCTION NOZZLE OVAL RPA BLACK 18
8.8 710101-000693 F100 CLIP RPA NATURAL 36
8.9 760101-000417 HEX BOLT PARTIALTHRD 1/4"UNC 1 1/4" S/ST304 ASME B18.2.1 36
9 700101-000597 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 80MIC M100 NBR SEALS PVC ENDS 3
9 700101-000598 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 100MIC M100 NBR SEALS PVC ENDS 3
9 700101-000599 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 130MIC M100 NBR SEALS PVC ENDS 3
9 700101-000600 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 200MIC M100 NBR SEALS PVC ENDS 3
9 700101-000601 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 300MIC M100 NBR SEALS PVC ENDS 3
9 700101-000602 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 500MIC M100 NBR SEALS PVC ENDS 3
9 700101-001645 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 50MIC M100 NBR SEALS 3
9.1 770102-000217 DOWTY O-RING SEAL 674 ID=208.92MM TH=6.99MM NBR 55 SHORE 6
10 700190-004629 INJECTED COARSE SCREEN ASSEMBLY M108LP/M110P 3
11 710105-000362 M104/6LP COVER PKPK 5010 ST.37-2 POLYESTER 3
12 760104-000081 STUD BOLT 1/2" UNC 92MM S/ST303 3
13 760190-000666 RUBBER BOLT COVER 1/2" BLACK 3
16 760105-000036 RIVET BLIND 3X6MM S/ST316 DIN7337 4
17 730108-000120 AIR RELEASE VALVE A.R.I BARAK D-040-P 1" BSPT NYLON3 16BAR W/3/8" DRAIN OUT 1
18 720501-000172 L-CONNECTOR 3/8"M X12MM BSPT ACETAL BLACK TEFEN 8
19 720501-000336 PLUG 3/8"M BSPT PA66 BLUE TEFEN 1
20 720501-000229 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-BLUE TEFEN 4
21 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 7
22 780101-000946 PLUG 3/4" BSP M PP PLASSON 2
23 700103-001764 ADI-P DC KIT PACKAGE TWO SOLENOIDS NC 1
24 710103-011847 BRACKET MG S/ST304 BOOSTER 1
25 700103-001763 ADI-P DC KIT PACKAGE ONE SOLENOID NC 1
26 710103-011846 BRACKET M100 PISTON S/ST304 BOOSTER 1
27 700190-006136 AMIAD ACCELERATOR ASSEMBLY 3
28 760103-000128 FLAT WASHER M16 DIN125 S/ST316 3
29 720501-000157 COUPLING 3/8"F BSPT PA66 BLUE TEFEN 3
30 720502-000017 CONTROLTUBE 8MM LDPE BLACK W/GREEN STRIPE TEFFEN 4
31 720502-000021 CONTROLTUBE 12MM LDPE BLACK TEFFEN 3

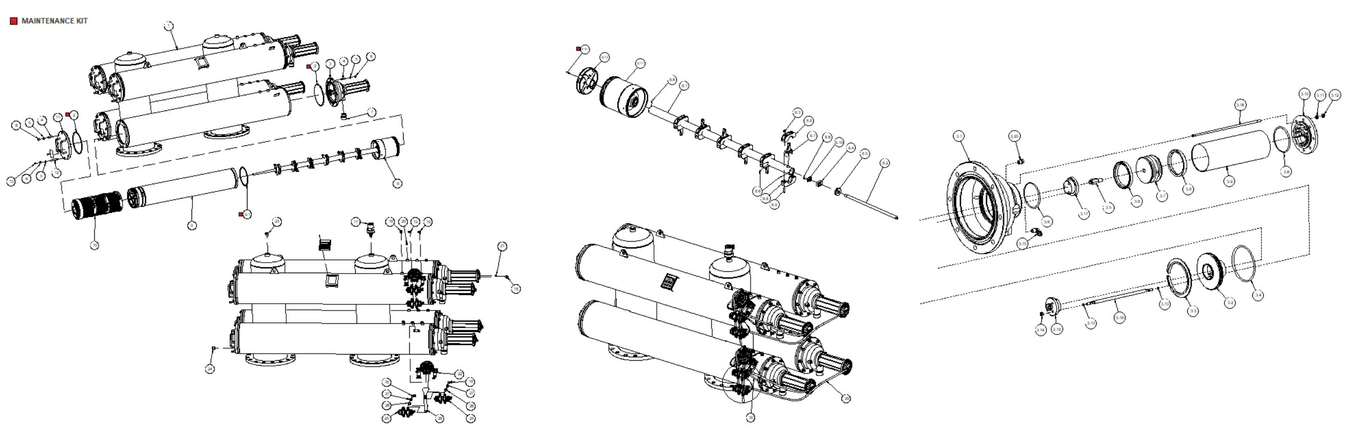

FiltomatMG114
Pos. Part No. Description Qty
1 710105-MG114 MG114-27200 HOUSING PKPK 5010 ST.37-2 POLYESTER 1
2 770102-000174 PARKER O-RING 2-448 NBR 70 SHORE 8
3 700190-001541 COVER ASSY CAST-IRON W/PIS AND VALVE PISTON MOD 4
3.10 710103-000799 PLUG PISTON M104/6LP RPA M10X(L)(P) 4
3.1 710103-000819 M100 COVER PMPM 5010 CAST-IRON POLYESTER 4
3.11 760103-000094 FLAT WASHER M6 DIN125 S/ST316 32
3.12 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 32
3.13 770102-000058 PARKER O-RING 2-009 NBR 70 SHORE 40
3.14 760102-000078 HEX NUT 1/4"UNC S/ST316 B18.2.2 20
3.15 720501-000908 L-CONNECTOR 1/4"M X8MM BSPT RPP RED-BLUE TEFEN 4
3.16 710103-000903 ROD M104/6LP S/ST303 PISTON COVER ASSEMBLY 32
3.17 710104-000039 M104/6LP VALVE SEAT BRASS NR 4
3.18 710103-000895 SPACER BOLT VALVE M104/6LP S/ST303 PISTON COVER ASSEMBLY 12
3.19 710104-000040 M104/6LP VALVE BEARING BRASS RL (NEOPREN) COMBINED ASSY 4
3.2 710103-000901 SEAT SEAL M100 POM VALVE 4
3.20 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 4
3.3 710103-000902 RING RETAINING M104/6LP PVC PISTON COVER ASSEMBLY 4
3.4 710103-000902 PARKER O-RING 2-351 NBR 50 SHORE 4
3.5 710103-000869 ROD M104/6LP S/ST316 PISTON COVER ASSEMBLY 4
3.6 770102-000126 PARKER O-RING 2-237 NBR 70 SHORE NO FLASH 8
3.7 710103-000900 HOLDER CYLINDER SEAL M104/6LP POM PISTON COVER ASSEMBLY 4
3.8 770105-000019 U-CUP SEAL NBR OD95MM ID75MM H10MM 65 SHORE 8
3.9 710103-000843 CYLINDER 95MM M104/6LP S/ST316 POLISH F/PISTON 4
4 760104-000075 STUD BOLT 1/2" UNC 50MM S/ST303 60
5 760103-000077 FLAT WASHER M12 DIN125 C/ST ZINC PLATED 64
6 760102-000052 HEX NUT 1/2"UNC C/ST ZINC PLATED B18.2.2 64
7 780101-000611 REDUCER 2"X1 1/2" PP PLASSON 4
8 700190-001670 DIRT COL.ASSY 6 NOZ+PATITION STD M104XLP/110P 4
8.1 710103-000920 BODY M104/6LP S/ST304 F/DIRT COLLECTOR 6 NOZZLES 4
8.1 710103-010021 CONNECTOR M100 BRASS F/DIRT COLLECTOR 4
8.11 710101-001614 M100 FLUSHING CHAMBER RPP BLACK 4
8.12 710101-001629 M100 TURBINE PISTON RPP BLACK 4
8.12.1 710103-011620 BEARING M100 PISTON K110/D2 4
8.2 710103-001483 SHAFT DIRT COLLECTOR M300-3000A BRASS 4
8.3 760102-000097 NYLON INSERT LOCKNUT 1/4"UNC S/ST316 DIN985 48
8.4 710103-000800 CENTRAL SUPPORT COLLECTOR M104/6LP RPA 4
8.5 710103-000802 PLUG TOP M104/6LP RPA DIRT COLLECTOR 4
8.6 760101-000688 PHILLIPS PAN TAPPING SCREW NO.8 3/8" S/ST316 ASME B18.6.4 TYPE-AB 48
8.7 710101-000704 F100 SUCTION NOZZLE OVAL RPA BLACK 24
8.8 710101-000693 F100 CLIP RPA NATURAL 48
8.9 760101-000417 HEX BOLT PARTIALTHRD 1/4"UNC 1 1/4" S/ST304 ASME B18.2.1 48
9 700101-000597 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 80MIC M100 NBR SEALS PVC ENDS 4
9 700101-000598 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 100MIC M100 NBR SEALS PVC ENDS 4
9 700101-000599 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 130MIC M100 NBR SEALS PVC ENDS 4
9 700101-000600 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 200MIC M100 NBR SEALS PVC ENDS 4
9 700101-000601 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 300MIC M100 NBR SEALS PVC ENDS 4
9 700101-000602 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 500MIC M100 NBR SEALS PVC ENDS 4
9 700101-001645 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 50MIC M100 NBR SEALS 4
9.1 770102-000217 MOLDED WEAVEWIRE SCREEN S/ST316L 8890SQ.CM 50MIC M100 NBR SEALS 8
10 700190-004629 INJECTED COARSE SCREEN ASSEMBLY M108LP/M110P 4
11 710105-000362 M104/6LP COVER PKPK 5010 ST.37-2 POLYESTER 4
12 760104-000081 STUD BOLT 1/2" UNC 92MM S/ST303 4
13 760190-000666 RUBBER BOLT COVER 1/2" BLACK 4
16 760105-000036 RIVET BLIND 3X6MM S/ST316 DIN7337 4
17 730108-000120 AIR RELEASE VALVE A.R.I BARAK D-040-P 1" BSPT NYLON3 16BAR W/3/8" DRAIN OUT 1
18 720501-000172 L-CONNECTOR 3/8"M X12MM BSPT ACETAL BLACK TEFEN 10
19 720501-000229 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK-BLUE TEFEN 4
20 720501-000336 PLUG 3/8"M BSPT PA66 BLUE TEFEN 2
21 720501-000190 PLUG 1/4"M BSPT PA66 BLUE TEFEN 10
22 700103-001764 ADI-P DC KIT PACKAGE TWO SOLENOIDS NC 2
23 780101-000947 PLUG 1" BSP M PP PLASSON DW 1
24 780101-000946 PLUG 3/4" BSP M PP PLASSON 2
25 700190-006136 AMIAD ACCELERATOR ASSEMBLY 4
26 760103-000128 FLAT WASHER M16 DIN125 S/ST316 4
27 720501-000157 COUPLING 3/8"F BSPT PA66 BLUE TEFEN 4
28 710103-011847 BRACKET MG S/ST304 BOOSTER 2
29 720502-000021 CONTROLTUBE 12MM LDPE BLACK TEFFEN 4
30 720502-000017 CONTROLTUBE 8MM LDPE BLACK W/GREEN STRIPE TEFFEN 6

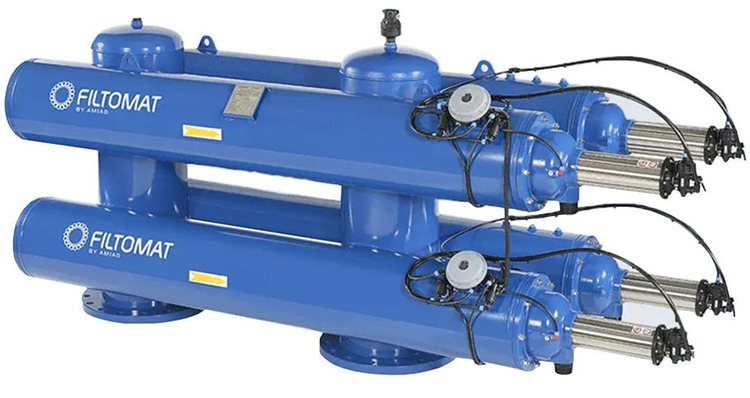

Amiad - Filtomat MG - Automatic Screen Filter

MG-How to Order
Item Size Self Cleaning System Description
MG110 250mm Flanged Water Driven Standalone Filtomat Hydraulic MG Series -250mm Flanged
MG112 300mm Flanged Water Driven Standalone Filtomat Hydraulic MG Series - 300mm Flanged
MG114 350mm Flanged Water Driven Standalone Filtomat Hydraulic MG Series - 350mm Flanged
Contact Form
