Sensus - Cordonel - Radio Water Meter

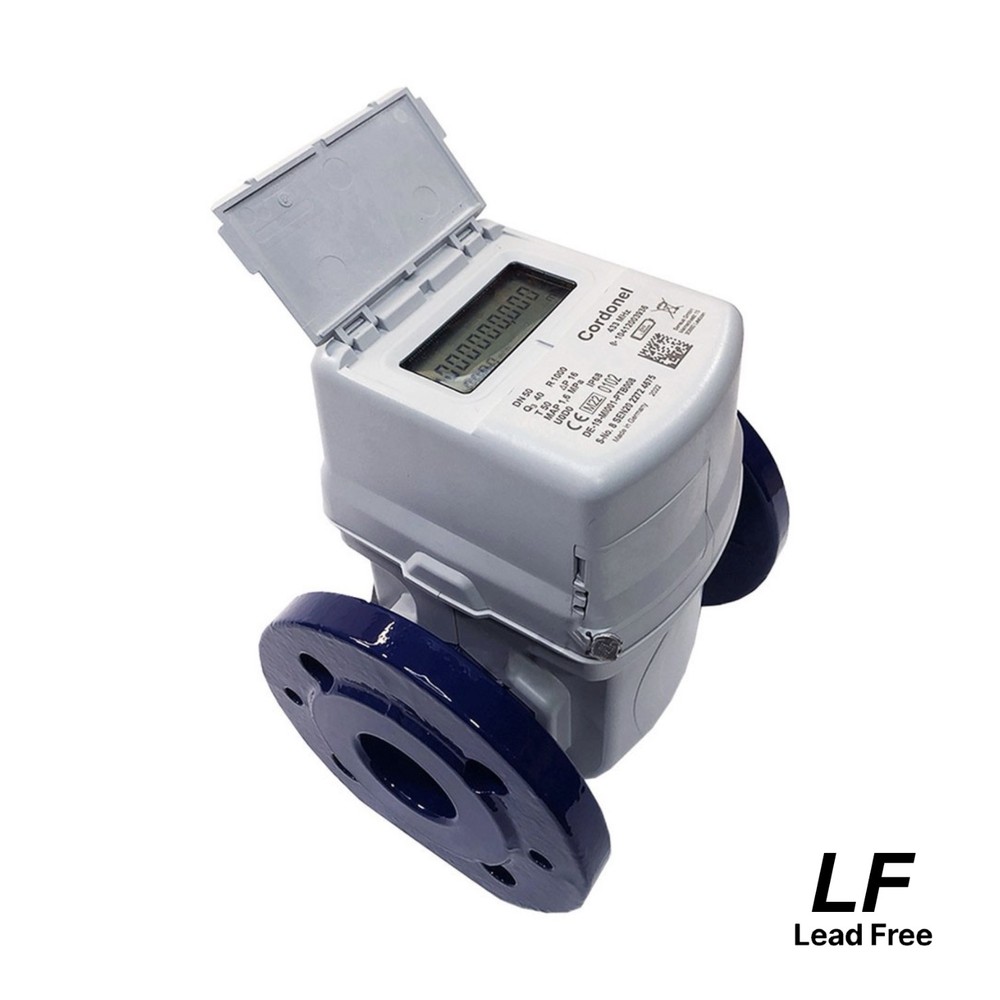

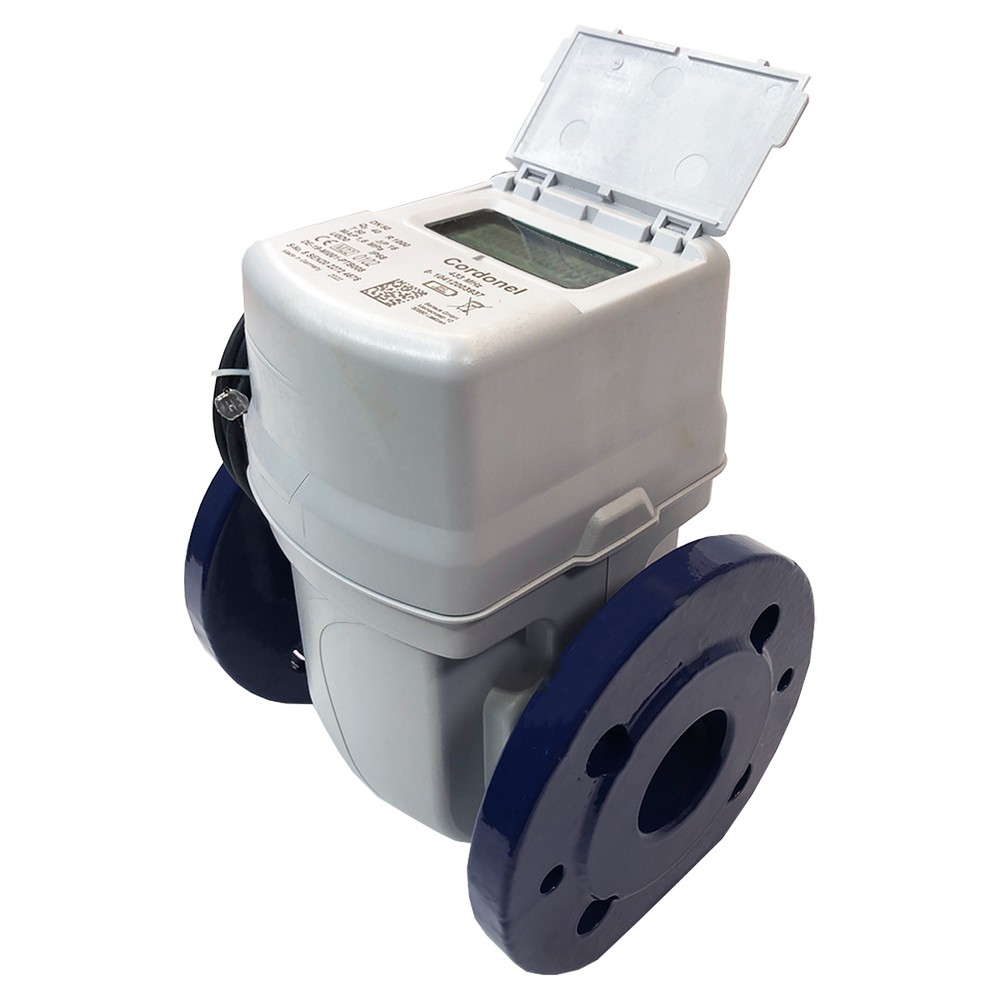

Sensu - Cordonel - Product Imge
Brand: Sensus
Category: Metering, Radio Water Meters
Size Range:

50-150mm

Connection:

Flanged

Frequency:

433 MHz

Performance:

OIML R49:R1000

Product Description

Cordonel is a high-performance bulk meter that enables you to manage your distribution network more efficiently and provides accurate and reliable data in any installation or environmental condition.

Using advanced ultrasonic technology and a Sensus communication network, this meter gathers precise low and high-flow data in real-time. This solid-state meter has no moving parts and offers a patent-pending flow tube with no obstructions, providing a maintenance-free meter over its operational lifetime.

Real U0D0 installation flexibility and a sturdy design allows Cordonel to accurately capture and measure water consumption, flow, temperature and pressure (optional); it is perfect for use in virtually all commercial, industrial, and agricultural settings.

Features and Benefits

  • Uses ultrasonic technology with no moving parts or obstruction to the flow
  • Maintenance-free over its operational lifetime
  • Large measuring range; Q3/Q1 R1000
  • Advanced U0D0 capability
  • Meter with MID pattern approval according to annex MI001
  • Meter conforms to OIML R49:2013 and ISO 4064:2017
  • Constant accuracy over lifetime, no degradation as components age
  • Installation in horizontal and vertical pipe orientations
  • LCD for consumption, flow, temperature, pressure (optional) and status information
  • Integrated radio communication and data logger
  • Secure encrypted data transmission
  • Meter can be submerged; meets protection class IP68 acc. to 60529:2014
  • NFC wireless interface for readout of the last volume reading
  • 20-year average meter lifetime incl. battery under standard usage conditions
  • Optional pulse output with programmable values and lengths

Typical Applications

  • Measurement for billing of potable water up to 50 °C
  • Radio-equipped flow meter for walk-by/drive-by readout applications.
  • Metering endpoint in radio-based fixed Smart Water Networks
  • Measurement of high flowrates, for example in pumped pipes for irrigation
  • Measurement of low flow, for example in light load periods
  • Leakage detection
  • Flow meter for controlling industrial processes using a pulse output.
  • Flow meter supplying rich data for DMA analysis.

Available options

  • Integrated pressure sensor
  • Radio communication on alternative frequencies
  • Pulse output with different pulse modes

Environmental conditions

  • According to ISO 4064-1:2017
  • Environmental class O acc. to OIML R49-1:2013
  • Environmental temperature: -10 °C ... 70 °C
  • Mechanical environmental conditions: class M2
  • Electromagnetic environmental conditions: class E2

Approvals

  • Metrology DE-19-MI001-PTB008
  • Marking CE M-XX* 0102 (*year of conformity assessment)
  • Potable Water
    • KTW / DVGW
    • WRAS
    • ACS
    • KIWA

Technical Data

Performance Data

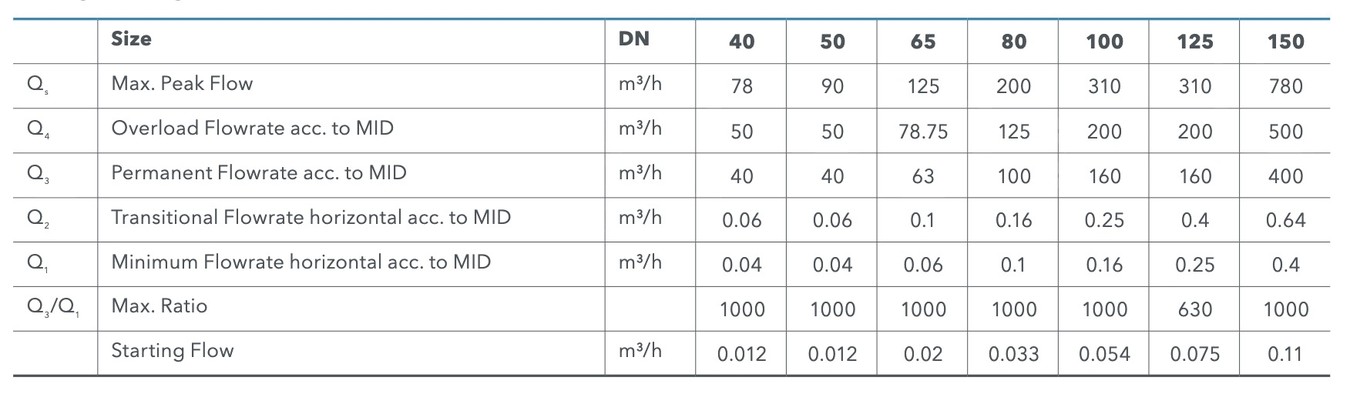

Sensus - Cordonel - Performance Data

Sensus - Cordonel - Performance Data

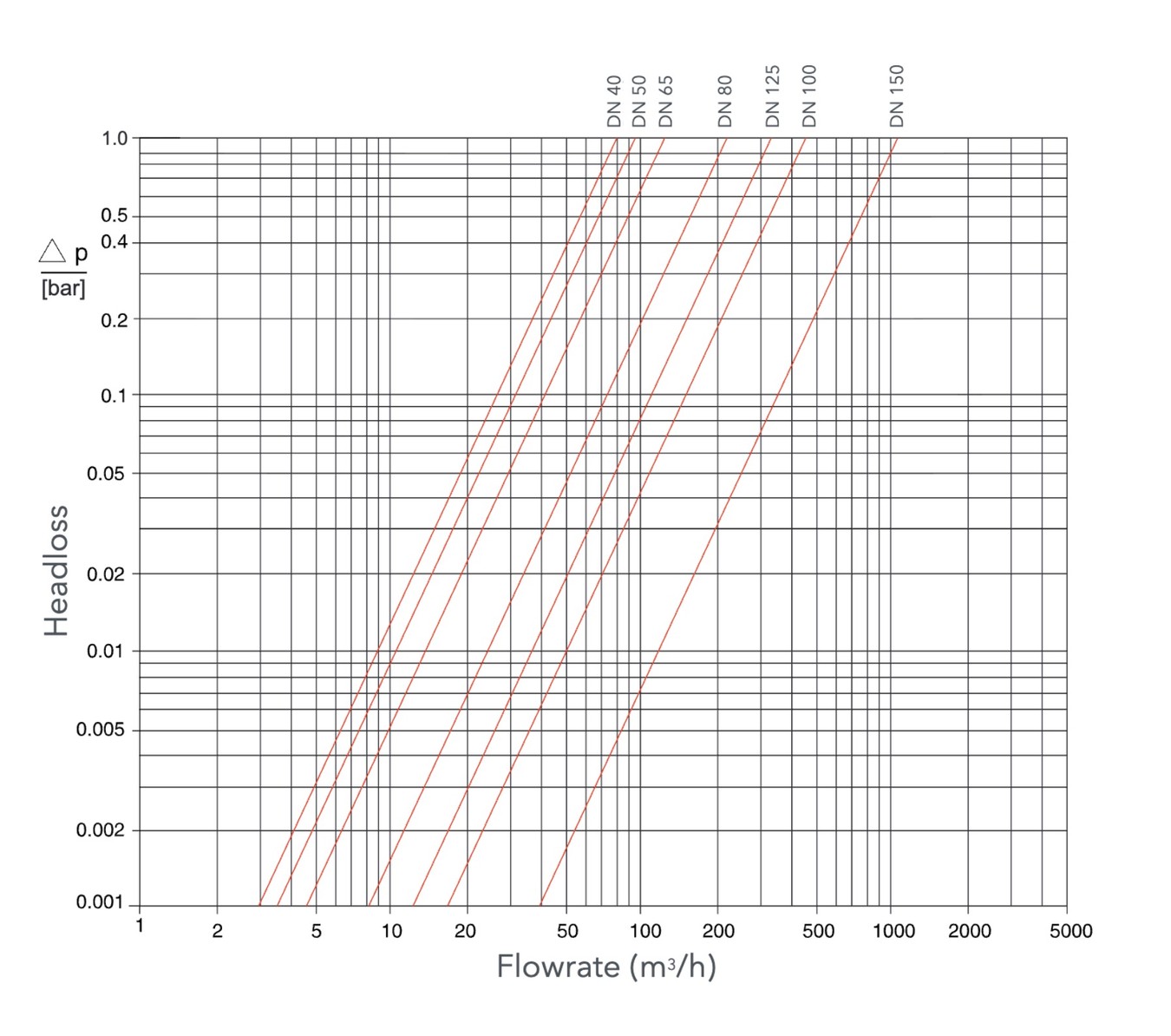

Typical Headloss Curve

Sensus - Cordonel - Typical Head Loss Curve

Sensus - Cordonel - Typical Head Loss Curve

Typical Error Curve

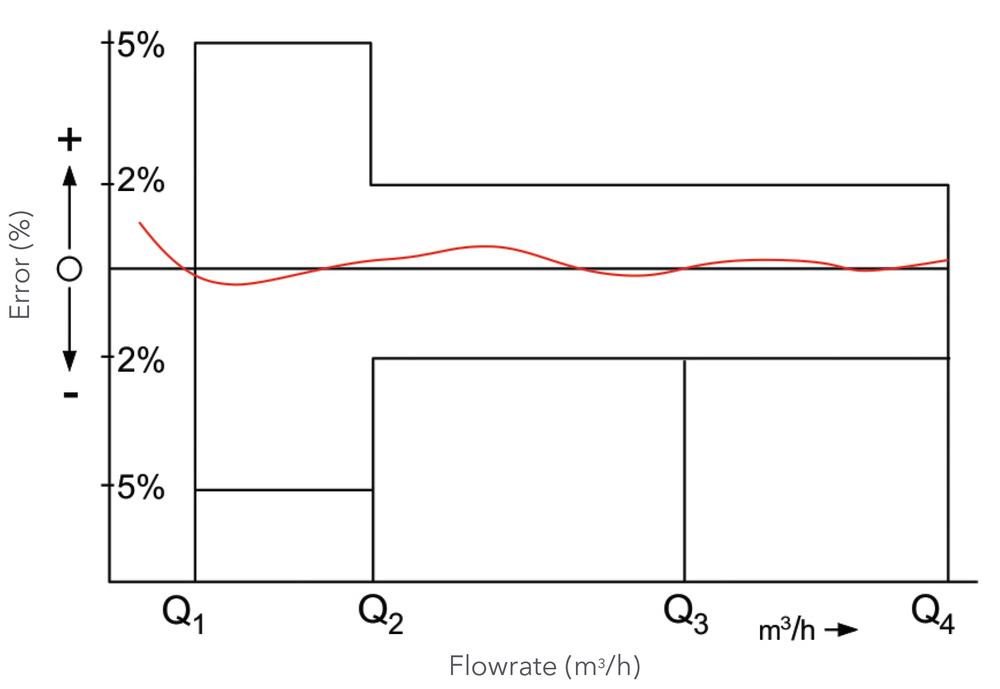

Sensus - Cordonel - Typical Error Curve

Sensus - Cordonel - Typical Error Curve

Materials

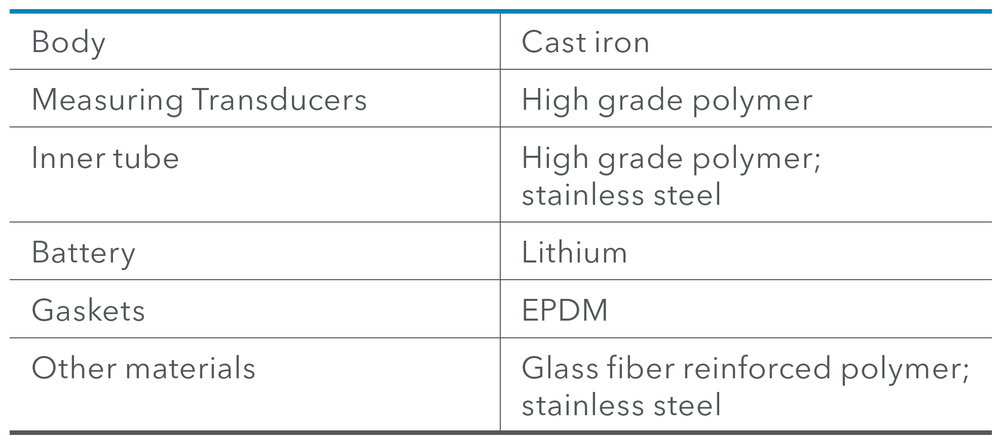

Sensus - Cordonel - Materials

Sensus - Cordonel - Materials

Technical Specifications

Dimensional Diagram

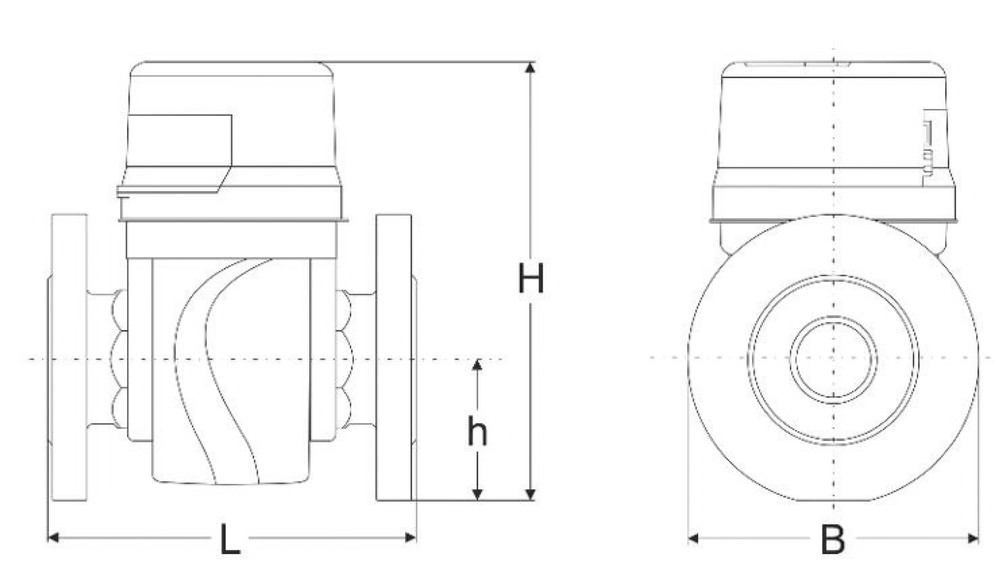

Sensus - Cordonel - Dimensional Diagram

Sensus - Cordonel - Dimensional Diagram

Dimensions and Weights

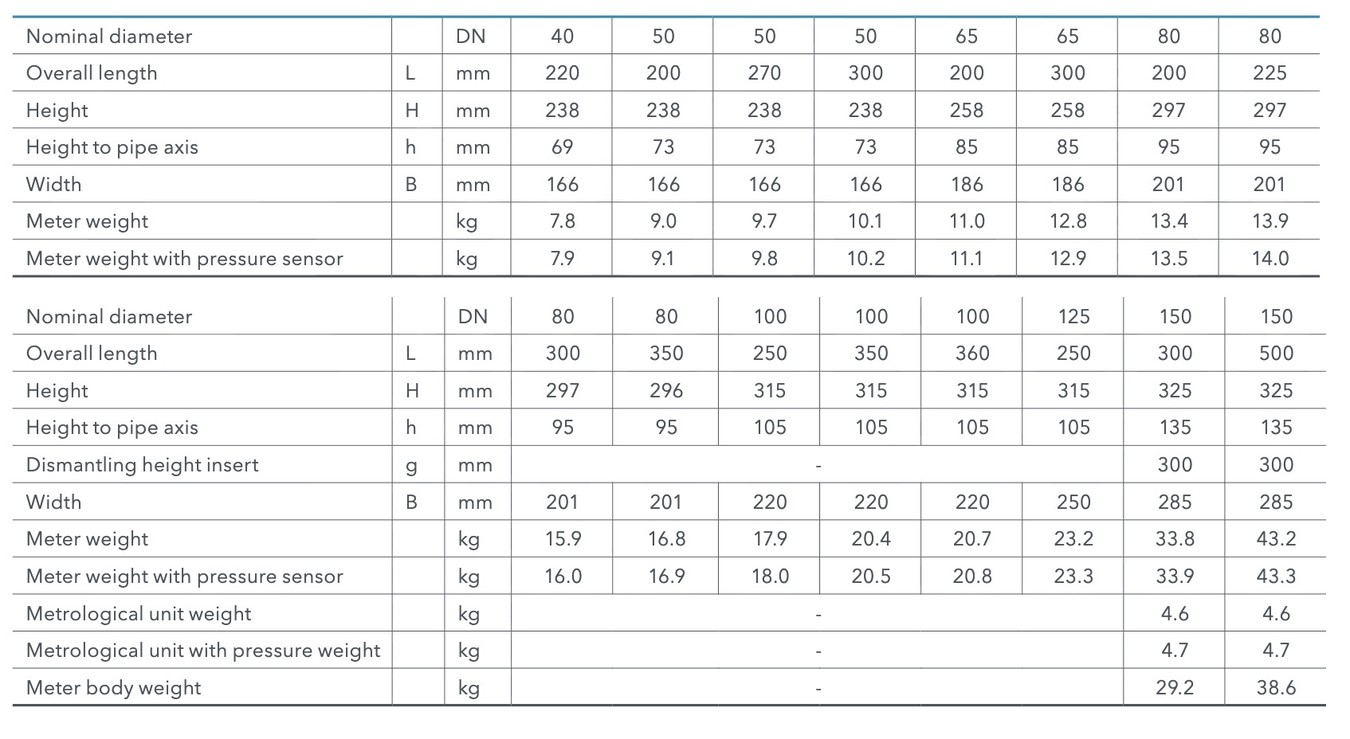

Sensus - Cordonel - Dimensions and Weights

Sensus - Cordonel - Dimensions and Weights

Display

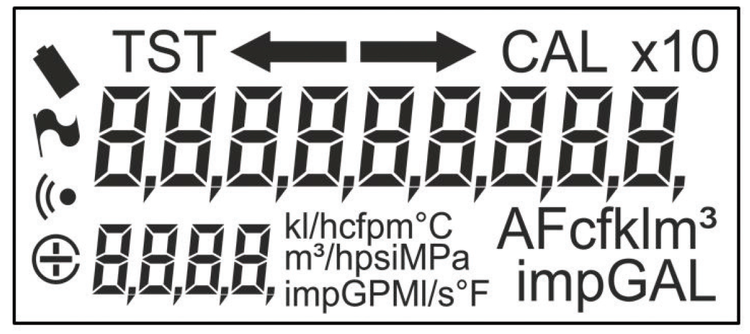

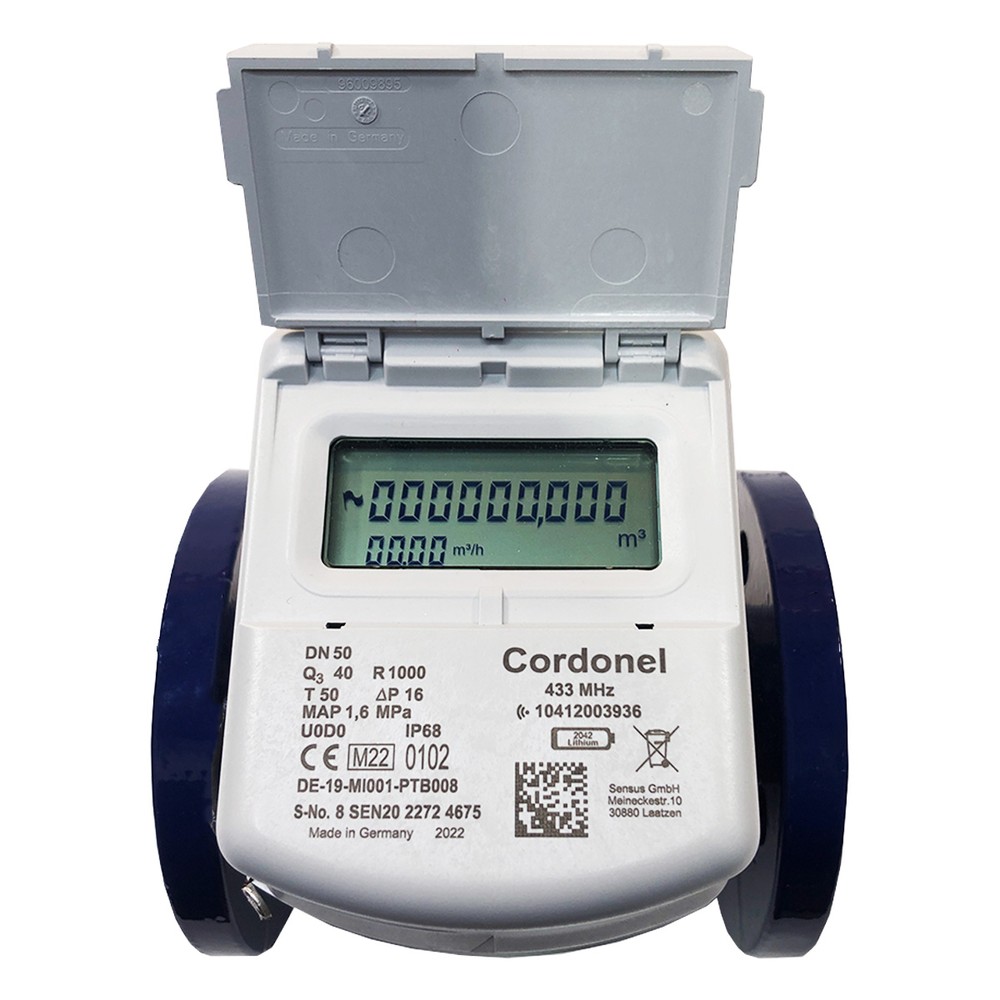

Sensus - Cordonel - Display
Sensus - Cordonel - Dial
Sensus - Icons

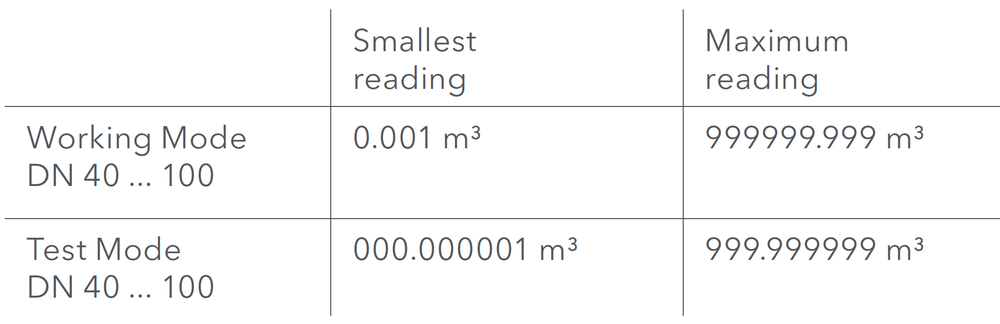

Sensus - Cordonel - Reading

The bottom line displays flow, temperature or optionally pressure in an automatic loop.

Installation

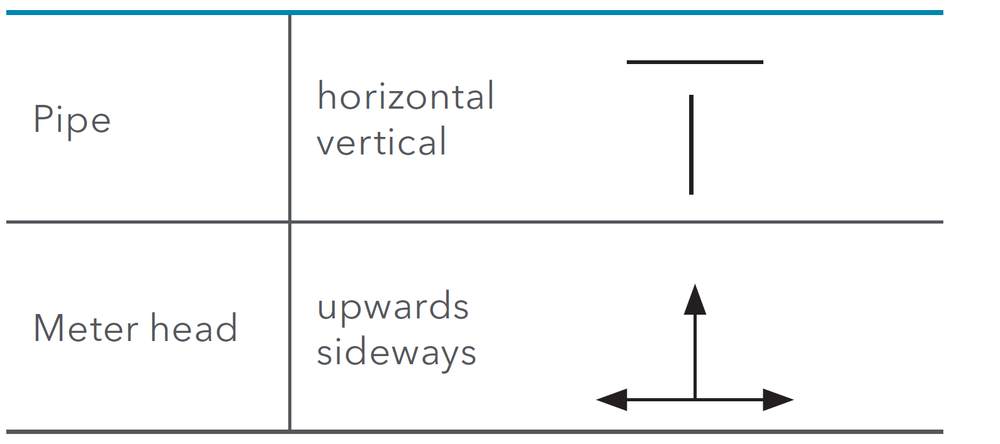

Sensus - Cordonel - Installation

Sensus - Cordonel - Installation

Sensus - Cordonel - Radio Water Meter

Static Ultrasonic ‘RF’ Water Meter for Potable Water. OIML R49:R1000

Sensus - Cordonel - How to Order
Product Code Size Description
CRD+P050 50mm High Accuracy Ultrasonic Meter with Integrated Pressure Transducer, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. OIML R49: R1000, Q3 40m³/h, Body Length 200mm
CRD+P080 80mm High Accuracy Ultrasonic Meter with Integrated Pressure Transducer, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. OIML R49: R1000, Q3 100m³/h, Body Length 225mm
CRD+P100 100mm High Accuracy Ultrasonic Meter with Integrated Pressure Transducer, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. OIML R49: R1000, Q3 160m³/h, Body Length 250mm
CRD+P150 150mm High Accuracy Ultrasonic Meter with Integrated Pressure Transducer, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. OIML R49: R1000, Q3XXXXX , Body Length 300mm

Pulse Output

Cordonel - Pulse Output - How to Order
Product Code Description

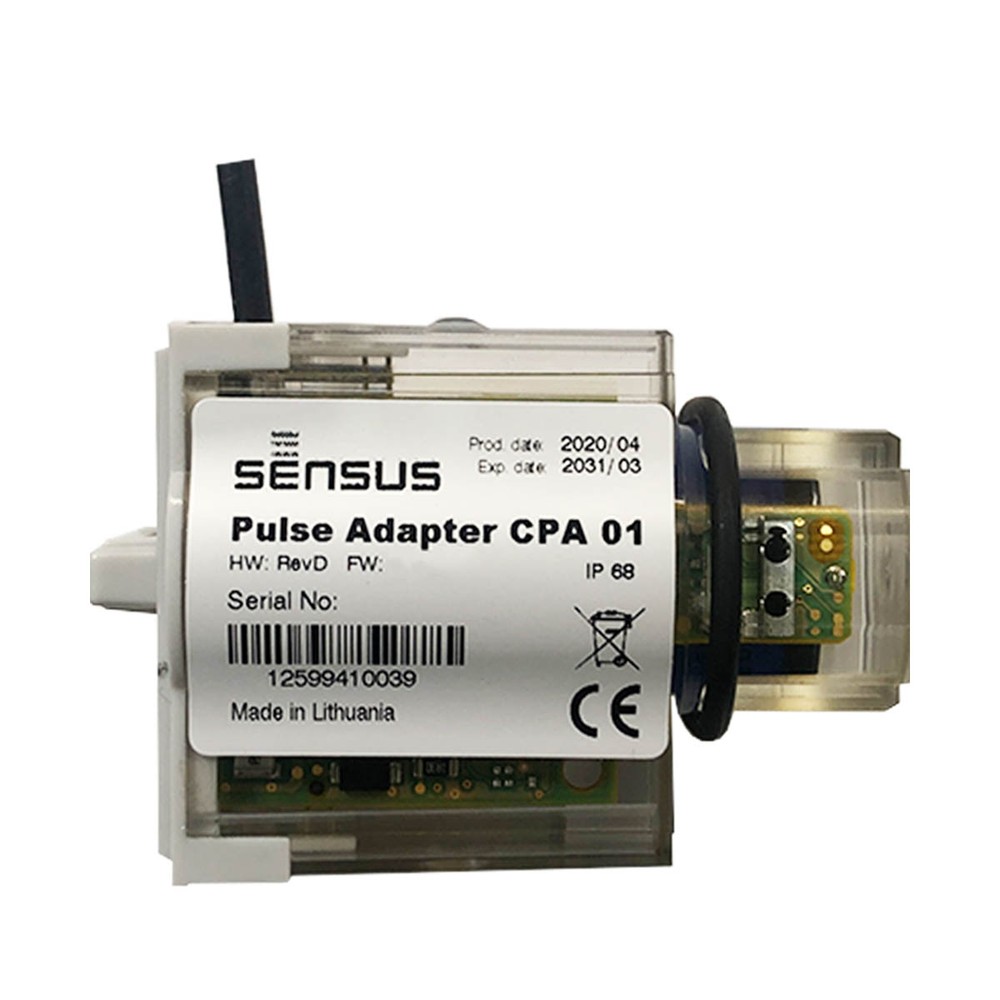

CRP-01 Pulse Output for Sensus Cordonel
