Brand: | Sensus |
Category: | Metering, Radio Water Meters |
Connection: | Flanged |
Size Range: | 50-150mm |
Frequency: | 433 MHz |
Performance: | OIML R49:R315 |
Product Description

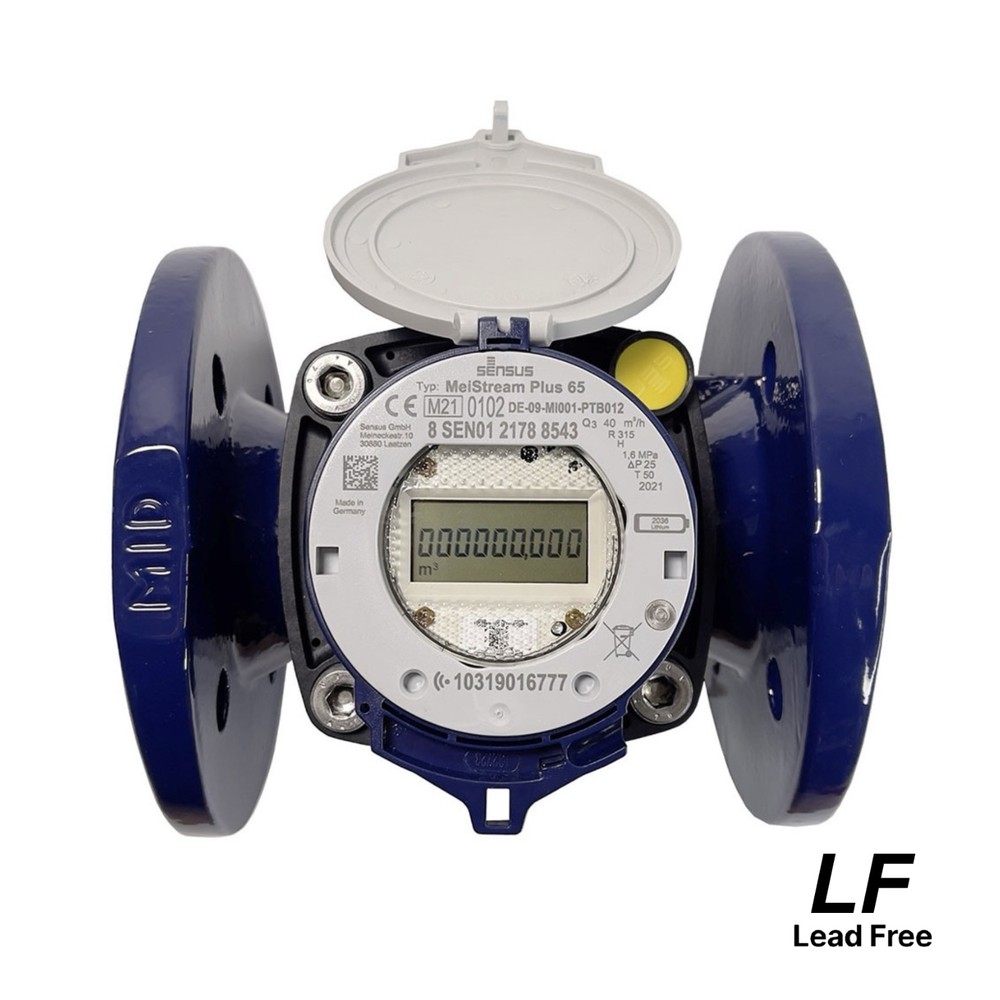

MeiStreamRF Plus is an industrial meter with an electronic register for:
- Measurement for billing of cold potable water up to 50 °C
- Measurement of medium and high flow rates
- Measurement of low flow (e.g., in light load period)
- Leakage control
- Integration into smart water systems
The MeiStreamRF Plus has SensusRF integrated radio technology, providing the advantages of both unidirectional and bi-directional communication. SensusRF is an optimized radio system for battery-driven endpoints. Scalable for mobile and remote reading without the exchange of components, it is available in 433 MHz.
![meistream 150mm](https://deeco-production.s3.amazonaws.com/images/meistream_150mm.2e16d0ba.fill-1000x1000.jpg)

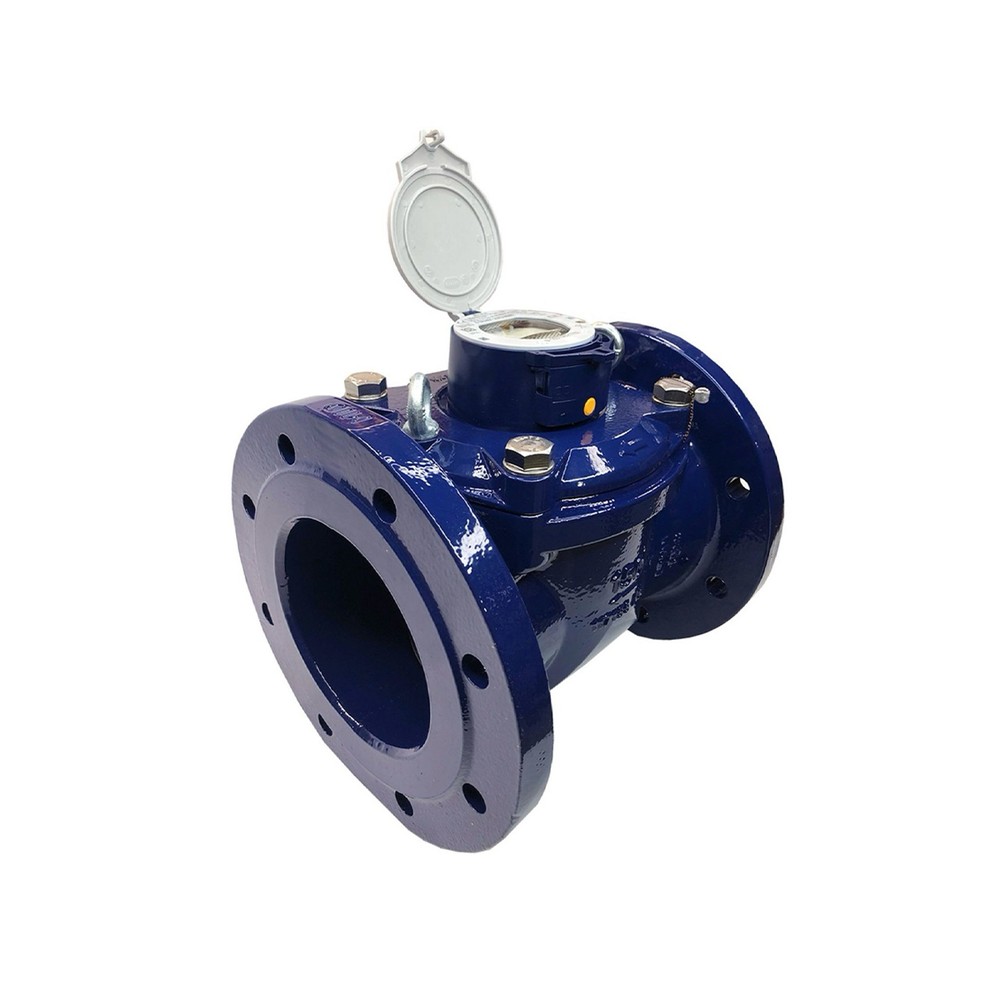

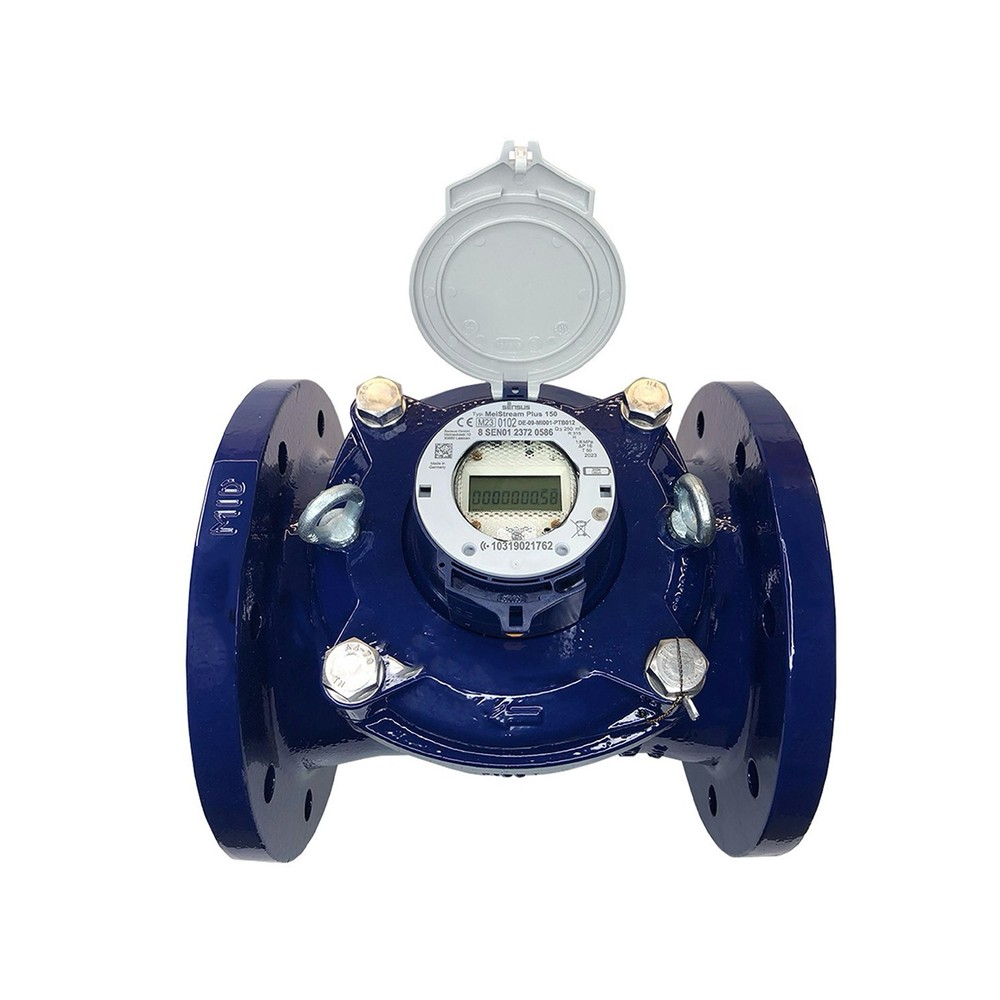

Sensus - MS+150RF
![meistream 150mm 2](https://deeco-production.s3.amazonaws.com/images/meistream_150mm_2.2e16d0ba.fill-1000x1000.jpg)

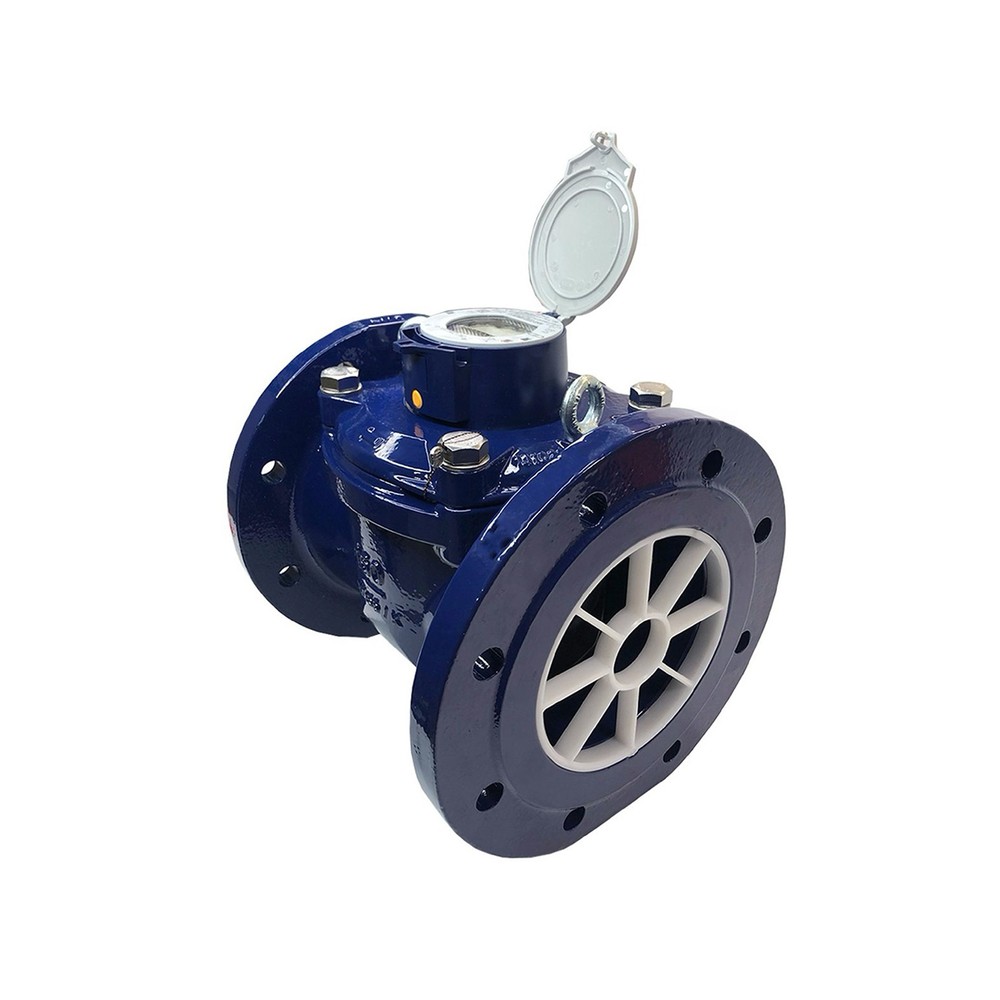

Sensus - MS+150RF
![meistream 150mm 3](https://deeco-production.s3.amazonaws.com/images/meistream_150mm_3.2e16d0ba.fill-1000x1000.jpg)
Sensus - MS+150RF
Features and Benefits
- Register with integrated radio communication and data logger with up to 6200 data sets.
- LC-display for consumption and status information
- Secured encrypted data transmission.
- Meter with MID pattern approval acc. to annex MI001
- Exchangeable metrological unit with MID pattern approval acc. to annex MI001
- Unique measuring range; Q3/Q1 315 in horizontal installation
- High overload capability
- No straight inlet length necessary (U0D0 acc. to OIML R49 and ISO 4064- 1:2017)
- Meter body in short (WP) and long (WS) overall length acc. to DIN 19625 and ISO 4064-1:2017 available
- The meter can be submerged; protection class IP68.
- Used materials are temperature resistant up to 70 °C.
Typical Applications
- Metering endpoint in radio-based Smart Water Networks
- Measurement for billing of potable water up to 50 °C
- Measurement of medium and high flowrates
- Measurement of low flow e. g. in light load periods
- For leakage control.
Available options
- Radio communication with different frequencies
- ¼" pressure monitoring port
Environmental Conditions
- Acc. to ISO 4064-1:2017
- Environmental class B
- Environmental temperature 5-70 °C
- Electromagnetic environmental class E1
Approval Mark
Meter cpl. and exchangeable metrological module
- Marking CE M-XX* 0102
- DE-09-MI001-PTB 012
* Year of production
Technical Data

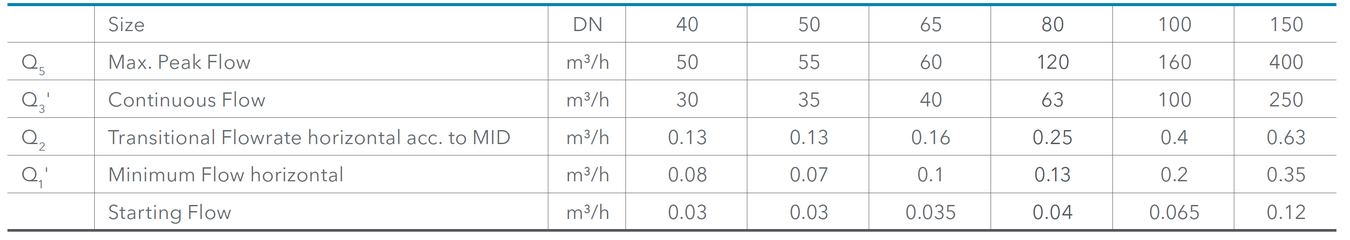

Metrological Data Acc. to Manufacturers Values
![Sensus - MeistreamRF - Metrological Data Acc. To Manufacturers Values.](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Metrological_Data_Acc..width-1350.png)
Sensus - MeistreamRF - Metrological Data Acc. To Manufacturers Values.

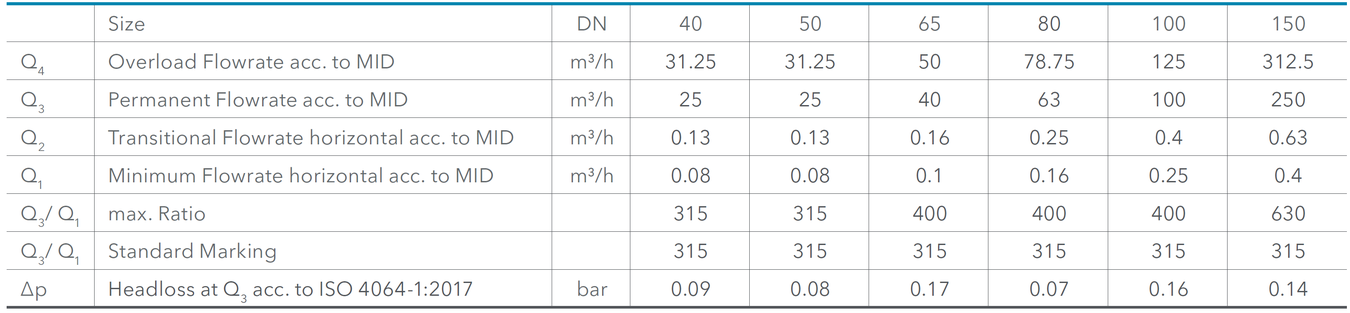

Metrological Data Acc. to 2014/32/EU (MID)
![Sensus - MeistreamRF - Metrological Data](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Metrological_Data.width-1350.png)
Sensus - MeistreamRF - Metrological Data Acc. to 2014/32/EU (MID)

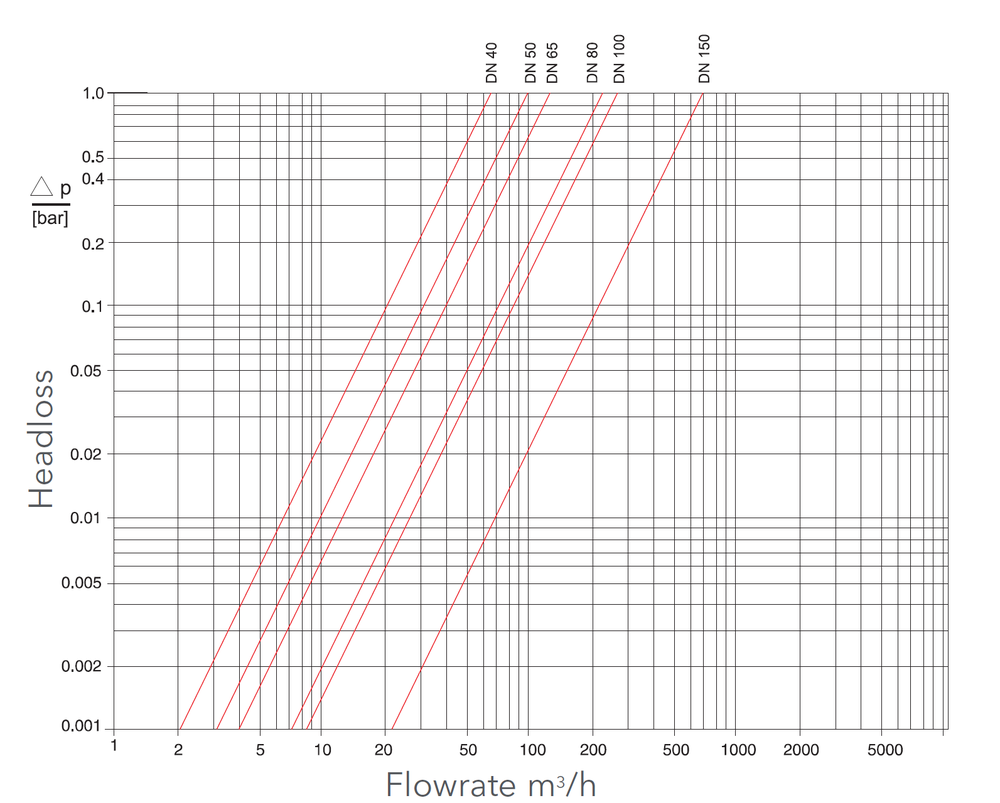

Typical Headloss Curve
![Sensus - MeistreamRF - Typical Headloss Curve](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Typical_Headloss_Curve.width-1000.png)
Sensus - MeistreamRF - Typical Headloss Curve

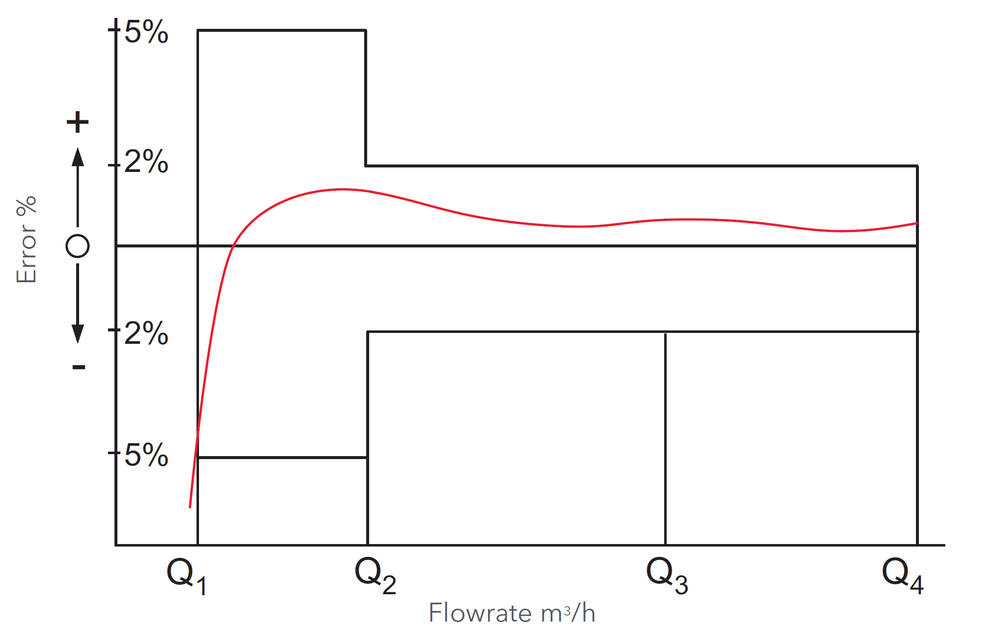

Typical Error Curve
![Sensus - MeistreamRF - Typical Error Curve](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Typical_Error_Curve.width-1000.png)
Sensus - MeistreamRF - Typical Error Curve
Materials
![Sensus - MeistreamRF - Materials](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Materials.width-1000.png)

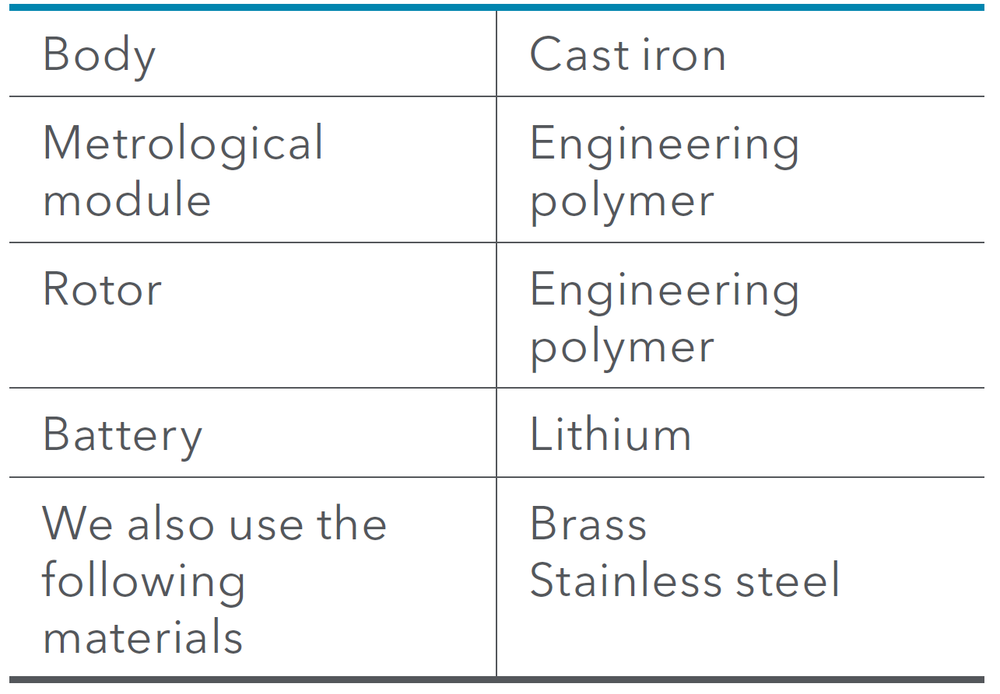

Sensus - MeistreamRF - Materials
Battery Lifetime
![Sensus - MeistreamRF - Battery Lifetime](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Battery_Lifetime.width-1000.png)

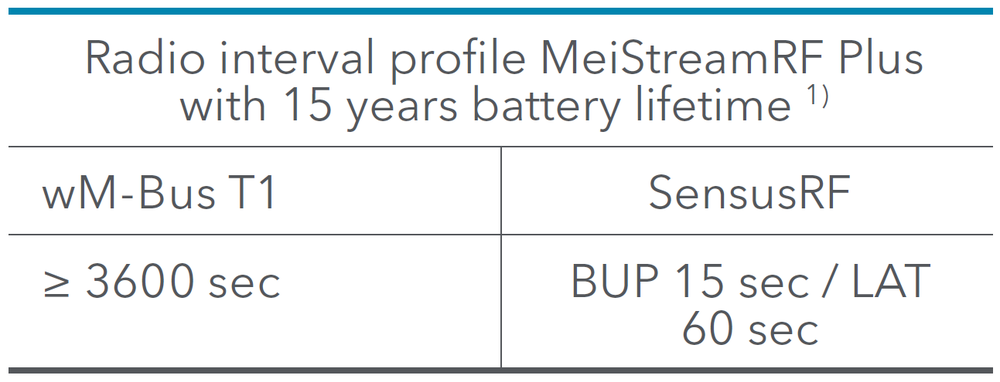

1) calculated lifetime with typical power consumption of electronics under allowed ambient condition
MeiStreamRF Plus infrastructure
The MeiStreamRF Plus has SensusRF integrated technology providing the advantages of both uni- and bidirectional system architecture as described below. SensusRF is the optimized license-free radio system for battery-driven endpoints and repeaters. Scalable for mobile and remote reading without the exchange of components, it is available at 433 MHz.
![Sensus - MeistreamRF - Remote access and monitoring](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Remote_access_and_moni.width-1000.png)

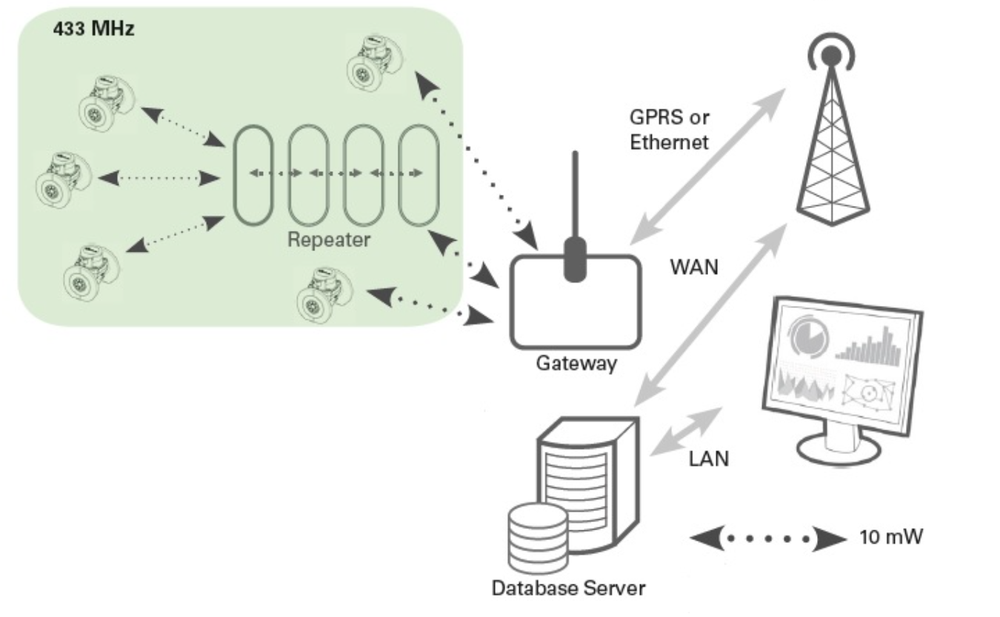

MeiStreamRF Plus Fixed radio network - Remote Access & Monitoring
SensusRF offers two communication modes.
1) Fixed Radio Network
- Auto configuration wizard (gateway sniffing for endpoints and repeaters)
- Integrating repeaters (up to 7 hops in a chain)
- Self-healing network (using alternative routes)
- The meter reading is transparent and local.
- Fast track alarms
- DMA snapshot (snapshot of a water network for evaluation)
- TCP/IP technology for the WAN communication
- High level of data security (end-to-end encryption)
- Enables cloud technologies, FTP, and other remote database applications.
2) Mobile Read - Walk-by / Drive by
- Unidirectional telegrams
- Bidirectional communication
- Spontaneous reception is possible without route.
- Configuration of the endpoint
![Sensus - MeistreamRF - Uni-Bi - Communication](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Uni-Bi_-_Communication.width-1000.png)

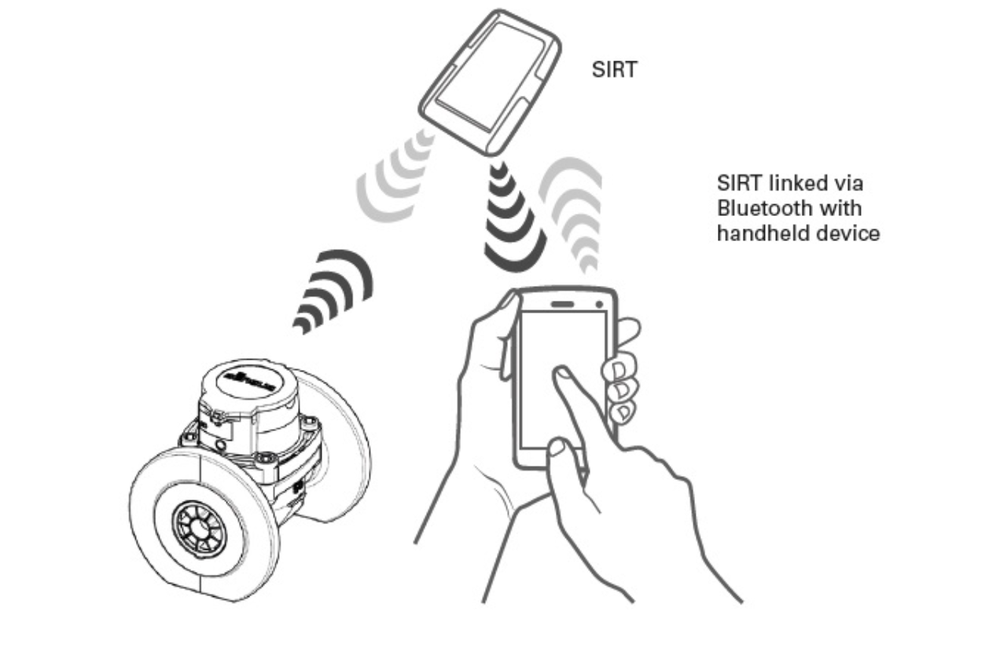

SIRT (Sensus Interface Radio Tool)
SIRT is a radio modem for SensusRF radio, connected to a handheld via Bluetooth and using DIAVASO Mobile Reading software with the following features:
- Installation and readout of devices
- Reception of frequently transmitted radio messages from Sensus RF radio endpoints
- Request additional information from the radio endpoints.
- Change configuration of radio endpoints (alarm, level settings... )

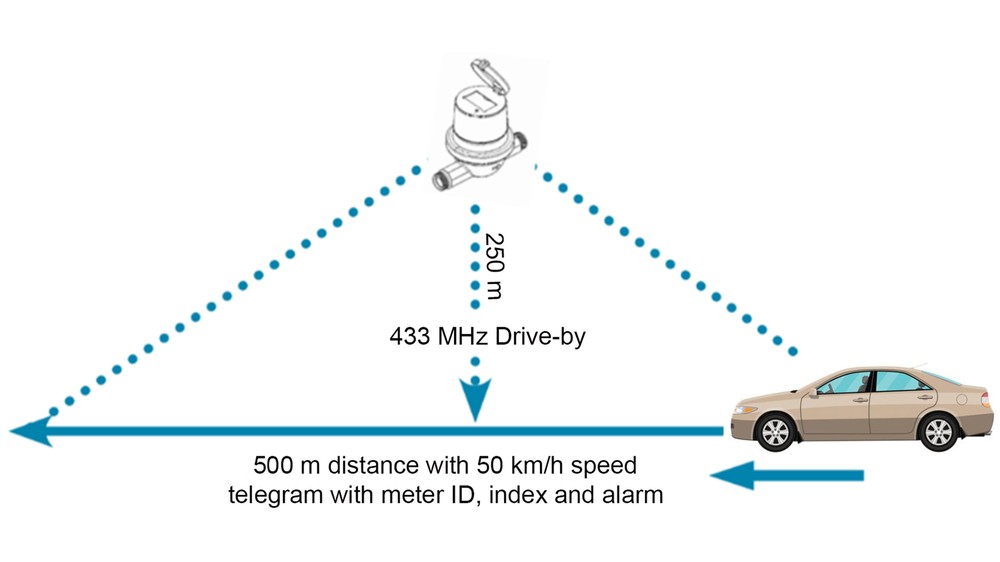

![Sensus_Range_meistream](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Range_-_Image_qlUgcFw.width-1000.jpg)
Technical Specifications
Dial
![Sensus - MeistreamRF - Dial](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Dial.width-1000.png)

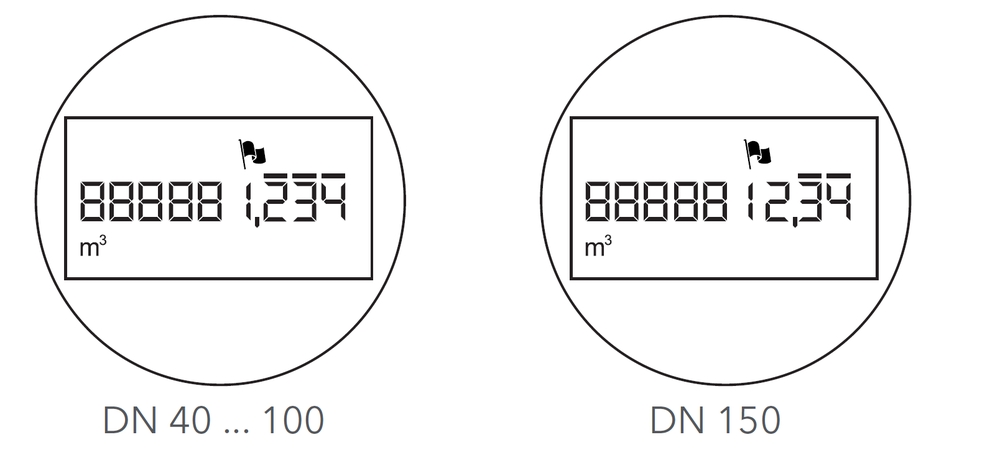

Sensus - MeistreamRF - Dial
![Deeco - Sensus - MeiStream Plus RF - Product Image](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Sensus_-_MeistreamPlusRF_-_Product_Im.width-1000.jpg)
![Sensus - Icons](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Icons.width-1350.png)
Sensus - MeistreamRF - Icons

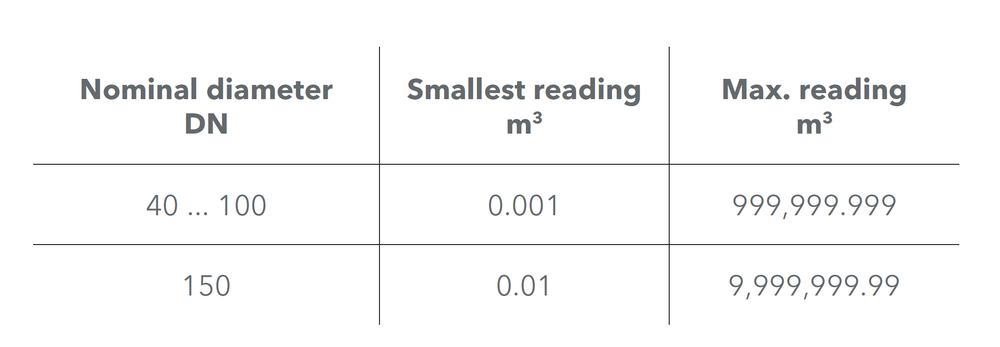

![Sensus - MeistreamRF - Reading](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Reading.width-1000.png)
Dimensional Diagram
![Sensus - MeistreamRF - Dimension Picture](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Dimension_Picture_4LUA.width-1000.png)

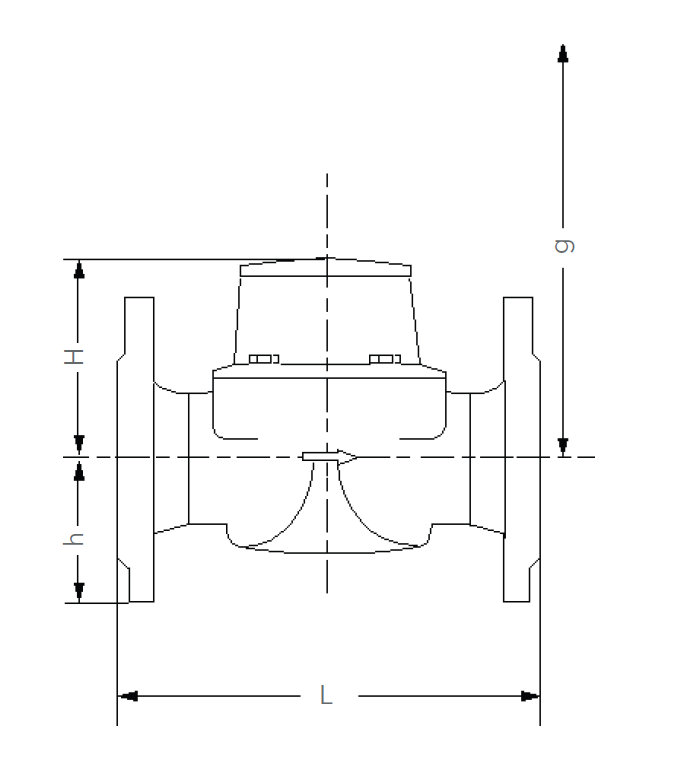

Sensus - MeistreamRF - Dimensional Diagram
Dimensions and Weights
![Sensus - MeistreamRF - Dimensions and Weights](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Dimensions_and_Weights.width-1350.png)

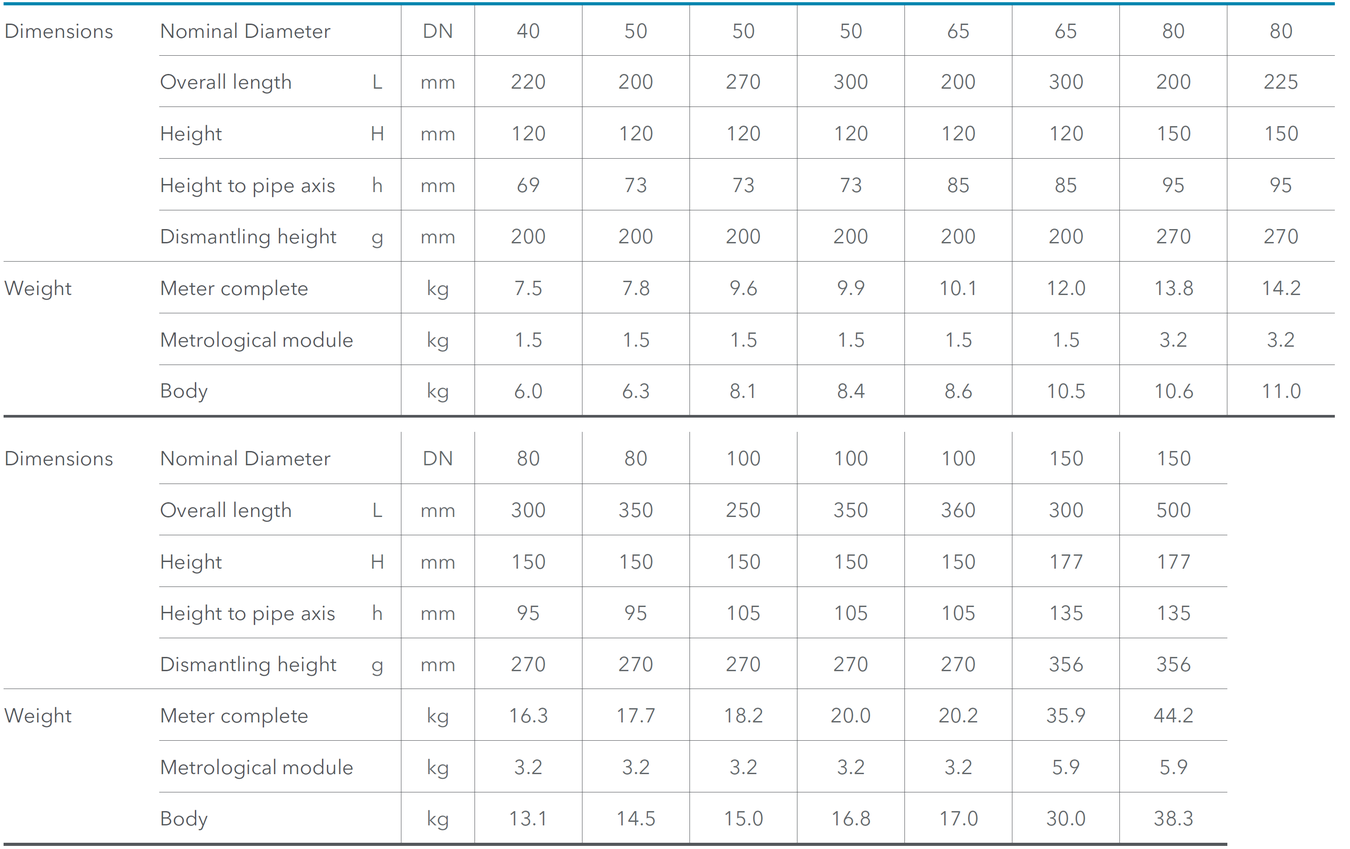

Sensus - MeistreamRF - Dimensions and Weights
Installation
![Sensus - MeistreamRF - Installation](https://deeco-production.s3.amazonaws.com/images/Sensus_-_MeistreamRF_-_Installation.width-1000.png)

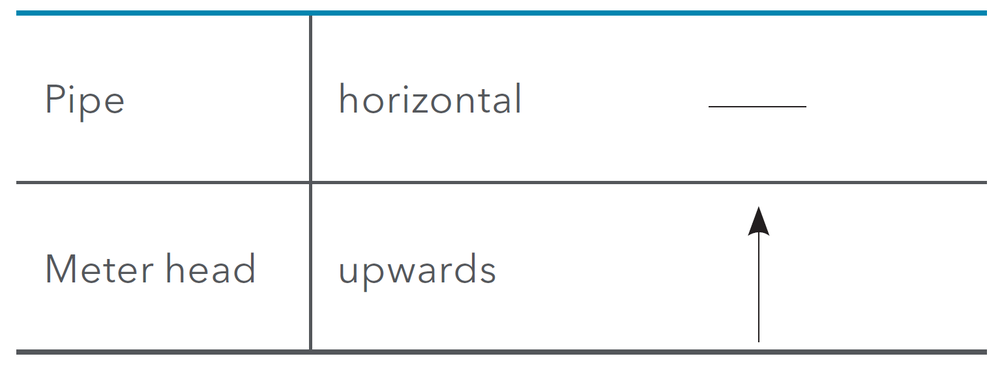

Sensus - MeistreamRF - Installation
Installation Requirements
- Unrestricted straight pipe upstream 0 x DN
- No abrupt restrictions directly downstream of the meter
Spare Parts

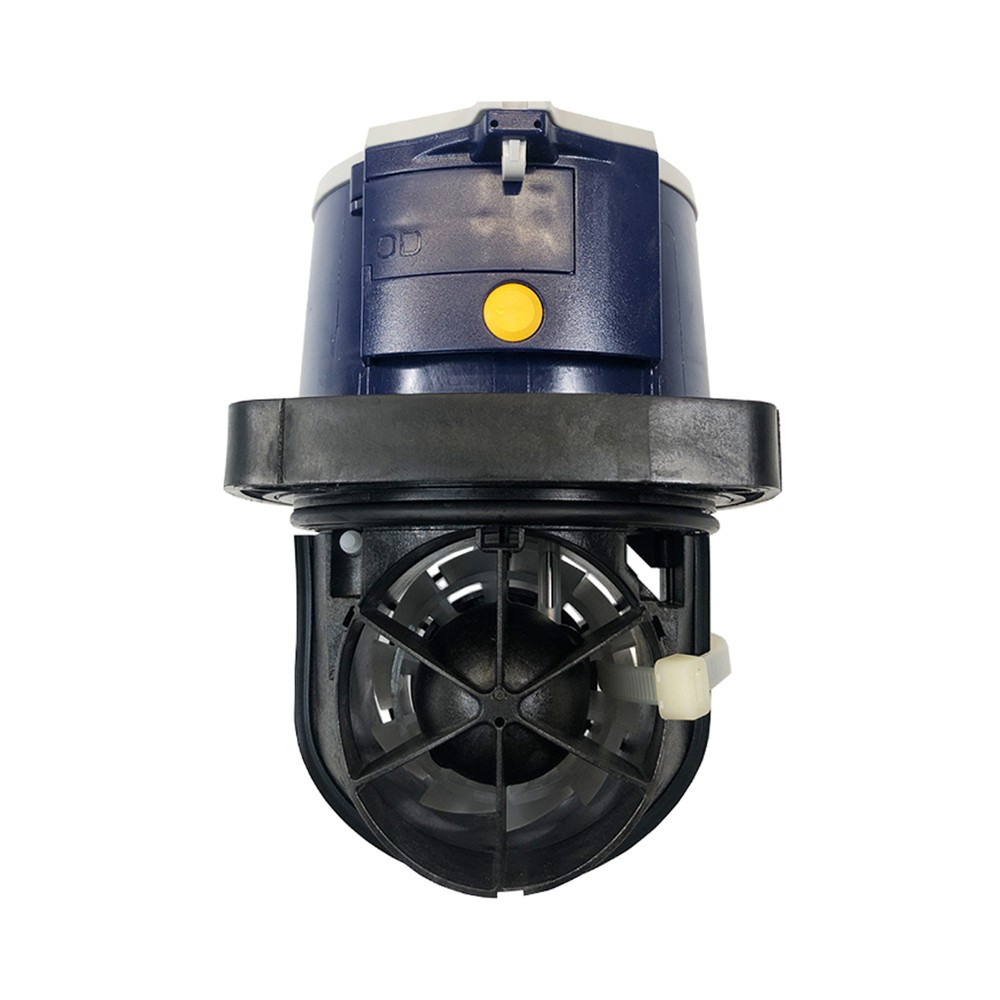

Pre-Calibrated Mechanism Insert for Meistream 'RF' Water Meter
OIML R49:R315
![MS+065M](https://deeco-production.s3.amazonaws.com/images/MS065M_joGU9kl.2e16d0ba.fill-1000x1000.jpg)
Sensus - MS+065M
Product Code | Size | Description |
---|---|---|
MS+050M RF | 50mm | High Accuracy Insert Mechanism with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. |
MS+065M RF | 65mm | High Accuracy Insert Mechanism with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. |
MS+080M RF | 80mm | High Accuracy Insert Mechanism with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. |
MS+100M RF | 100mm | High Accuracy Insert Mechanism with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. |
MS+150M RF | 150mm | High Accuracy Insert Mechanism with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability. |
Sensus - MeiStreamRF Plus - Radio Water Meter
Helical Turbine ‘Radio’ Smart Water Meter. OIML R49:R315
![Deeco - Sensus - MeiStream Plus RF - Product Image](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Sensus_-_MeistreamPlusRF.2e16d0ba.fill-1000x1000.jpg)
Sensus - MS+065RF
Product Code | Size | Description |
---|---|---|
MS+050 RF | 50mm | High Accuracy Water Meter with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability.OIML R49:R315, Q3 25m³/h, Body Length 200mm. |
MS+065 RF | 65mm | High Accuracy Water Meter with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability.OIML R49:R315, Q3 40m³/h, Body Length 200mm. |
MS+080 RF | 80mm | High Accuracy Water Meter with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability.OIML R49:R315, Q3 63m³/h, Body Length 225mm. |
MS+100 RF | 100mm | High Accuracy Water Meter with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability.OIML R49:R315, Q3 100m³/h, Body Length 250mm. |
MS+150 RF | 150mm | High Accuracy Water Meter with Digital Register, Inbuilt Sensus 'RF' for AMR/AMI, and Data Logging Capability.OIML R49:R315, Q3 250m³/h, Body Length 300mm. |
