Talgil - SAPIR 2 - Advanced Irrigation Controller

The SAPIR 2 is the next generation of central control irrigation systems. It allows combining various technologies to suit each project's specific needs.

It is an Internet-enabled controller so the user can control everything from his PC or Smartphone.

The SAPIR 2 is the perfect solution for small to medium irrigation projects with a single irrigation head, suitable for both simple and most demanding applications.

Features and Benefits

Modular & Flexible Hardware

• Maximum 32 outputs - Can be divided between local and radio RTU
• Local on-board:
  • Modular 4/8/12/16 Outputs - 12V DC Latch or 24V AC
  • 8 Digital Inputs - Water meter, fertilizer meters, DP, water level float etc.
  • 4 Analog Inputs - Pressure Sensor, ultrasonic water meter, soil moisture etc.
• Radio RTU - License free, up top 3km (30km with repeaters)

Irrigation:

• Up to 16 irrigation programs
• One Irrigation Line
• Water dosage by Time, Volume, Volume per area and ET
• Irrigation by days of the week or cycle of days
• Single-cycle or pulse irrigation
• Start: By time, condition, manually
• Flexible programming - Valve by valve, groups by group or a combination of both.
• Main valve operation delayed, advanced, or together with the irrigation valves.

Fertilization:

• Up to 4 fertilizers and booster control
• Fertilization modes: Time (hh:mm:ss), Volume (Litres), Concentration (L/m3) and Proportional volume.
• Three-stage fertigation: Pre-watering, injection, and post-watering

Backflush:

• Flushing by time, by DP or both
• Definable parameters: Flushing interval, Pre dwell time, Dwell time, Flushing time, PD delay.
• Endless looping detection and prevention.
• Accumulation of flushing cycles by time and by PD.

Alarms:

• High flow, Low flow, Water leakage, Low pressure
• Fertilizer leakage, No pulses from fertilizer injector
• PD sensor failure
• Low battery, No AC

Communication:

• Smartphone application – DREAM SPOT. From any device on any operating system.
• Wi-Fi, 4G Modem
• Push alarm notifications to user's phone
• Remote firmware upgrade (OTA).

Full integration, monitoring, and command of:

• Water Systems - Water sources – 1
  • Pump - On/Off Control (Including duty selection), Mainline Pressure Monitoring, and Pump/System Faults.

  • Solenoid Field Valves - On/Off Control, High/Low Water Flow, Water Usage.

  • Flow Meter - High/Low Water Flow, Water Usage (per Zone/Meter/Specified Area), Leak/Burst Alerts.
  • Tank/Dam Level - Including automatic filling. With volume optimisation based on resource consent limitations.
  • Spray/Stock/Domestic Water - On/Off Control of Pump, High/Low Water Flow, Water Usage, Leak/Burst alerts.

• Frost Systems
  • Automated frost protection system triggered by temperature sensor or switch.

• Filtration Systems
  • Backwash Valve control, Pressure Differential monitoring.

• Fertigation Systems
  • pH / EC, fertiliser meters, proportional dosing, bulk/time injection.

• Waste Water
  • Waste Water disposal via irrigation based on tank/ pond level, Tank Level monitoring, and pH level monitoring.

• 4-20mA, 0-5V, SDI Sensors and Weather Stations
  • Including soil moisture, air temperature, complete weather stations and many more.
  • Automated irrigation based on soil moisture sensor thresholds or ET

Additional Features & Accessories

• Advanced Mobile Software - Spot App
• Powerful Analytical Tools
• Wi-Fi - Local connection
• Modular hardware
• API ready – communicates with all 3rd Decision-making systems
• and much more!

Typical Applications

• Monitoring, analytical planning, and irrigation control tools
• Monitoring/controlling climate and other environmental parameters
• Providing farms in remote areas with remote control over cellular communication

• Construction Materials: UV Resistant ABS
• Temperatures: Ambient: -17 to +60ºC; Storage: -30ºC to +70ºC
• Protection Rating: IP67, NEMA X4

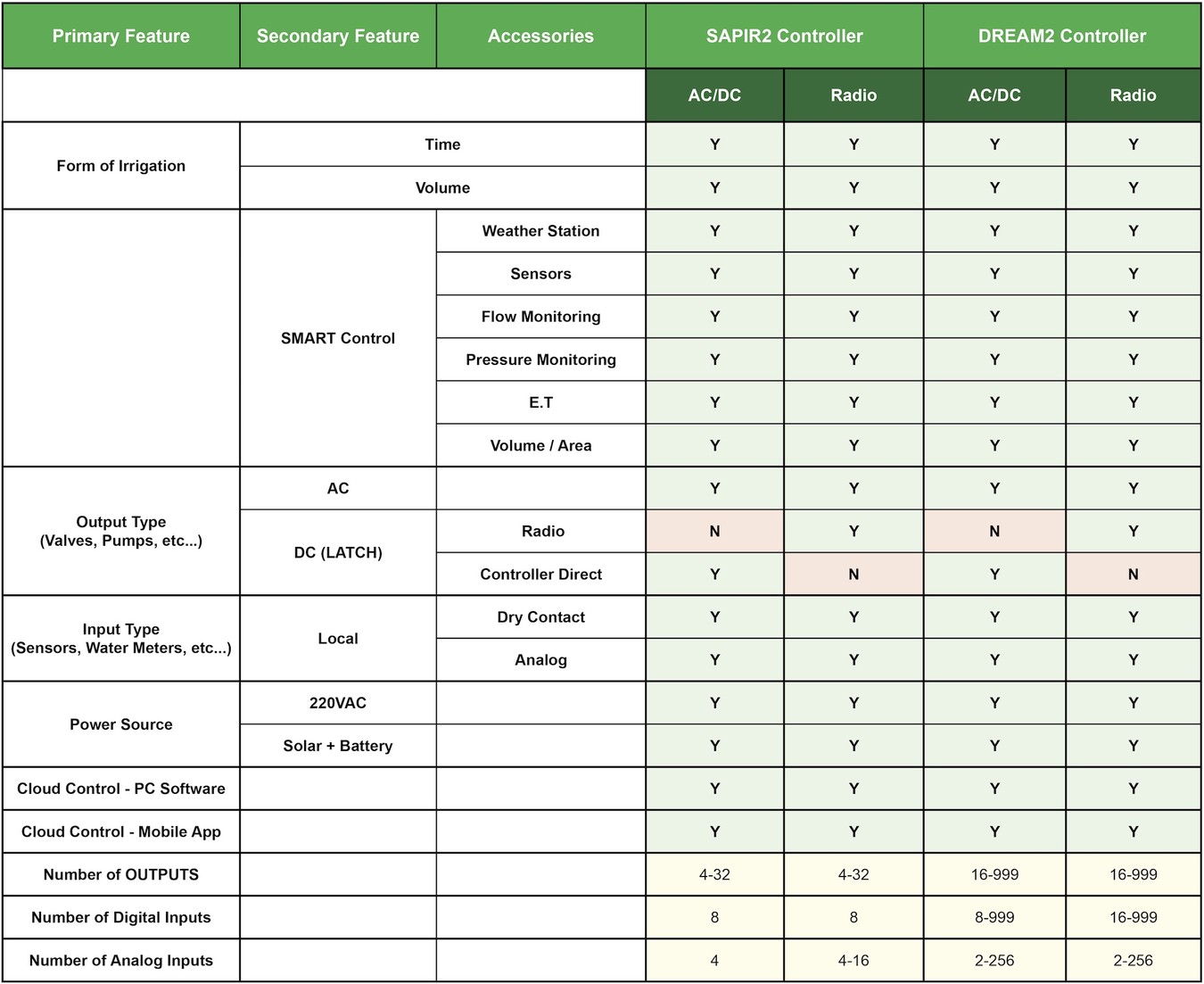

Configuration Options

Connectivity with the field's control components

• Connectivity with the field's control components:
  • Local AC or DC digital and analog I/Os

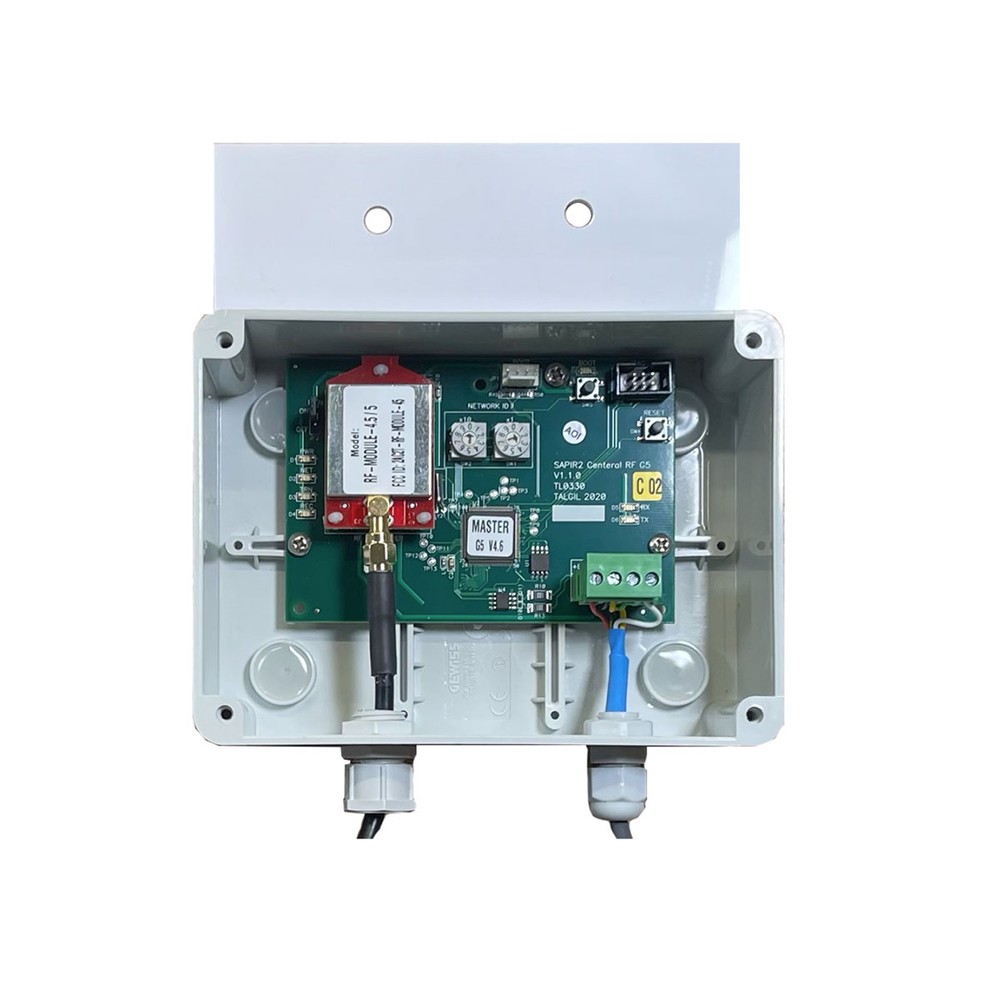

  • Radio RTU
    • RTUs with various digital and analog I/Os

Connectivity with the Cloud

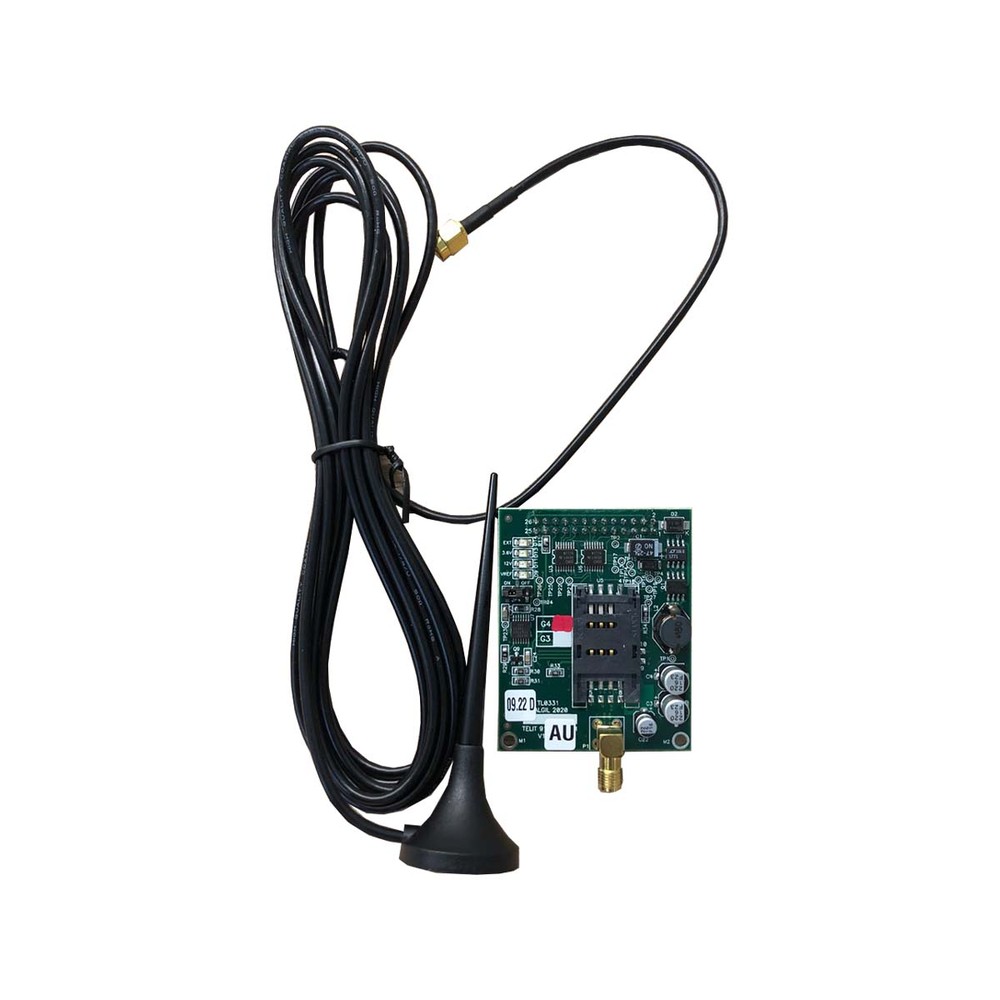

• 4G Cellular Modem
• Local Wi-Fi connection

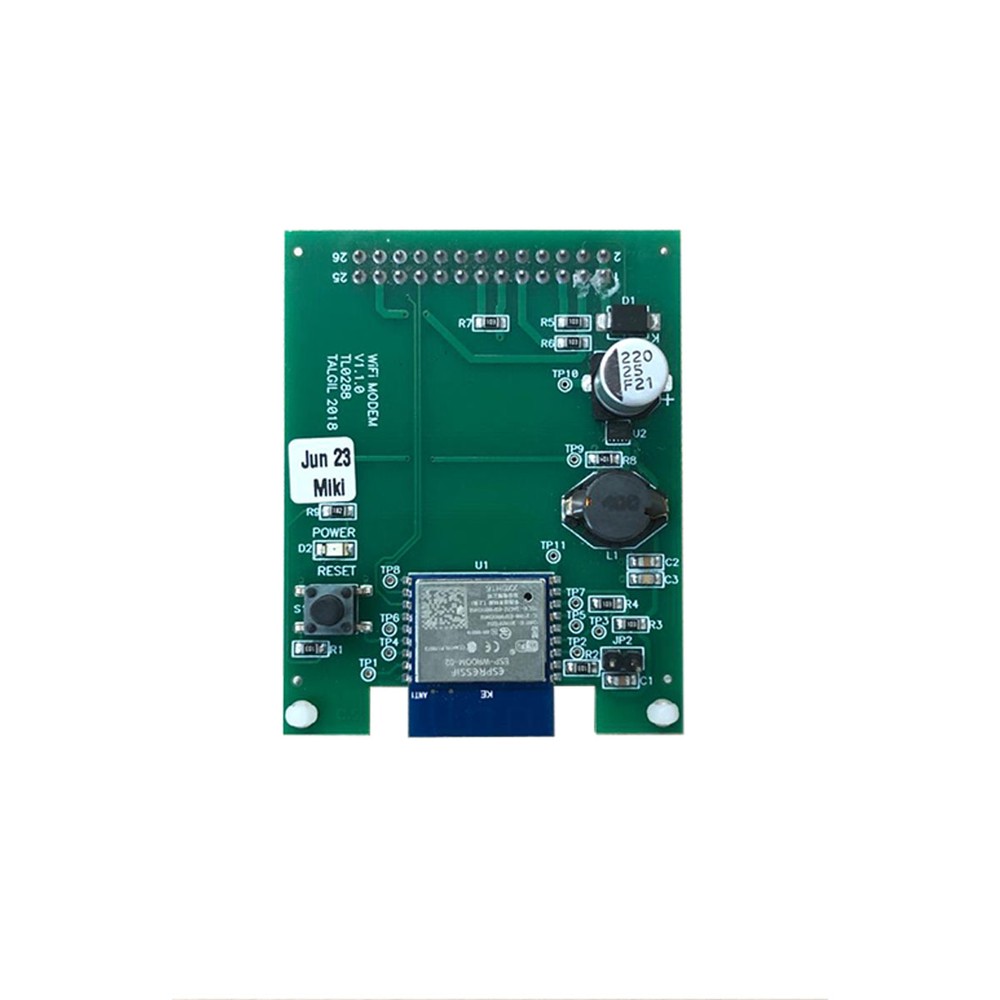

• External Wi-Fi Module

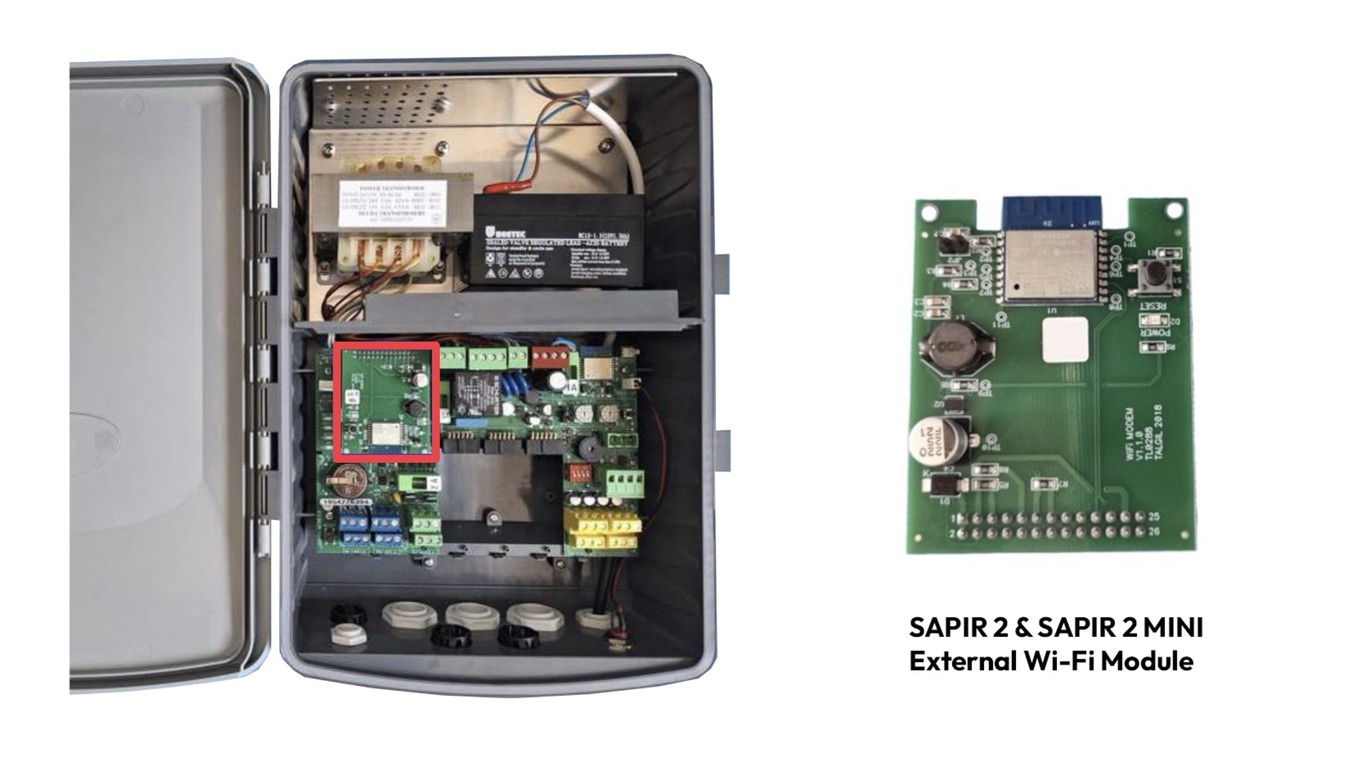

The new Wi-Fi card allows the SAPIR 2 / SAPIR 2 MINI to connect to the internet via Wi-Fi.

• The Wi-Fi card is installed in the same place as the cellular modem
• The configuration of the Wi-Fi network is done using the TOOLBOX App

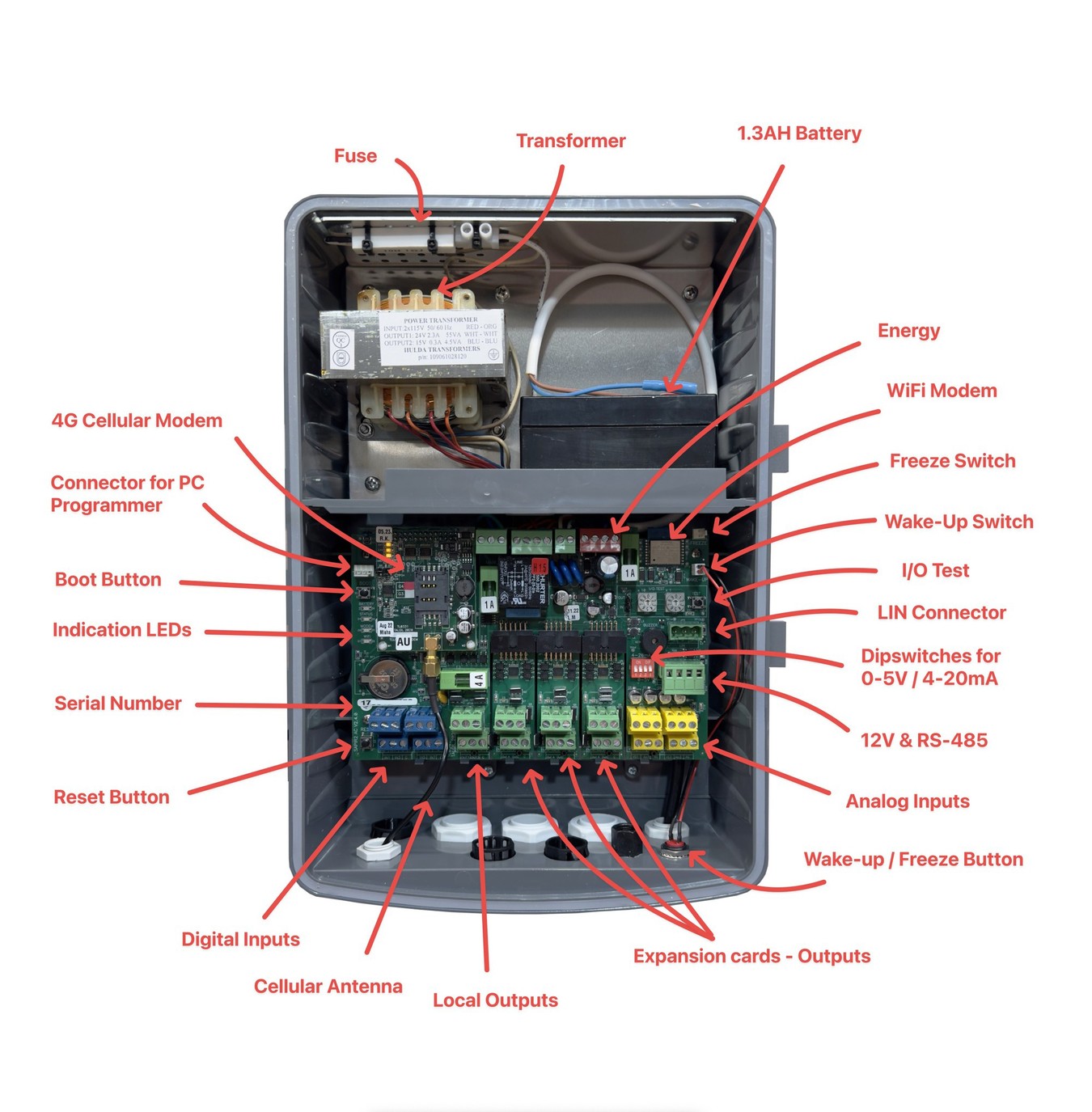

SAPIR2 Versions & I/O

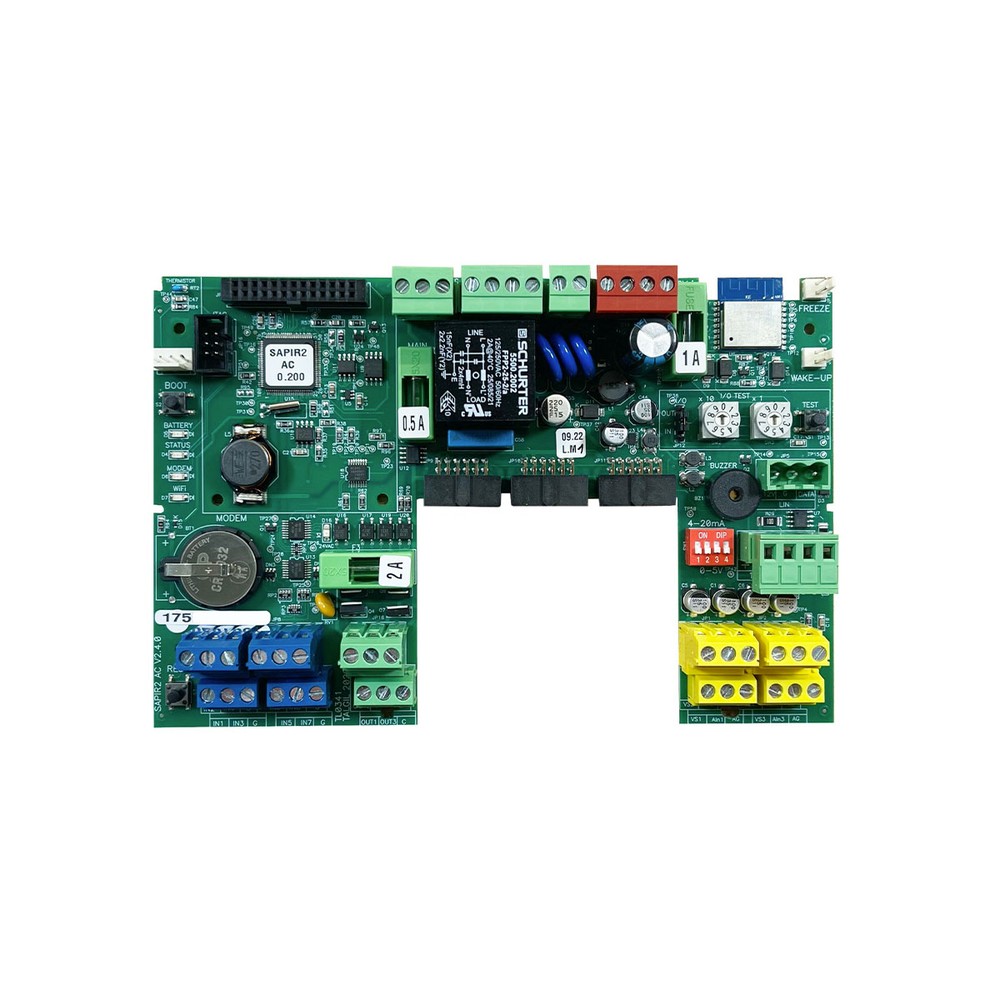

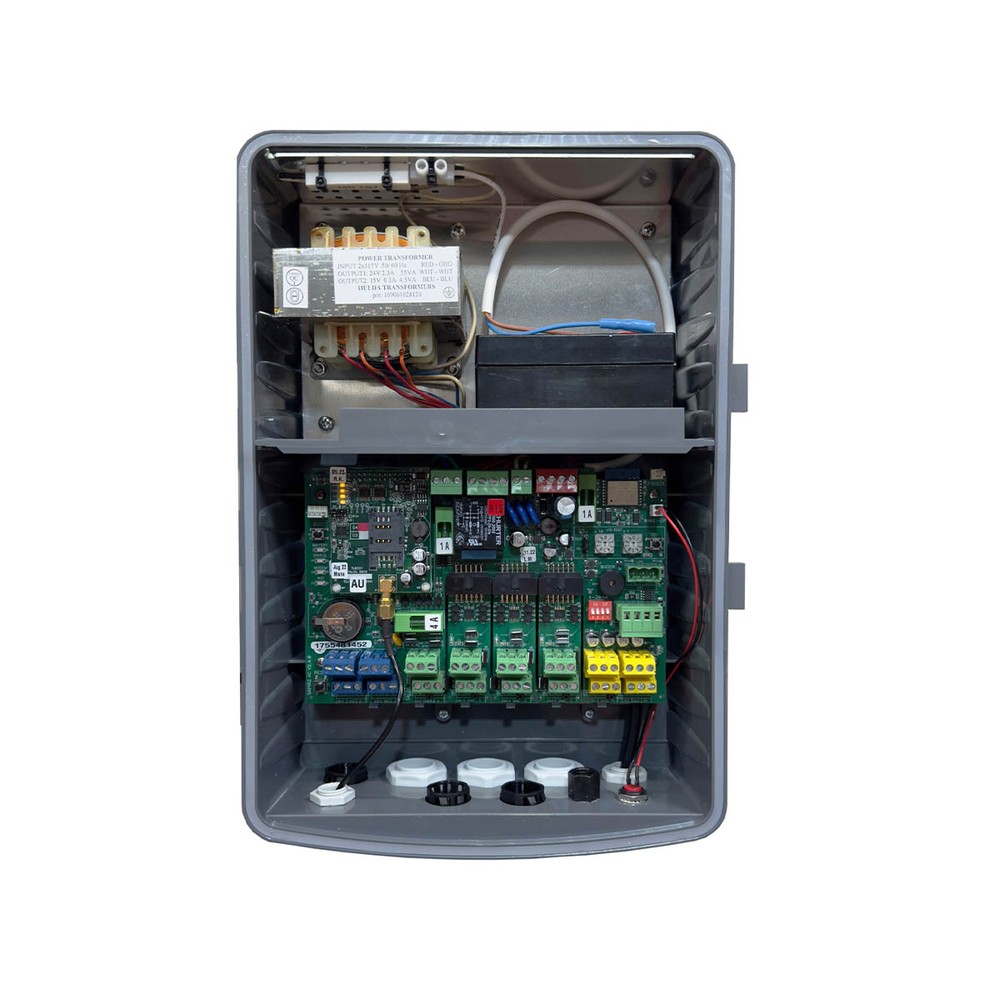

AC version – Can be powered directly from mains, using the internal 220V / 110V to 24V AC transformer and a rechargeable battery.

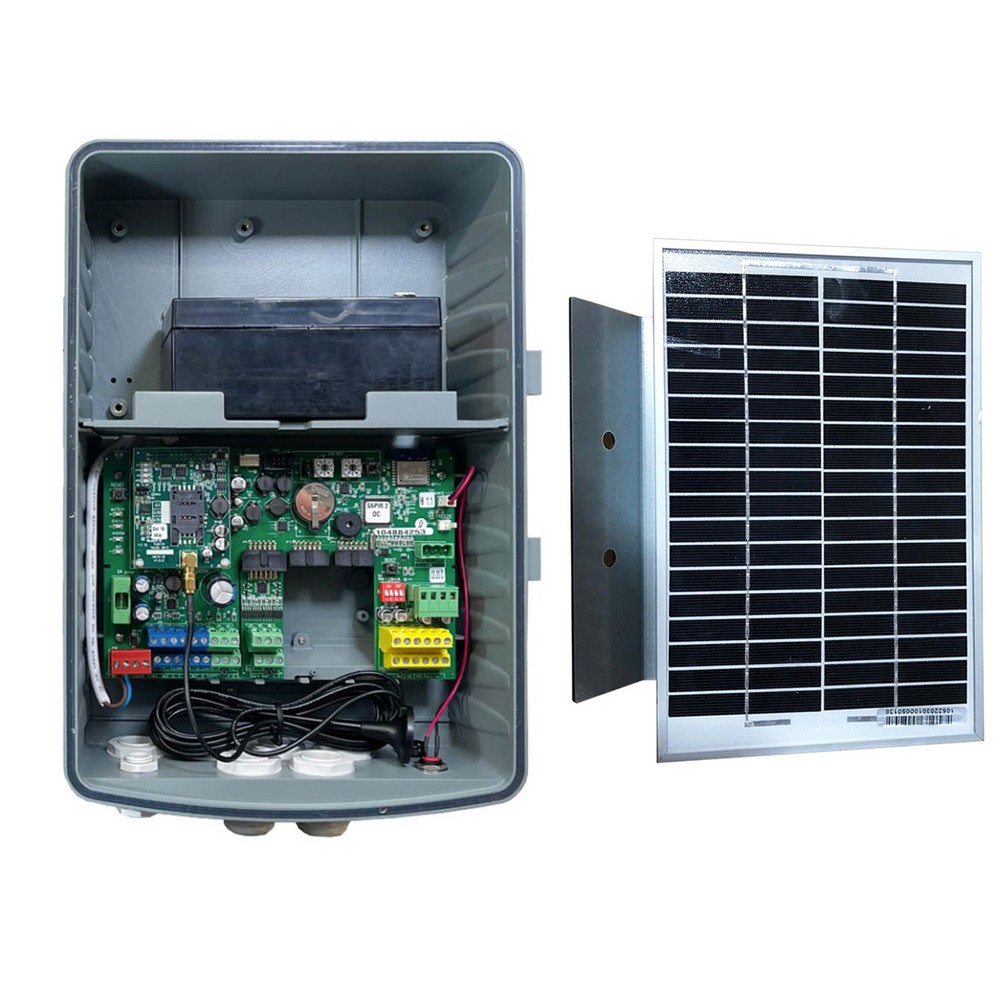

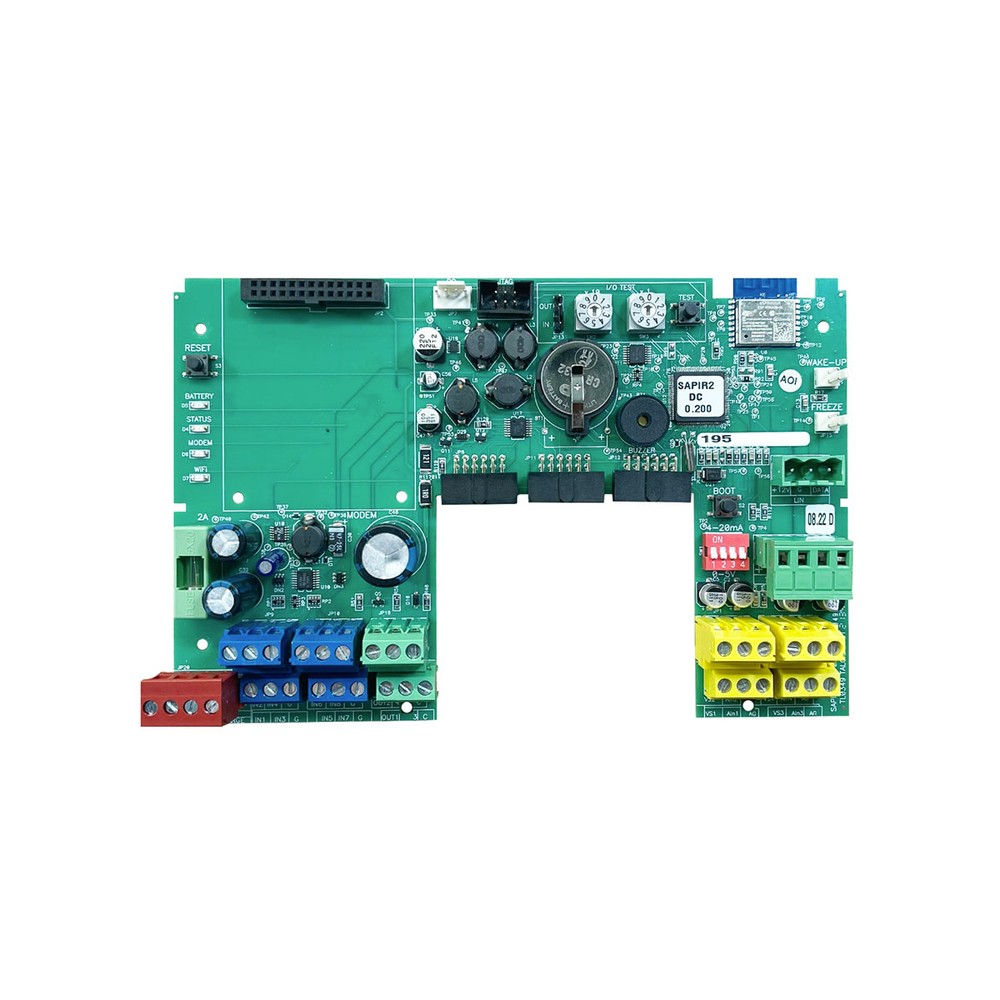

DC version - can be powered via a 20W Solar panel and 1.3Ah rechargeable battery.

The SAPIR2 has a very flexible hardware option, and therefore, there are many combinations for expanding the number of output/inputs / analog inputs in the system.

The SAPIR2 has a flexible hardware option, and therefore, there are many combinations for expanding the number of output/inputs / analog inputs in the system.

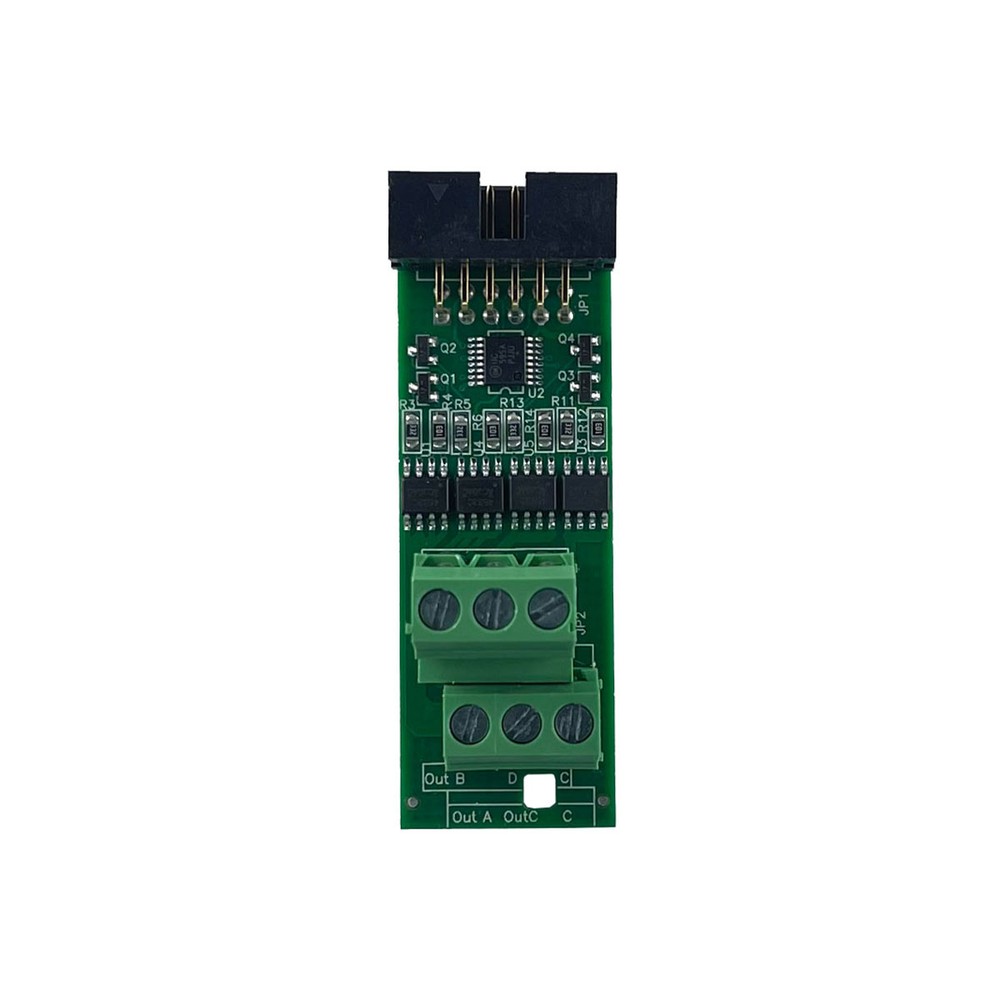

• Outputs:
  • The maximum number of outputs is 32

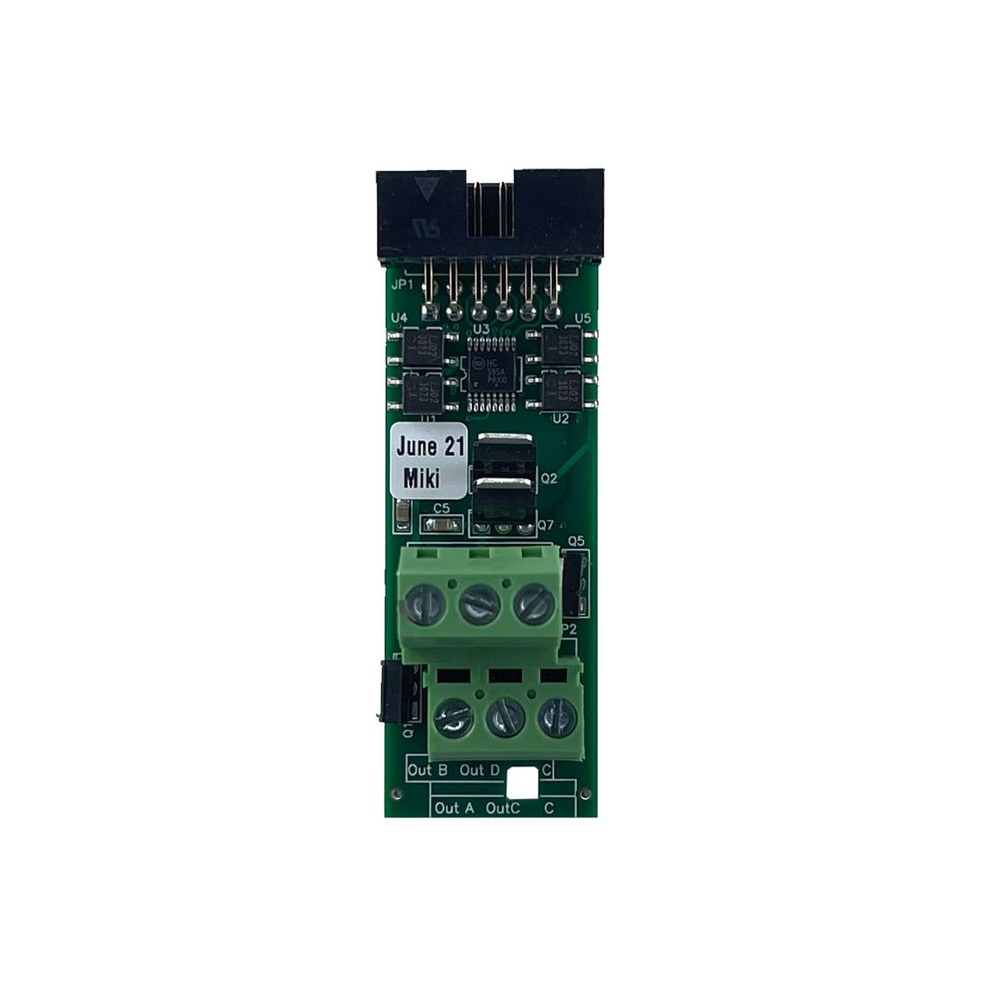

AC version – 24V AC solenoids
DC version – 12V DC latch solenoids

• Digital Inputs:
  • The maximum number of digital inputs is 32.
  • 8 Local inputs
• Analog inputs:
  • The maximum number of analog inputs is 48.
  • 4 … Local analog inputs
  • 4-20 mA / 0-5V

Additional Outputs / Digital inputs / Analog inputs can be added using radio RTU.

Programming is done easily:

• Remotely via the internet using the SPOT App
• Remotely via the internet using the CONSOLE PC software.
