Azud - Helix - Manual Disc Filters

Deeco - Azud - Helix - Product Image
Brand: Azud
Category: Filtration, Manual Filters
Filtration Degree:

5-400 micron

Product Description

AZUD HELIX SYSTEM is a range of manual filters for the exclusive use of water filtration for irrigation, based on minimum maintenance and maximum filtration safety.
AZUD HELIX System. Clogging retarding device.
Optimization of performance and minimum frequency and intensity of maintenance work.

Features and Benefits

  • AZUD HELIX System: Clogging retarding device. Optimization of performance and minimum frequency and intensity of maintenance work.
  • Disc filtration, maximum safety: Its studied design and manufacture guarantee a long service life, resistance, and filtration quality. High filtering surface. Filtration grades from 5 to 400 micron.
  • Modularity, Versatility, and Compatibility: The system permits a wide range of flows and configurations using a minimal number of components.
  • Low maintenance: Simple with no tools required. the maximum wear resistance of high-quality moving parts.
  • The exclusive butterfly system: It is used for locking the filter elements and allows for easy decompression of the disc stack during backwash. It also allows easy handling and disc maintenance.
  • Water and energy saving.

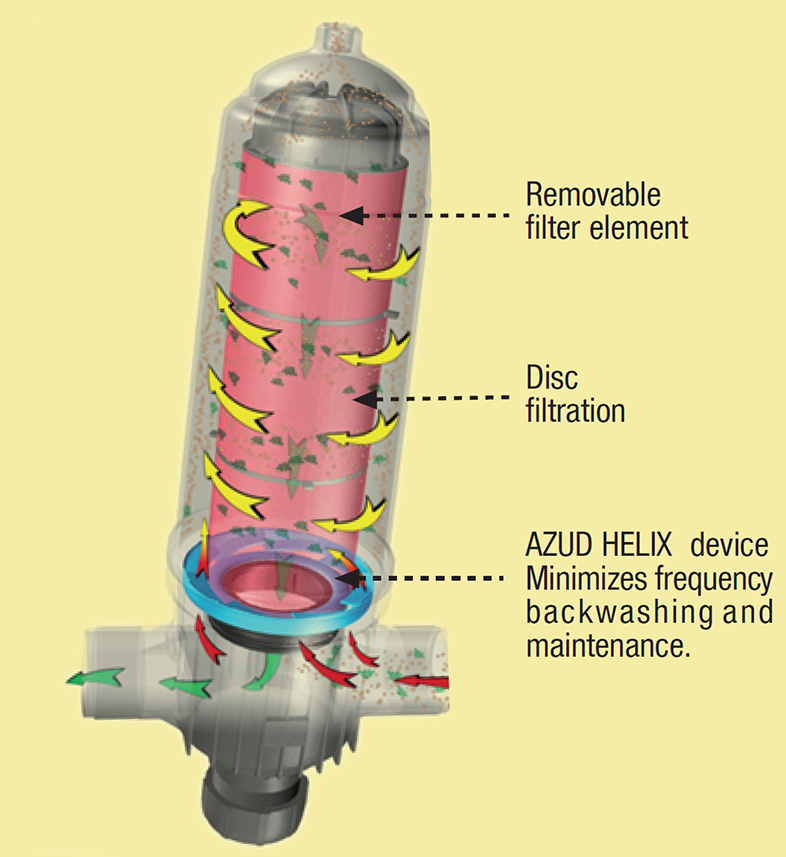

Technology

Deeco - Helix - Technology

Filtration Stage: The helix technology generates a centrifugal effect that pushes the particles in the dirty water away from the discs.
Keeping the larger particles away from the discs has two major advantages.

  • It decreases the frequency of backwashing, thus minimizing the amount of water used.
  • Allows the discs to concentrate on the removal of finer particles.

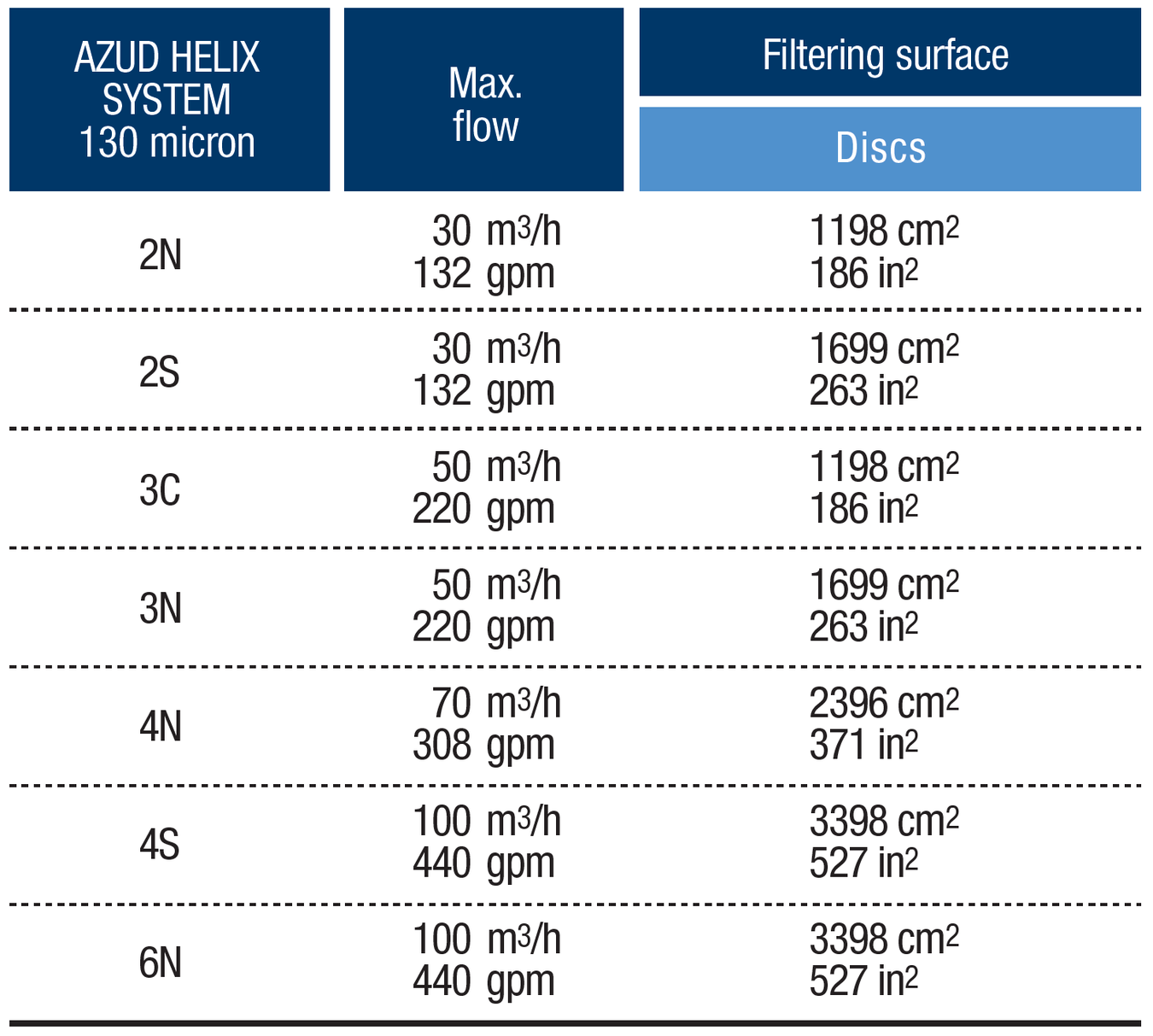

Technical Data

Deeco - Helix - Technical Data

Other filtration degrees are available on request.

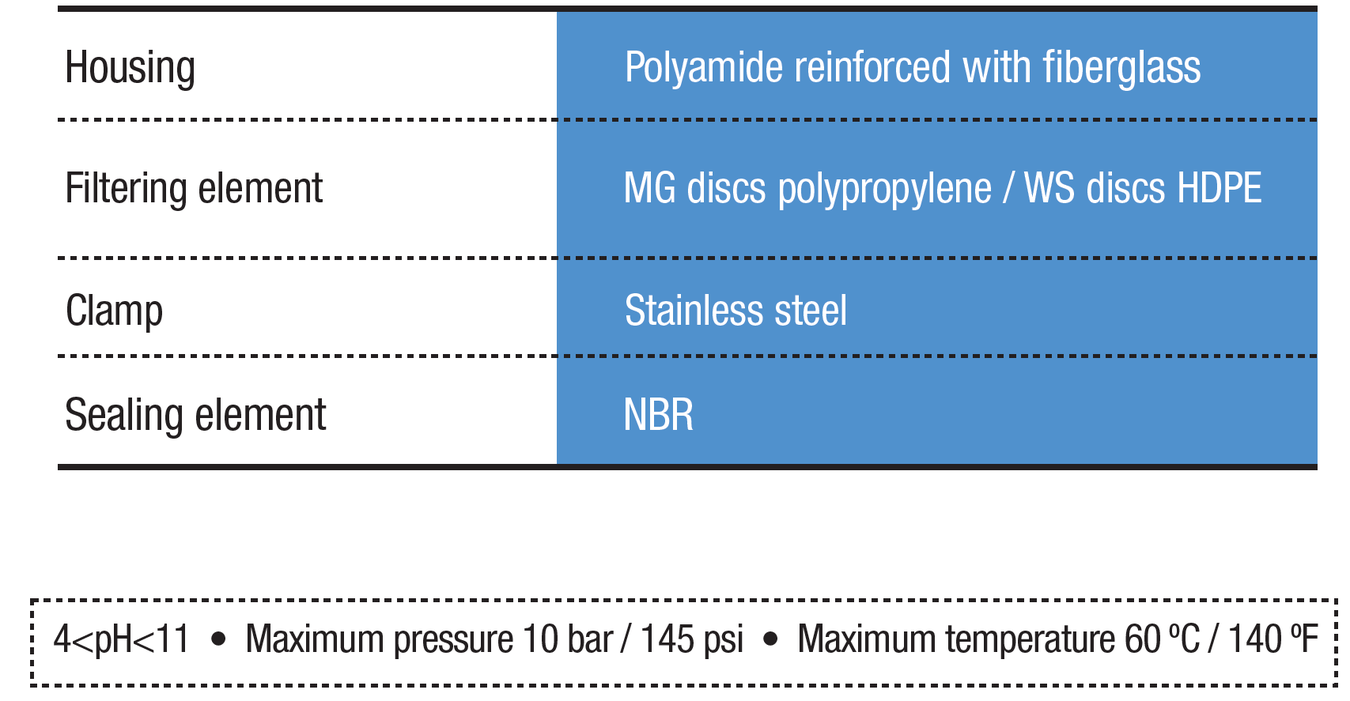

Construction Materials

Deeco - Helix - Construction Materials

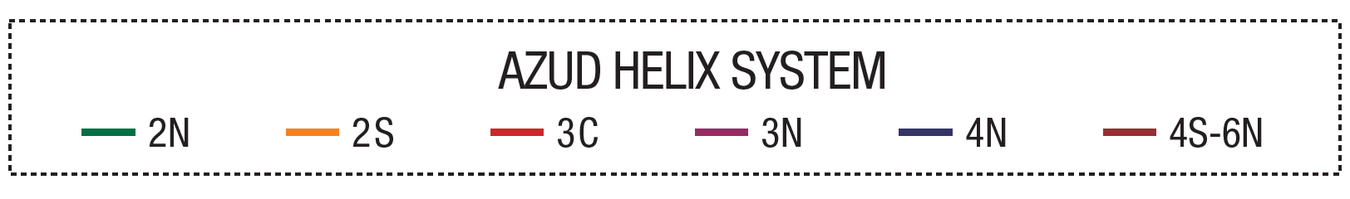

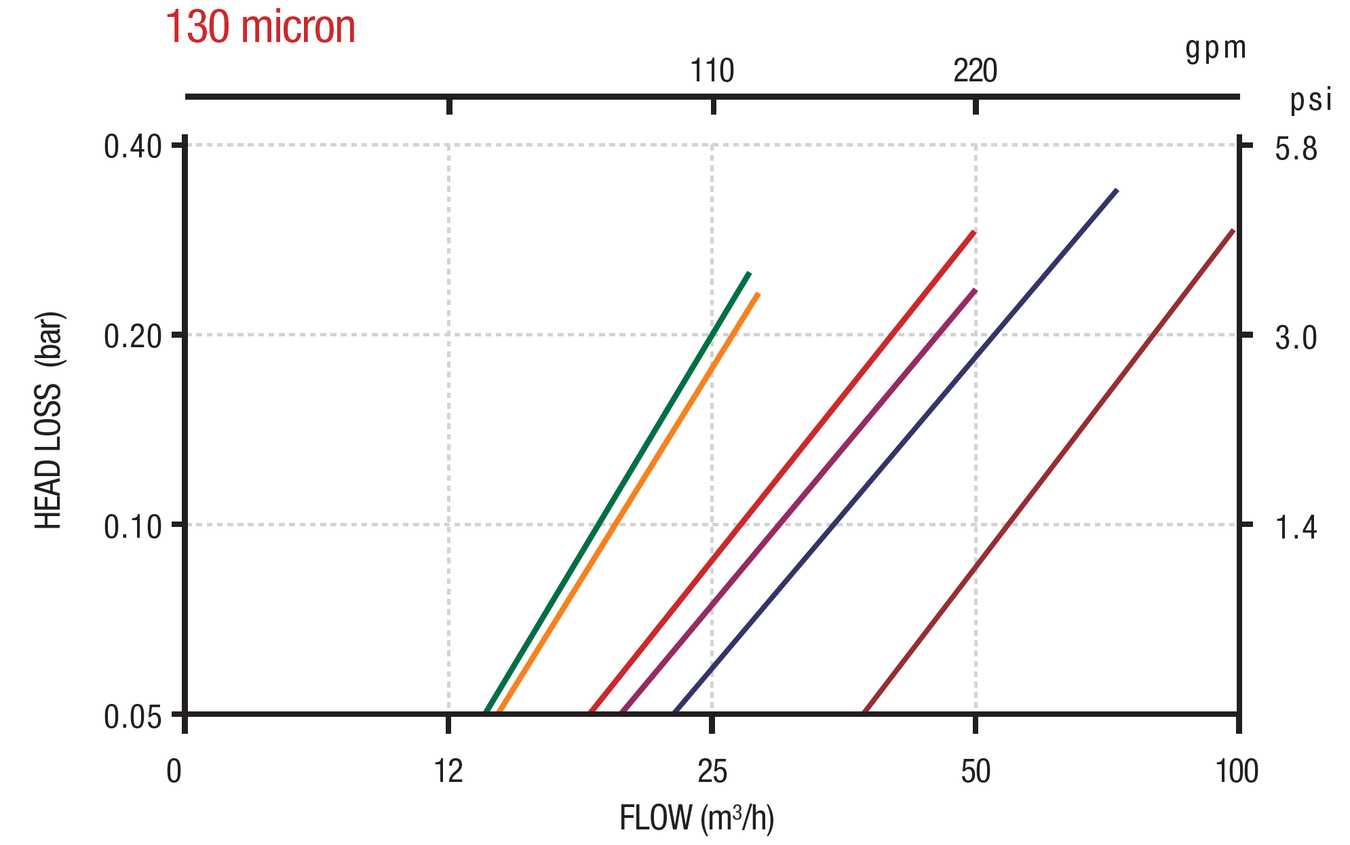

Head Loss Graph

Deeco - Helix - Head Loss
Deeco - Helix - Head Loss1

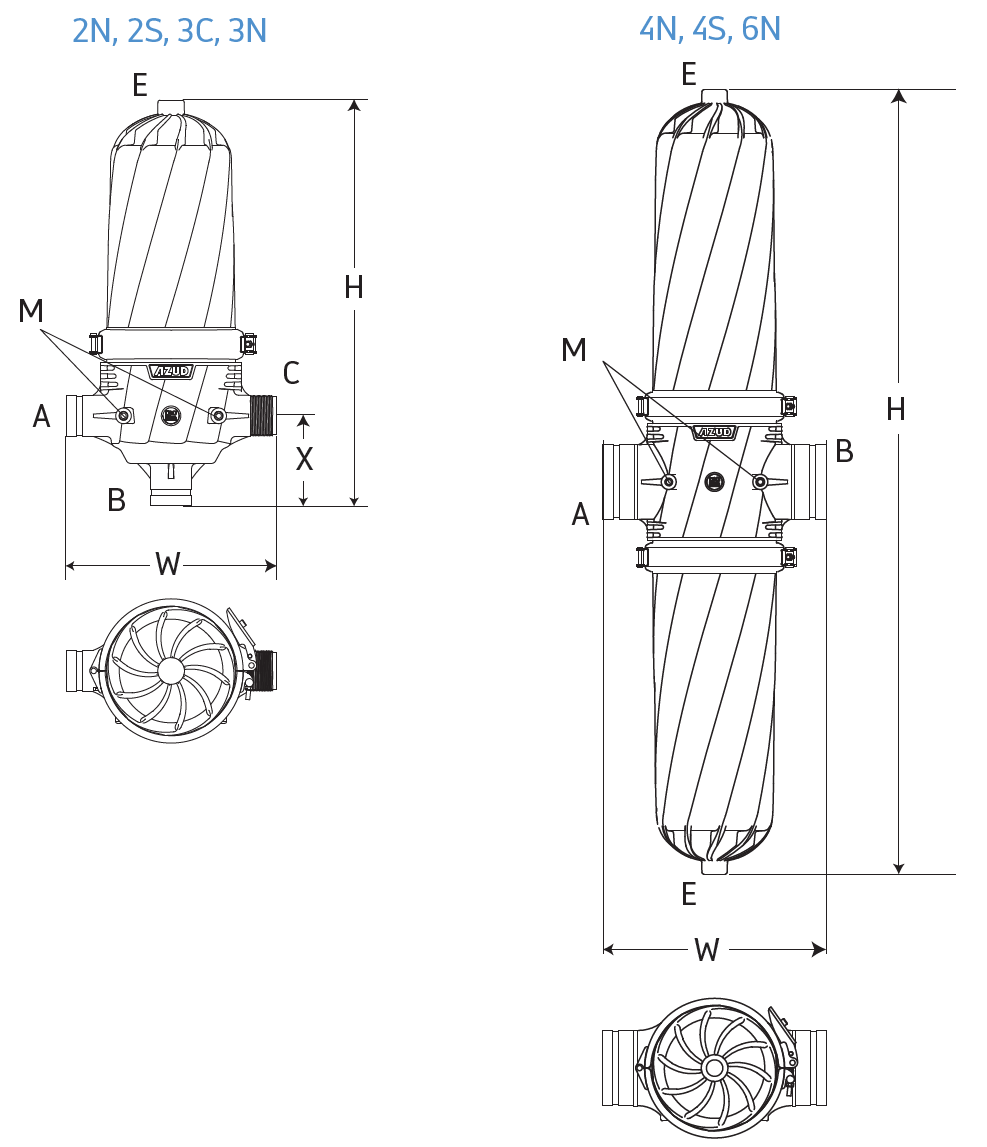

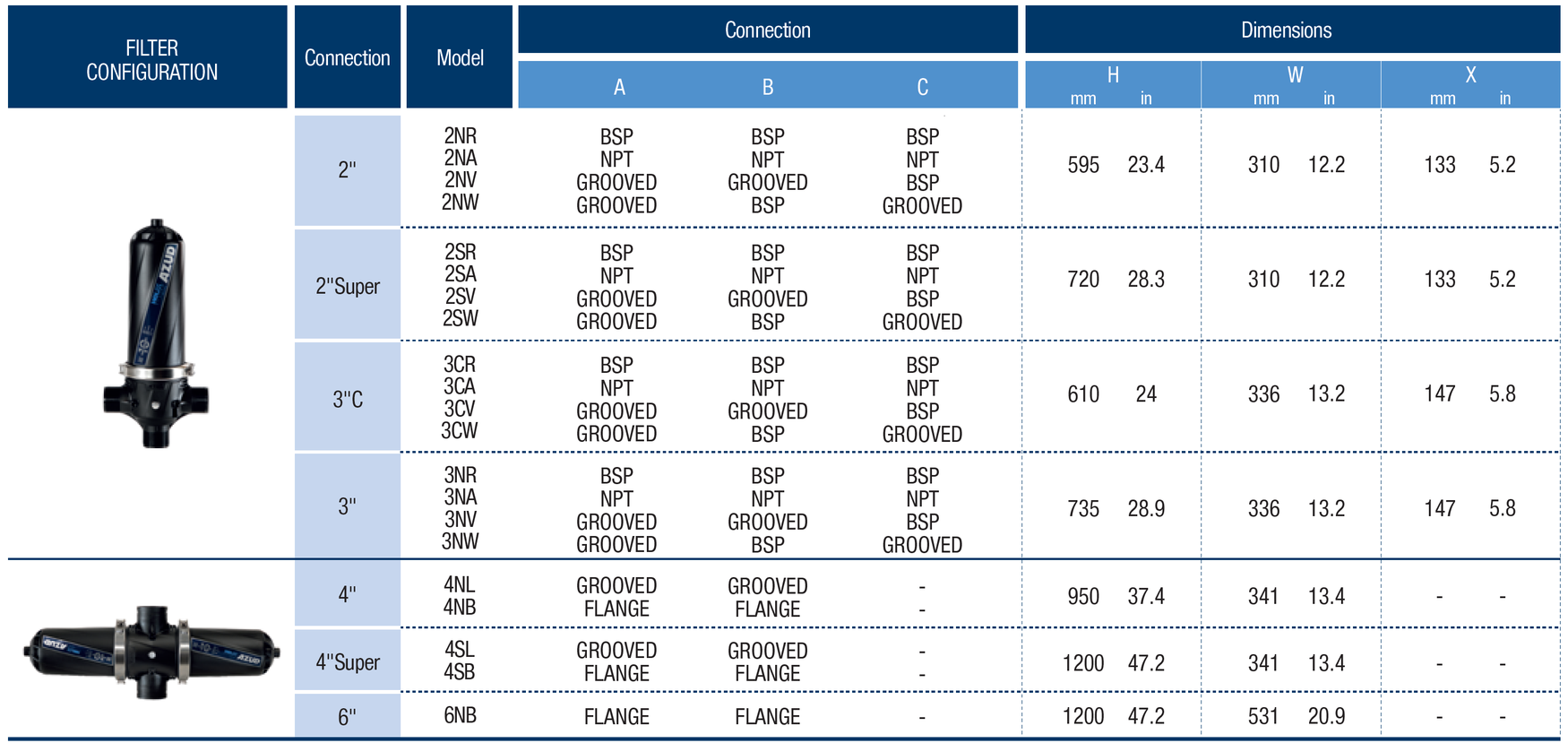

Dimensions and Weights

Deeco - Helix - Drawing
Deeco - Helix - Dimensions and Weights

Connection E 3/4' BSP
Connection M 1/4" BSP

Azud - Helix - Manual Disc Filters

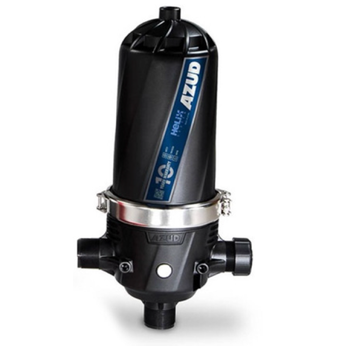

AZUD - helix
Product Code Size Pressure Rating Description
17A2NR-XXX 50mm 10 Bar HELIX Manual Disc Filter 130, 200 or 400μm - BSP Threaded
17A3NR-XXX 80Smm 10 Bar HELIX Manual Super Disc Filter 100, 200 or 300μm - BSP Threaded
17A4NB-XXX 100mm 10 Bar HELIX Manual Disc Filter - Flanged
17A4SB-XXX 100Smm 10 Bar HELIX Manual Super Disc Filter - Flanged

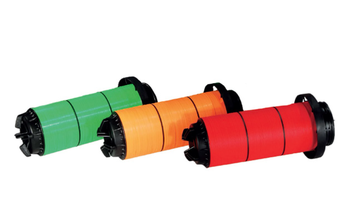

AZUD - helix- elements
Product Code Size Description
17C2R0 50mm Multi Groove Disc Element 100, 130, 200 or 400μm
17C3R0 80mm Multi Groove Disc Element 100, 130, 200 or 400μm
17C2R0-2-XXX 100mm Multi Groove Disc Element 100, 130, 200 or 400μm (2x sets for twin filter)
17C3R0-2-XXX 100Smm Multi Groove Disc Element 100, 130, 200 or 400μm (2x sets for twin filter)
