Azud - Modular 100 - Manual Filters

Deeco - Azud - Modular 100 - Product Image
Brand: Azud
Category: Filtration, Manual Filters
Filtration Degree:

100-530 micron

Product Description

AZUD MODULAR 100 is the range of manual filters for exclusive use in water filtration for irrigation, made of plastic material that ensures easy handling, high resistance, and durability for flow rates up to 25 m3/h (110 gpm).

Features and Benefits

  • Highest quality and safety: Filtration In a wide range of filter grades in discs and meshes.
  • Disc filter element with threaded closure for easy handling: This ensures the compression of the discs and prevents accidental loss.
  • Screen filter element: Manufactured in plastic and stainless steel.
  • Large filtering area results in less maintenance: Allows for a reduction in the frequency and level of maintenance. The filter elements can be removed for cleaning.
  • Robustness: Base and lid manufactured in high-quality thermoplastic.
  • Threaded closure system: Efficient from low to high pressures.
  • Gasket set in the lid: This avoids loss or wear during maintenance.
  • Equipped with auxiliary connections:
    • The lid has threaded connections, which allows easy draining or pressure relief.
    • Ports for pressure gauges.
  • Easy Handling: no tools required for maintenance
  • Easy installation
  • Resistance to chemical products: with special gaskets

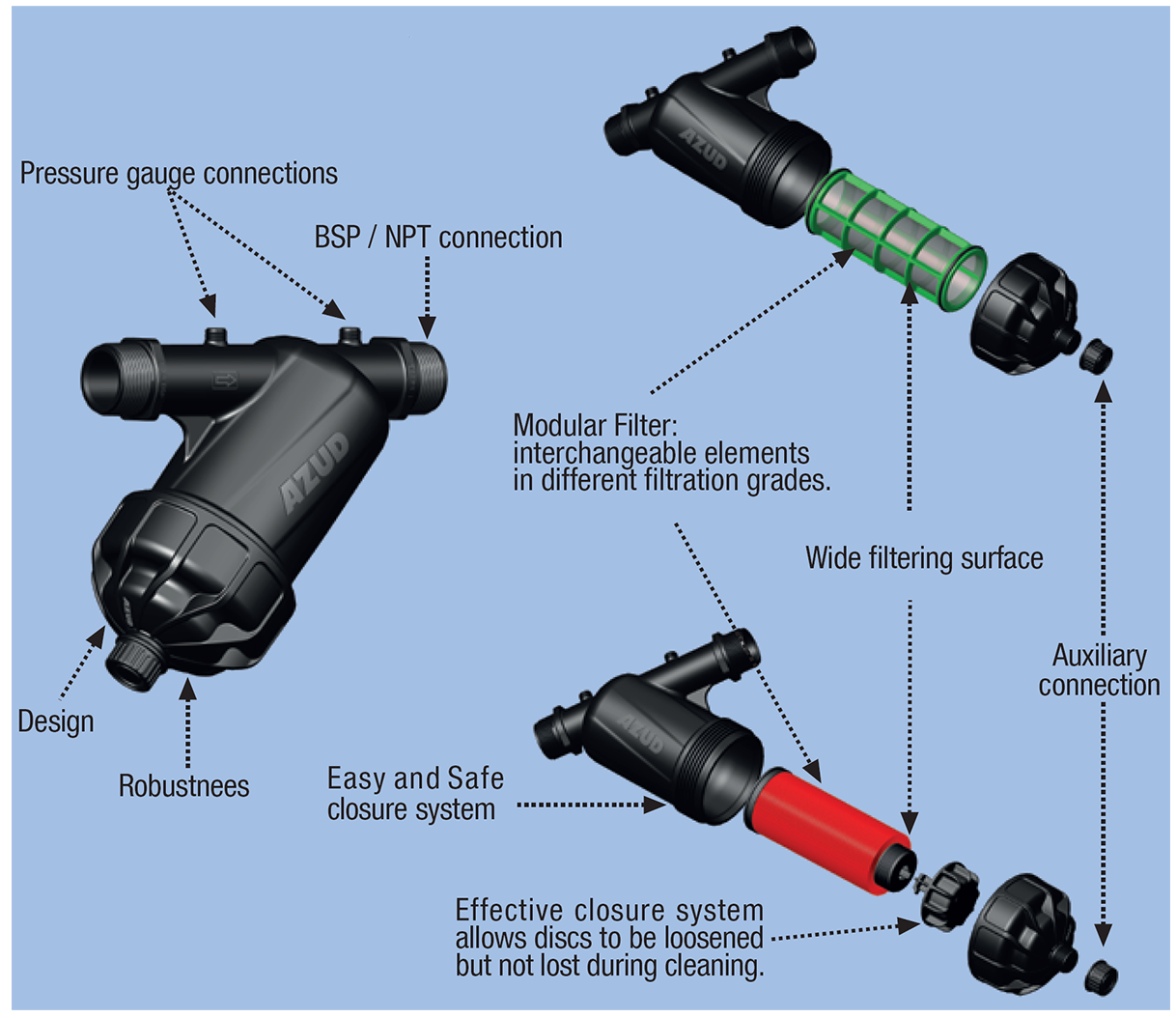

Technology

Deeco - Modular 100 - Technology

Technical Data

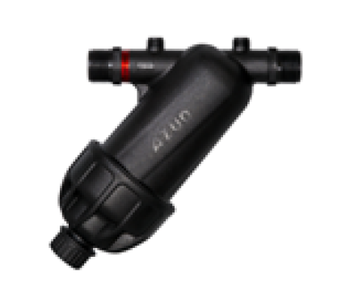

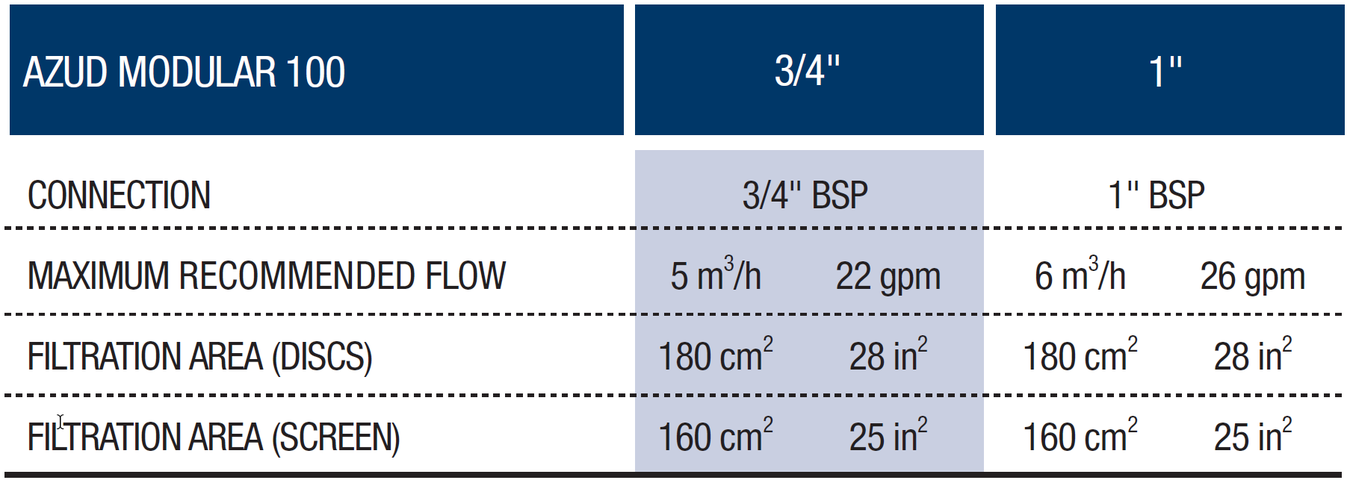

Azud Modular 100 3/4" & 1"

Deeco - Modular 100 - Image 1
Deeco - Modular 100 - Technical Data 1

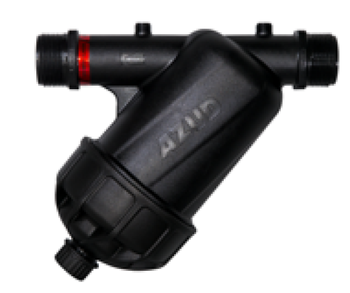

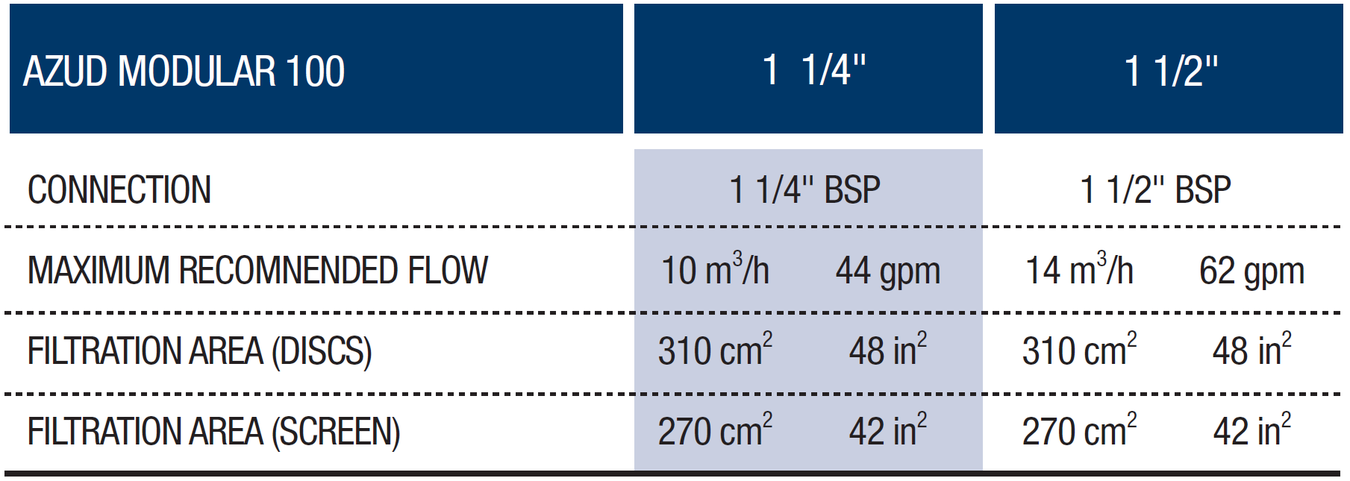

Azud Modular 1 1/4" & 1 1/2"

Deeco - Modular 100 - Image 2
Deeco - Modular 100 - Technical Data 2

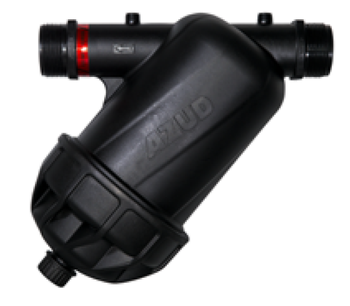

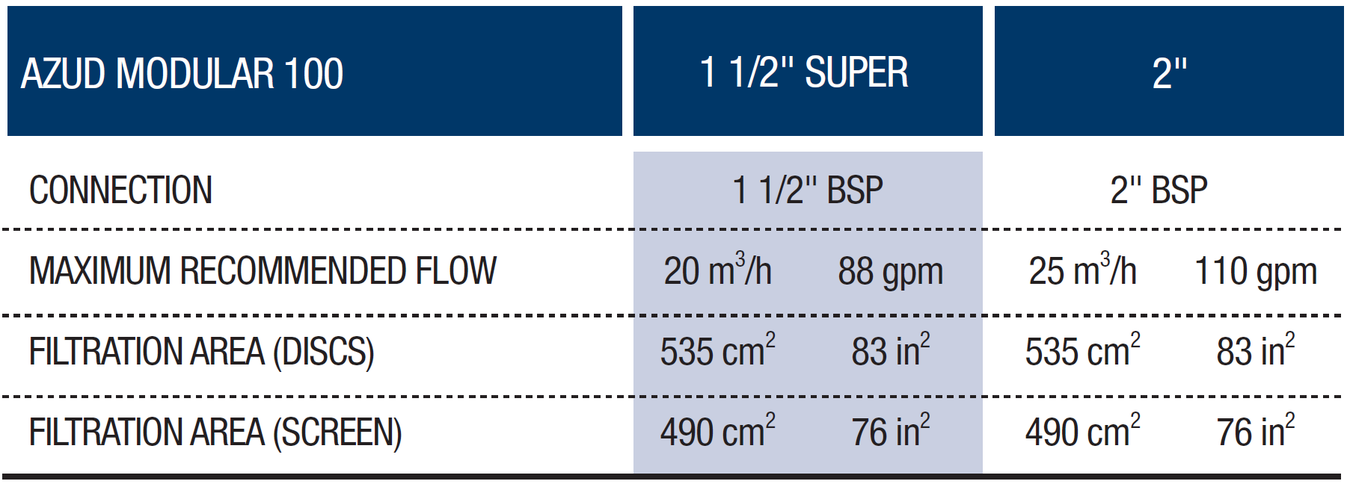

Azud Modular 1 1/2" Super & 2"

Deeco - Modular 100 - Image 3
Deeco - Modular 100 - Technical Data 3

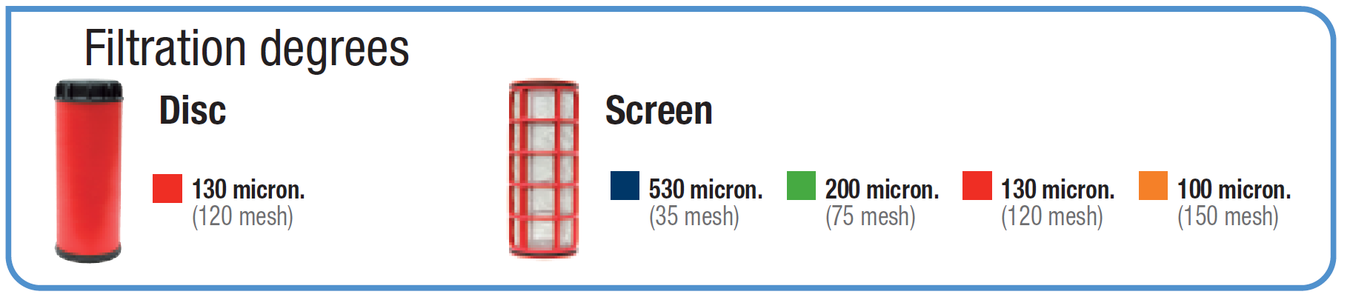

Filtration Degrees

Deeco - Modular 100 - Filtration Degrees

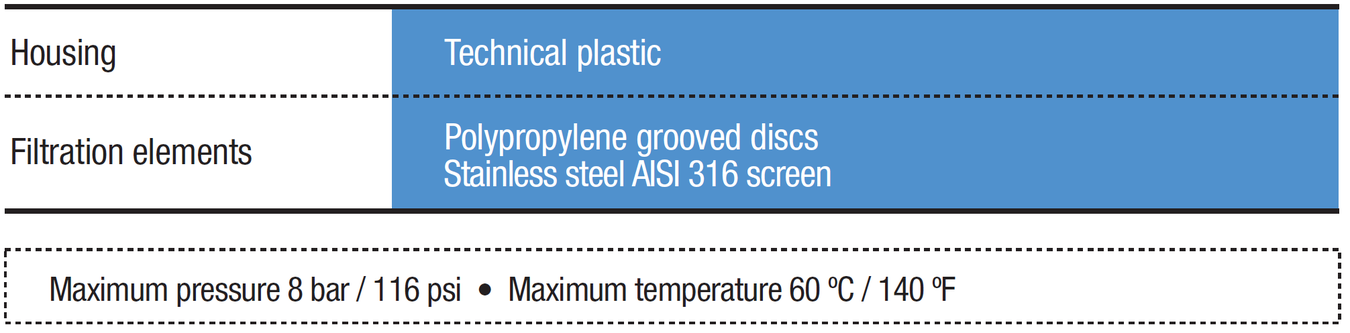

Construction Materials

Deeco - Modular 100 - Construction Materials

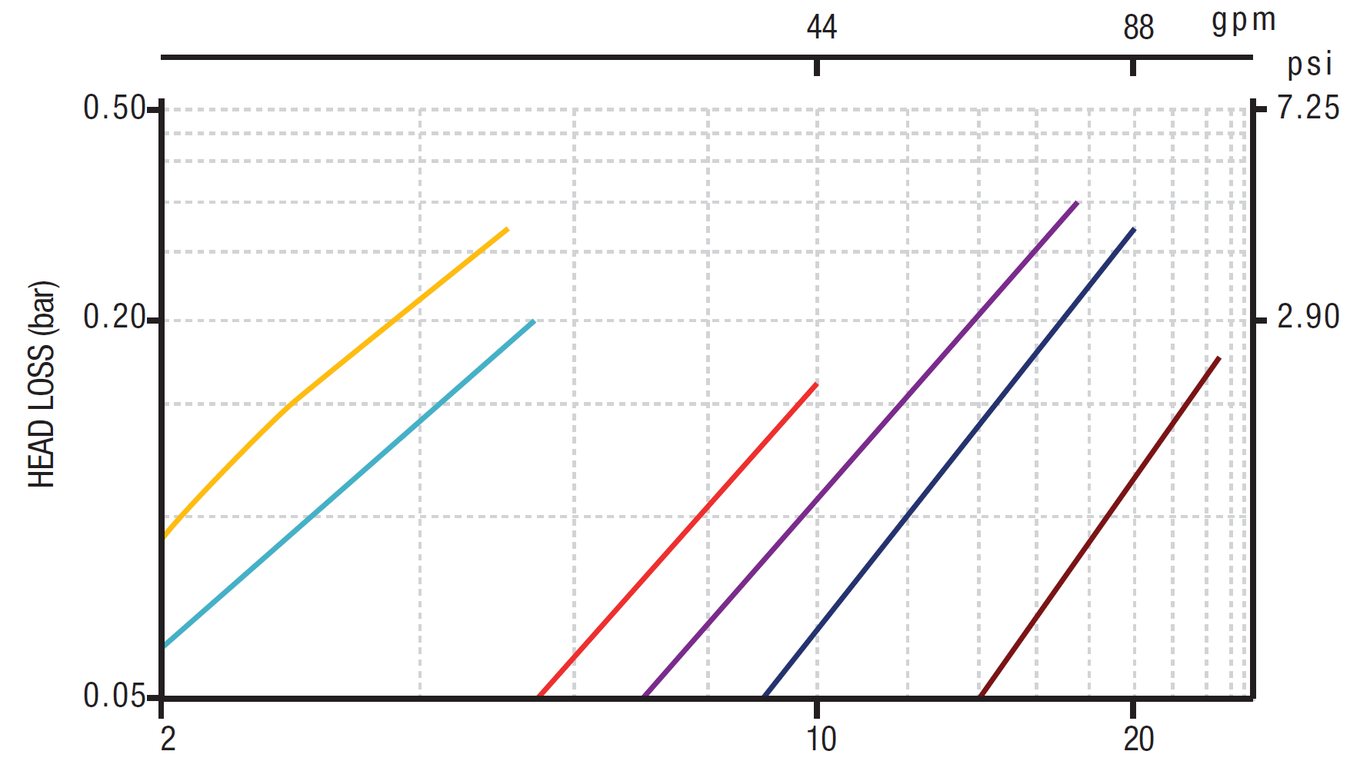

Azud Modular 100 - Discs - Head Loss Graph

130 micron

Deeco - Modular 100 - Head Loss Graph

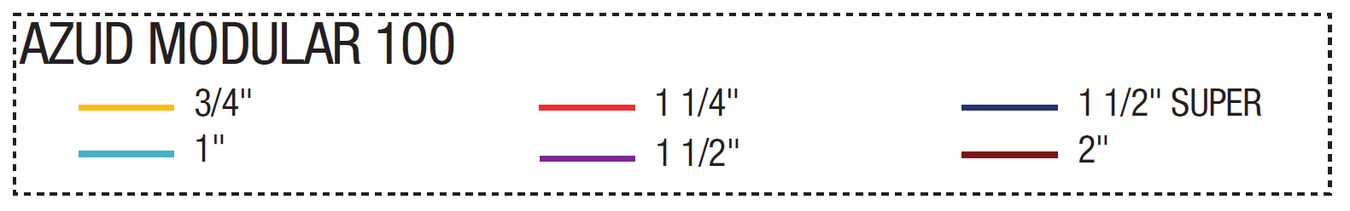

Deeco - Modular 100 - Head Loss Graph - Sizes

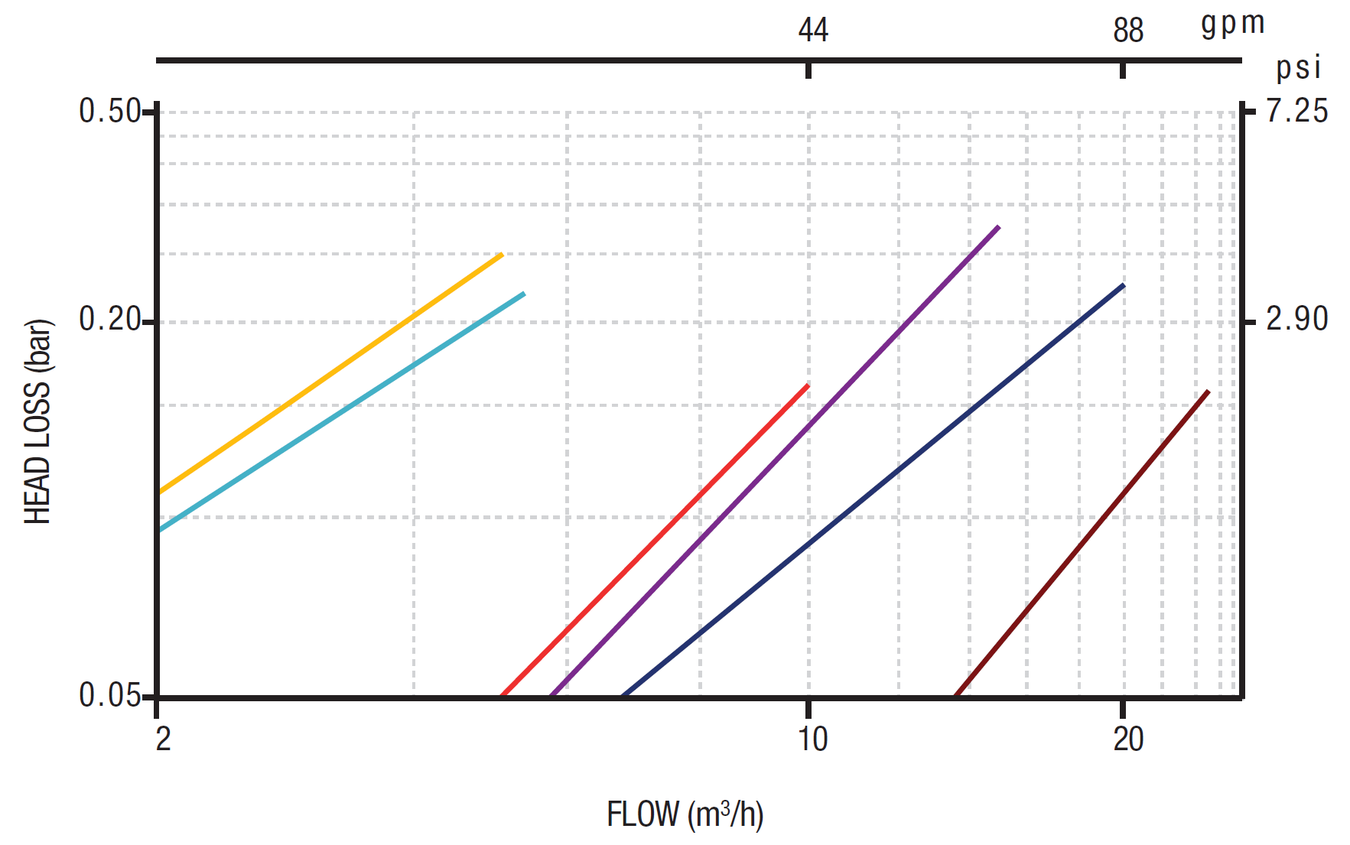

Azud Modular 100 - Screen - Head Loss Graph

130 micron

Deeco - Modular 100 - Head Loss Graph 2
Deeco - Modular 100 - Head Loss Graph - Sizes

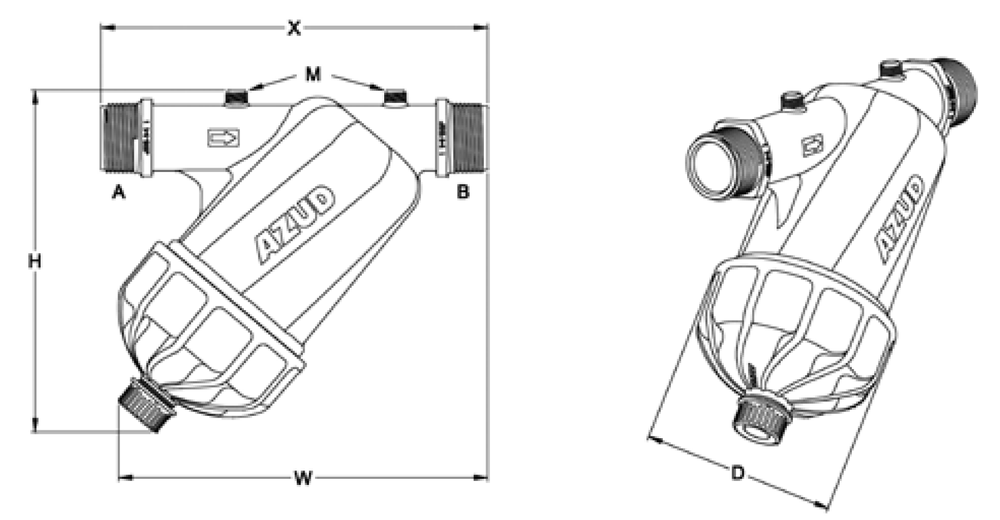

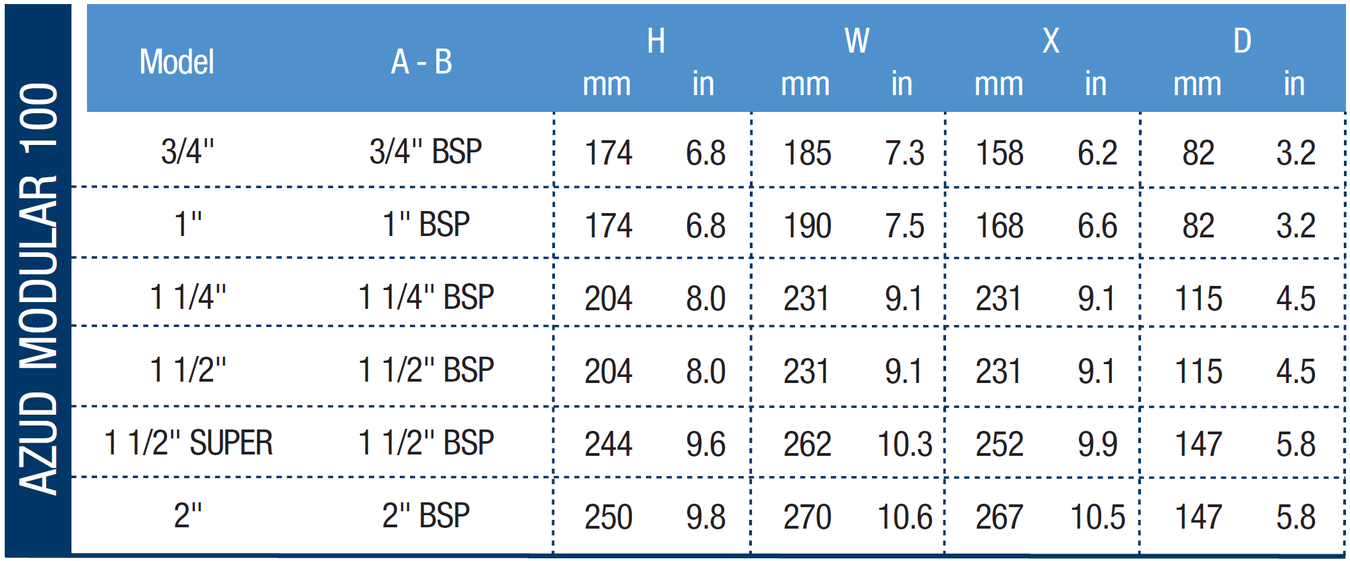

Dimensions and Weights

Deeco - Modular 100 - Dimensionsal Drawing
Deeco - Modular 100 - Dimensions

A- B Available in NPT connection

E- 3/4" BSP connection

M - 1/4" BSP connection

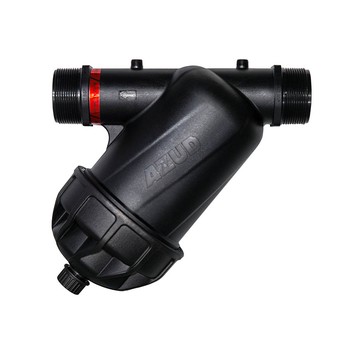

Azud - Modular 100 - Manual Screen Filter

Acrobat_CVaCNfOLbn
Product Code Size Pressure Rating Description
17L1A220 20mm 8 Bar M100 Screen Filter BSP 130μm
17L1B220 25mm 8 Bar M100 Screen Filter BSP 130μm
17L1D220 40mm 8 Bar M100 Screen Filter BSP 130μm
17L1E220 40Smm 8 Bar M100 Super Screen Filter BSP 130μm
17L1F220 50mm 8 Bar M100 Screen Filter BSP 130μm
17L1F230 50mm 8 Bar M100 Screen Filter BSP 200μm
17L1F240 50mm 8 Bar M100 Screen Filter BSP 530μm
18VC0007 All 8 Bar 20mm Flush Valve - Barbed outlet

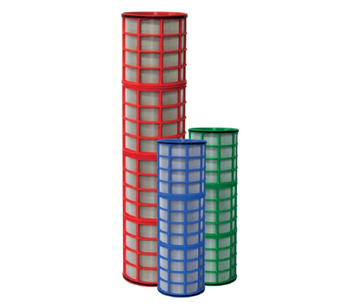

screen elements
Product Code Size Description
17RLG001 20-25mm M100 SCREEN 130μm RED
17RLG002 20-25mm M100 SCREEN 200μm GREEN
17RLG004 32-40mm M100 SCREEN 130μm RED
17RLG005 32-40mm M100 SCREEN 200μm GREEN
17RLG007 40S-50mm M100 SCREEN 130μm RED
17RLG008 40S-50mm M100 SCREEN 200μm GREEN
17RLG020 40S-50mm M100 SCREEN 530μm BLUE



Azud - Modular 100 - Manual Disc Filter

Acrobat_CVaCNfOLbn
Product Code Size Pressure Rating Description
17L1A120 20mm 8 Bar M100 Disc Filter BSP 130μm
17L1B120 25mm 8 Bar M100 Disc Filter BSP 130μm
17L1D120 40mm 8 Bar M100 Disc Filter BSP 130μm
17L1E120 40Smm 8 Bar M100 Super Disc Filter BSP 130μm
17L1F120 50mm 8 Bar M100 Disc Filter BSP 130μm

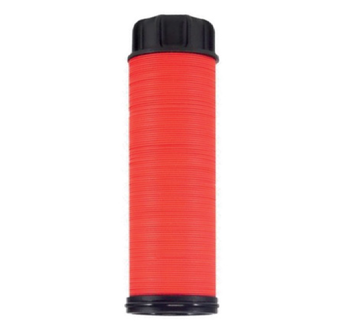

Disc elements
Product Code Size Description
17RLG100 20-25mm M100 DISC ELEMENT 130μm RED
17RLG101 32-40mm M100 DISC ELEMENT 130μm RED
17RLG102 40S-50mm M100 DISC ELEMENT 130μm RED
