Brand: | NaanDanJain |
Category: | Sprinklers, Metal Sprinklers |
Product Description
3/4” Male or Female; metal impact sprinkler, full circle
![5124648](https://deeco-production.s3.amazonaws.com/images/5124648.2e16d0ba.fill-1000x1000.jpg)
Male
![5124614](https://deeco-production.s3.amazonaws.com/images/5124614.2e16d0ba.fill-1000x1000.jpg)
Female

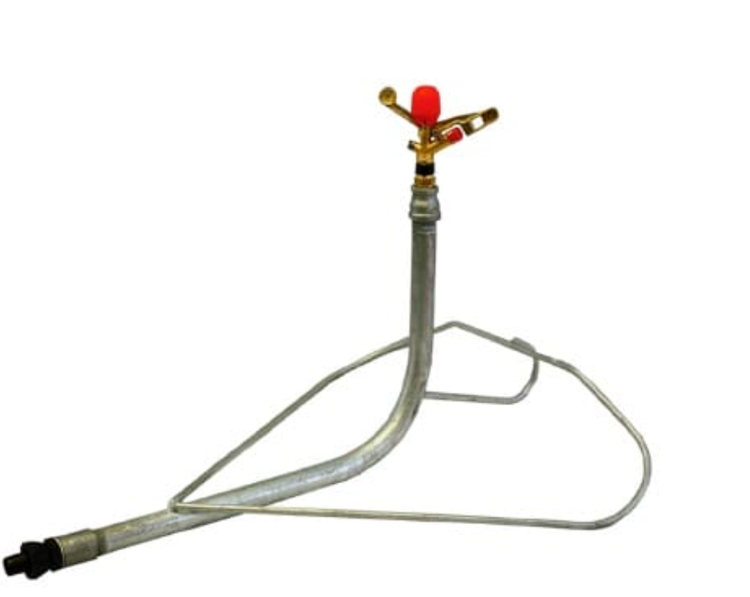

25 mm Long stand c/w 233AF Sprinkler
- Galvanized 25mm Upright Stand
- Quick controller
Sprinkler
- 3/4" Brass Sprinkler
- Colour-coded bayonet nozzles
- Sand and dust protection sleeve ensure reliable operation and durability.
- Red-cap completely seals and protects the drive spring and protects from frost damage.
![NDJ - 233AF- Long stand](https://deeco-production.s3.amazonaws.com/images/NDJ_-_233AF-_Long_stand.width-750.png)

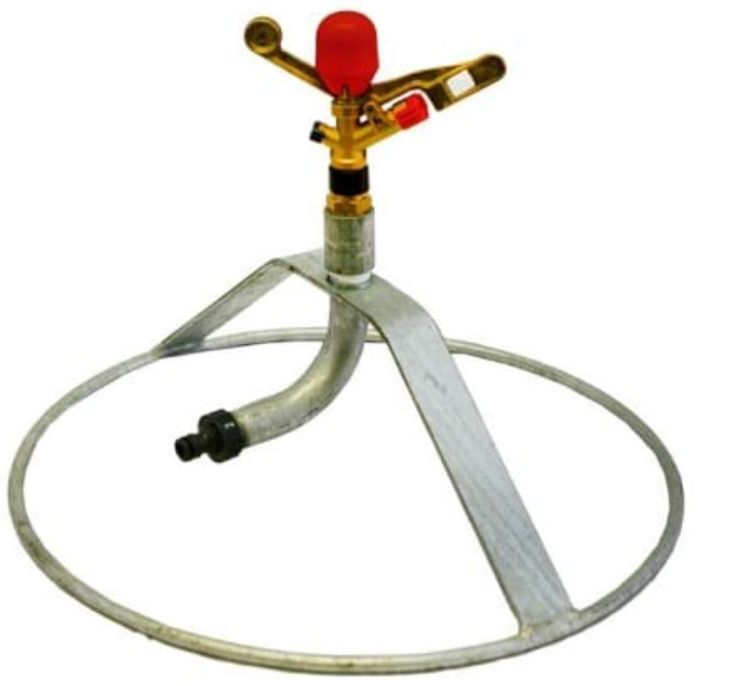

25mm Round Stand c/w 233AF Sprinkler
Stand
- Galvanized 20mm stand.
- Quick Controller.
Sprinkler
- 3/4" Brass Sprinkler
- Colour-coded bayonet nozzles.
- Sand and dust protection sleeve ensure reliable operation and durability.
- Red-cap completely seals and protects the drive spring and protects from frost damage.
![NDJ - 233AF- Round stand](https://deeco-production.s3.amazonaws.com/images/NDJ_-_233AF-_Round_stand.width-750.png)
Structure and Features
- High water distribution with spacing up to 20 m
- Color-coded bayonet nozzle for easy service.
- Integrated stream-straightening vane for maximum range.
- Sand and dust protection sleeve ensures reliable operation and durability.
- Red cap completely seals and protects drive spring and protects from frost damage.
- New rear nozzle 2.5L for improved performances.
Applications
- All overhead irrigation of crops with solid-set, mechanized or handline systems
- Irrigation under frost conditions in vineyards, orchards and vegetables.
Technical Data

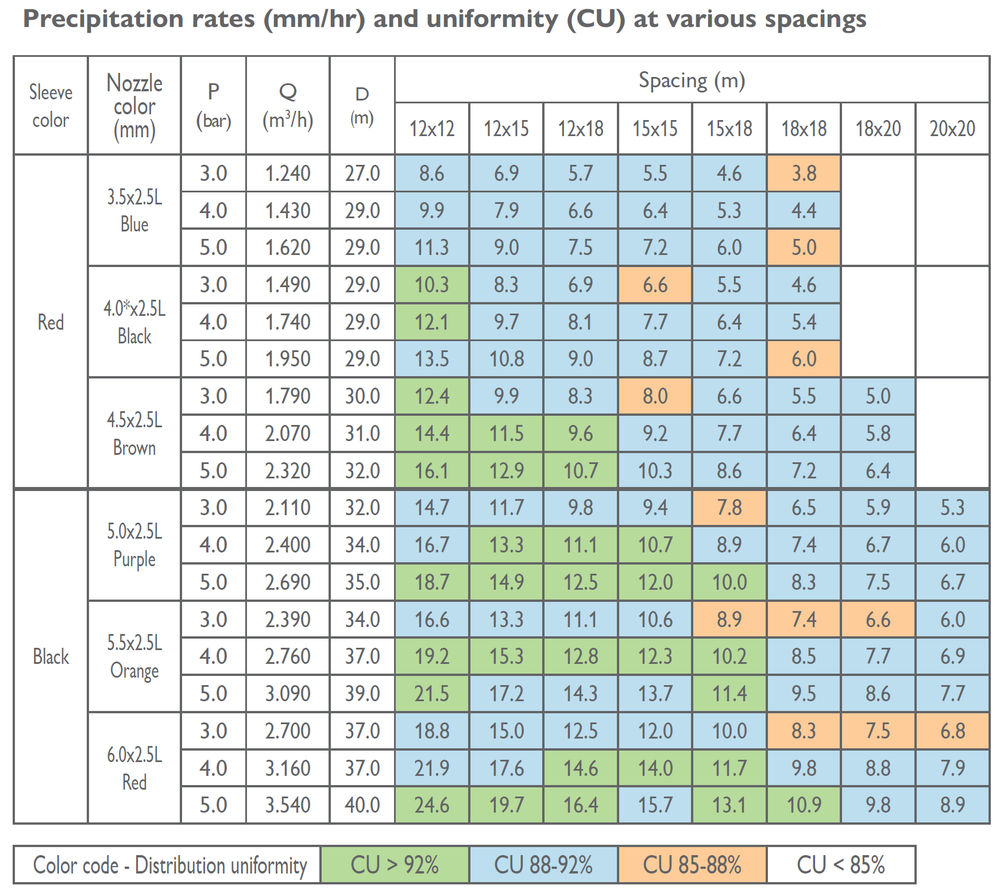

233B PERFORMANCE TABLE
![NDJ - 233B - Performnace Table 1](https://deeco-production.s3.amazonaws.com/images/NDJ_-_233B_-_Performnace_Table_1.width-1000.png)
Rear nozzle color: 2.5L - grey
Do not change nozzles from Red Sleeve group to Black Sleeve Group or vice-versa.
* Performance table prepared under laboratory conditions
* For windy conditions use closer spacing

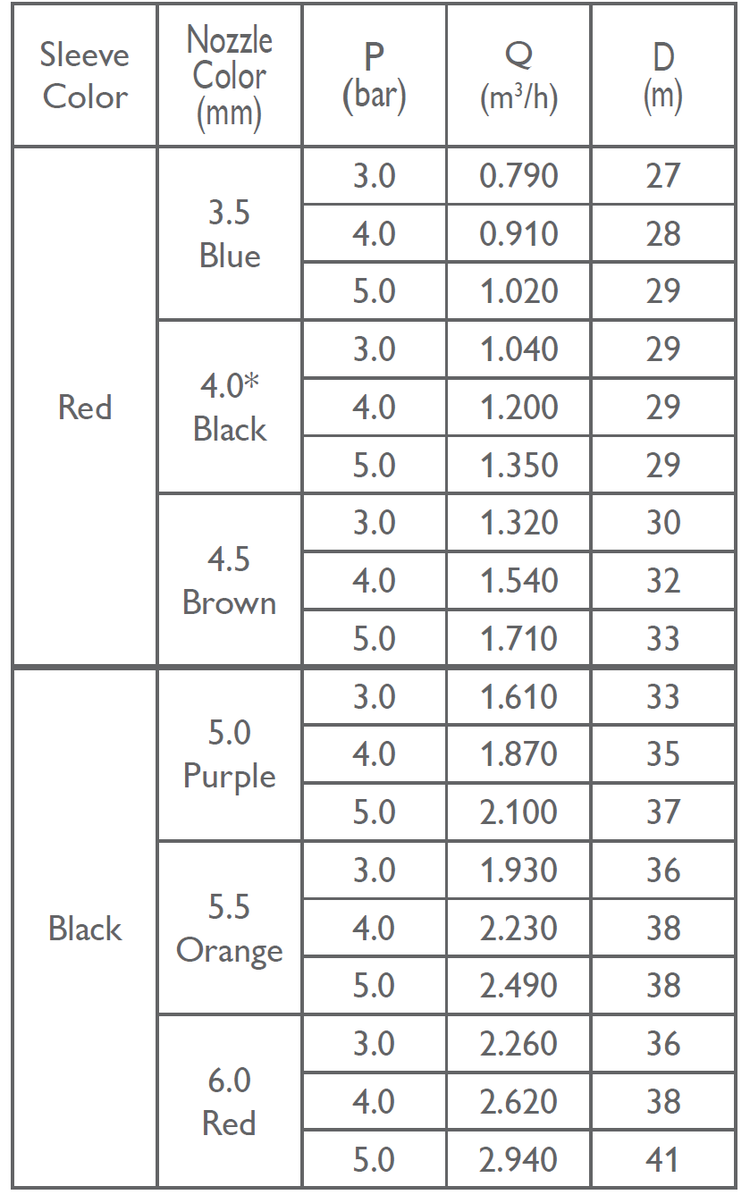

![NDJ - 233B - Performnace Table 2](https://deeco-production.s3.amazonaws.com/images/NDJ_-_233B_-_Performnace_Table_2.width-750.png)
*Standard nozzle
Do not change nozzles from “Red” Sleeve” group to “Black Sleeve” Group or vice versa.
NaanDanJain - Model 233B - M&F - Metal Sprinkler
233B - Male Base
3/4” Male, metal impulse sprinkler, full circle
![5124640](https://deeco-production.s3.amazonaws.com/images/5124640.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124640
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124644

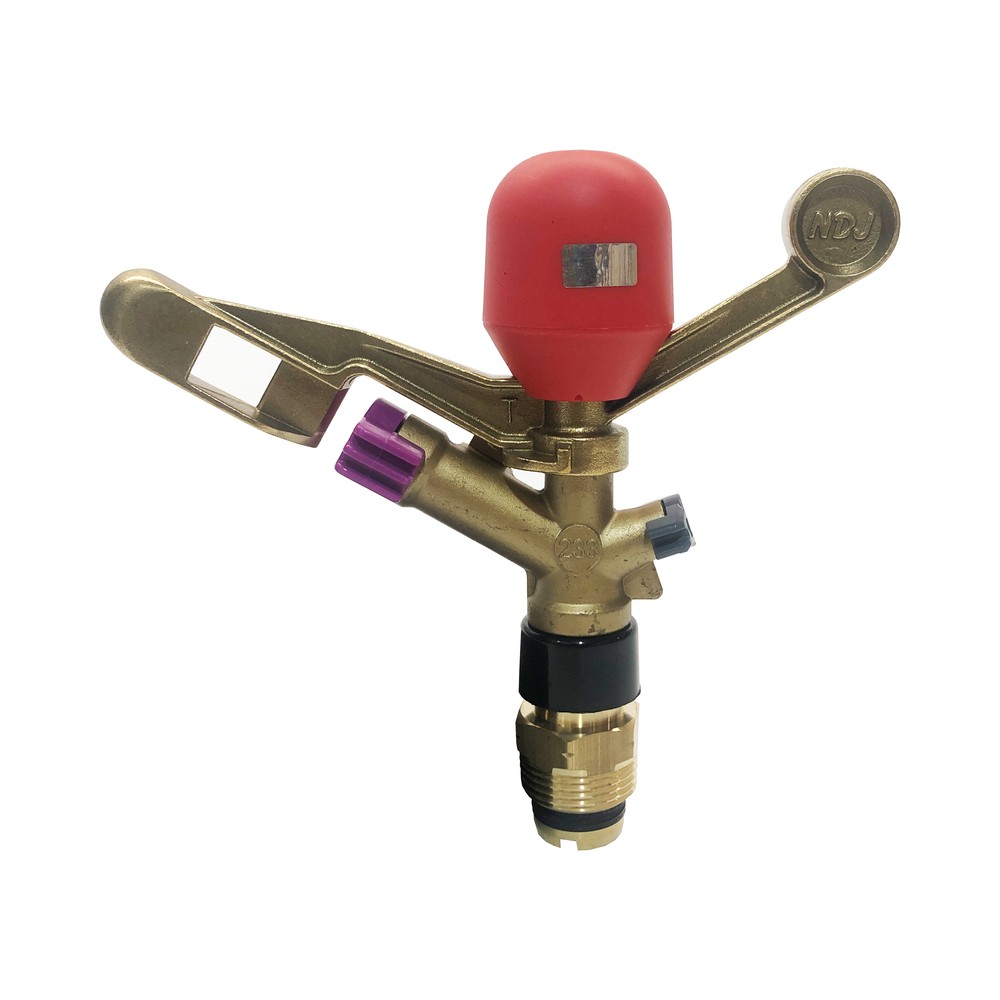

![5124646-Image](https://deeco-production.s3.amazonaws.com/images/5124646-Image.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124646

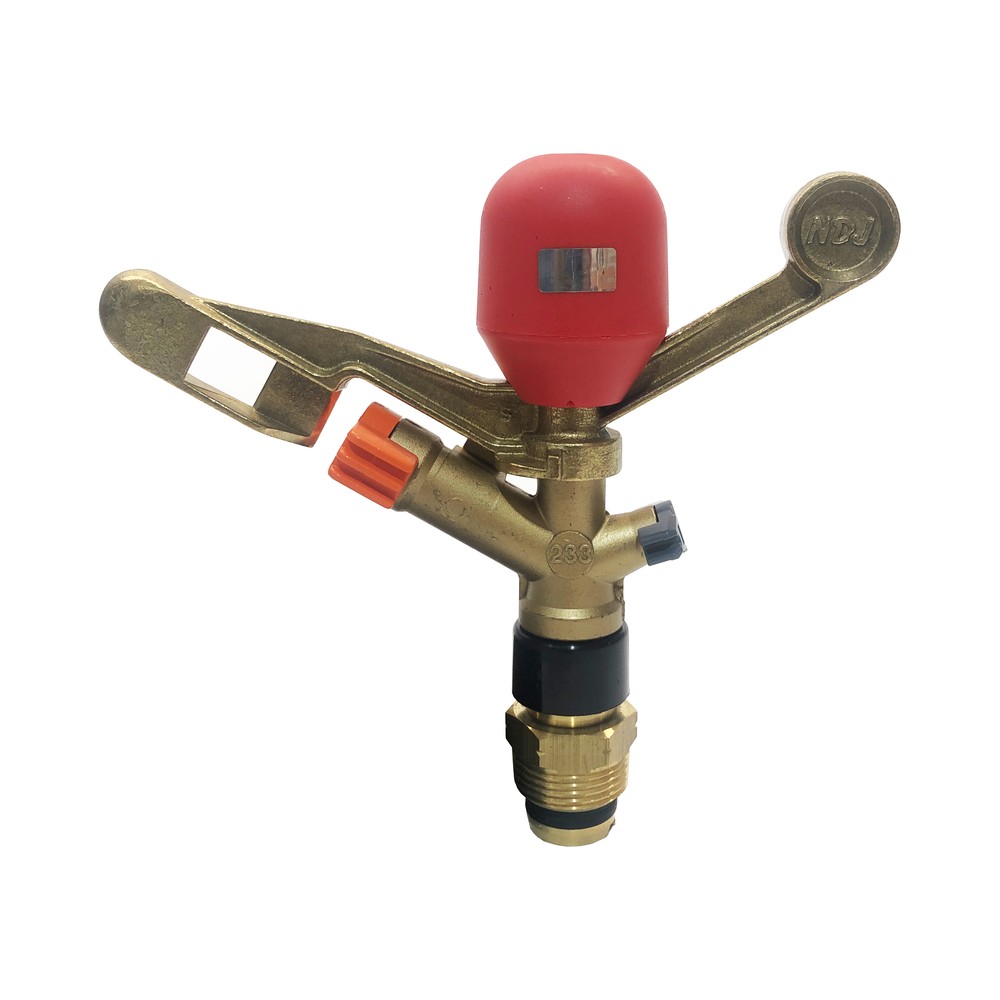

![5124648](https://deeco-production.s3.amazonaws.com/images/5124648.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124648
Product Code | Description | Nozzle | Box Qty |
---|---|---|---|
5124640* | 233B Sprinkler c/w 3.5mm Nozzle | Blue | 50 |
5124644* | 233B Sprinkler c/w 4.5mm Nozzle | Brown | 50 |
5124646 | 233B Sprinkler c/w 5.0mm Nozzle | Purple | 50 |
5124648 | 233B Sprinkler c/w 5.5mm Nozzle | Orange | 50 |
* Red Sleeve. Do not change nozzles from “Red Sleeve” group to “Black Sleeve” Group or vice versa.
233B - Female Base
3/4” Female, metal impulse sprinkler, full circle

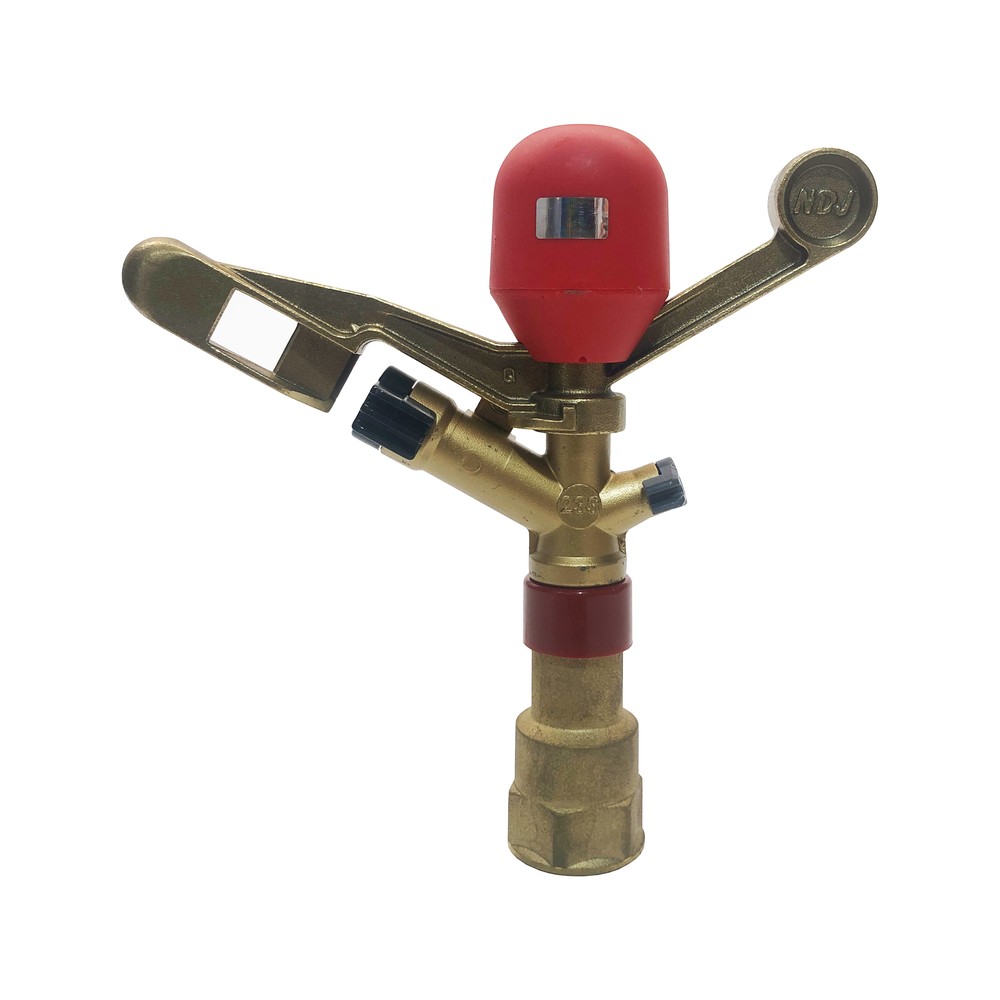

![5124612](https://deeco-production.s3.amazonaws.com/images/5124612.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124612

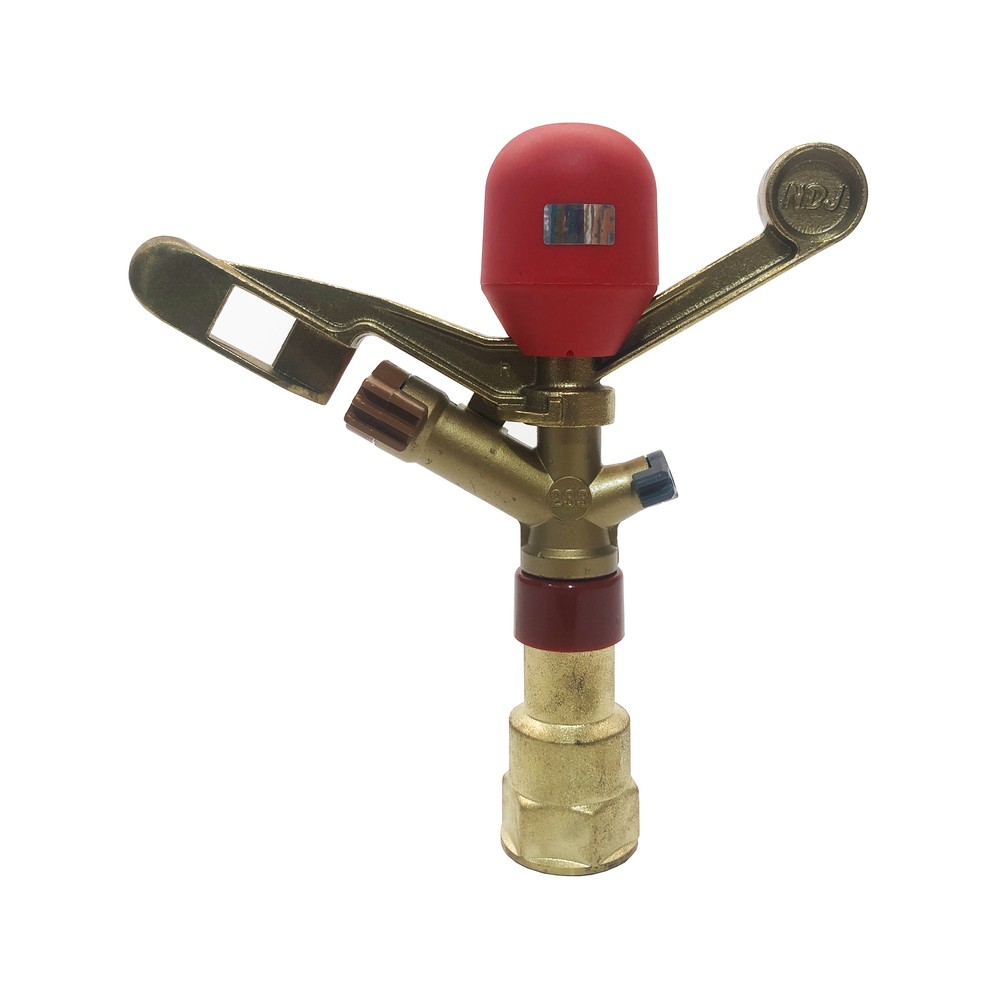

![5124614](https://deeco-production.s3.amazonaws.com/images/5124614.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124614

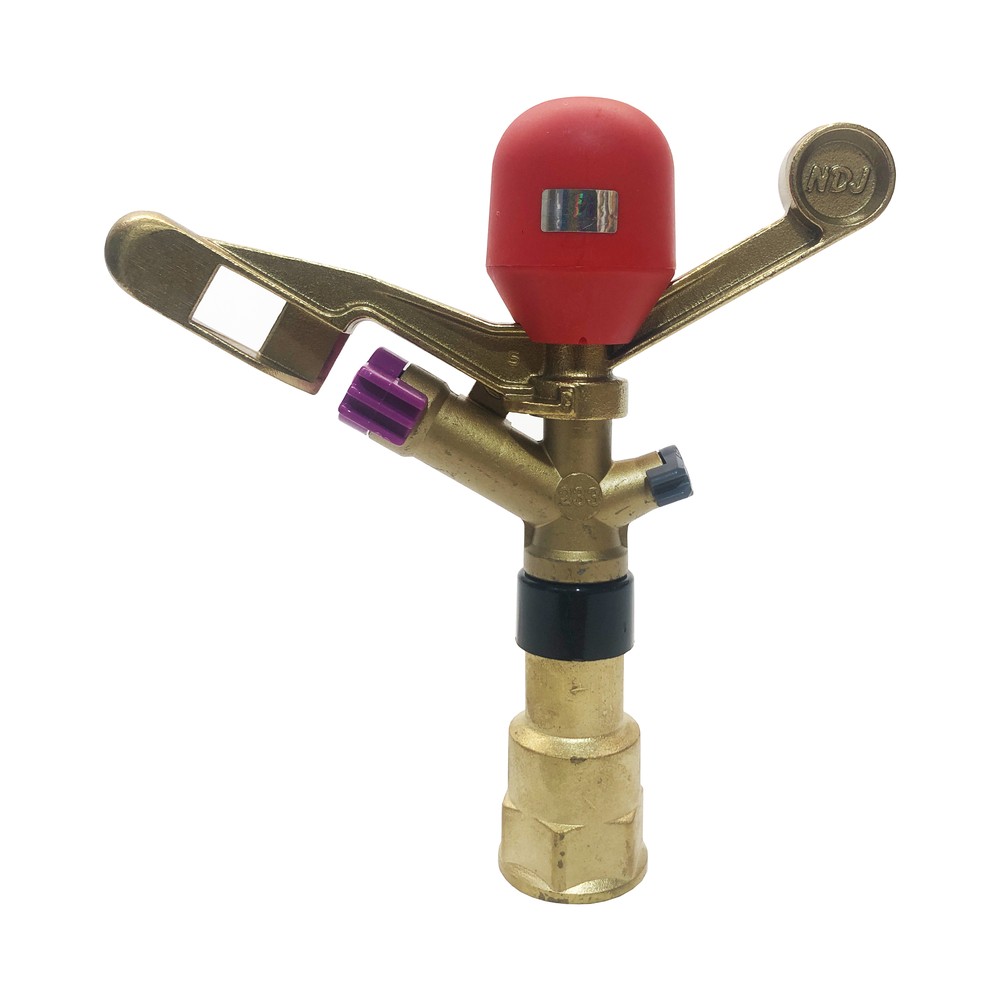

![5124616](https://deeco-production.s3.amazonaws.com/images/5124616.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124616
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124626
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124628
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
NDJ - 5124632
Product Code | Description | Nozzle | Box Qty |
---|---|---|---|
5124612* | 233B Sprinkler c/w 4.0mm Nozzle | Black | 45 |
5124614* | 233B Sprinkler c/w 4.5mm Nozzle | Brown | 45 |
5124616 | 233B Sprinkler c/w 5.0mm Nozzle | Purple | 45 |
5124626 | 233B Sprinkler c/w 4.0mm x 2.5mm Nozzle | Black/Grey | 45 |
5124628* | 233B Sprinkler c/w 4.5mm x 2.5mm Nozzle | Brown/Grey | 45 |
5124632 | 233B Sprinkler c/w 5.5mm x 2.5mm Nozzle | Orange/Grey | 45 |
* Red Sleeve. Do not change nozzles from “Red Sleeve” group to “Black Sleeve” Group or vice versa.

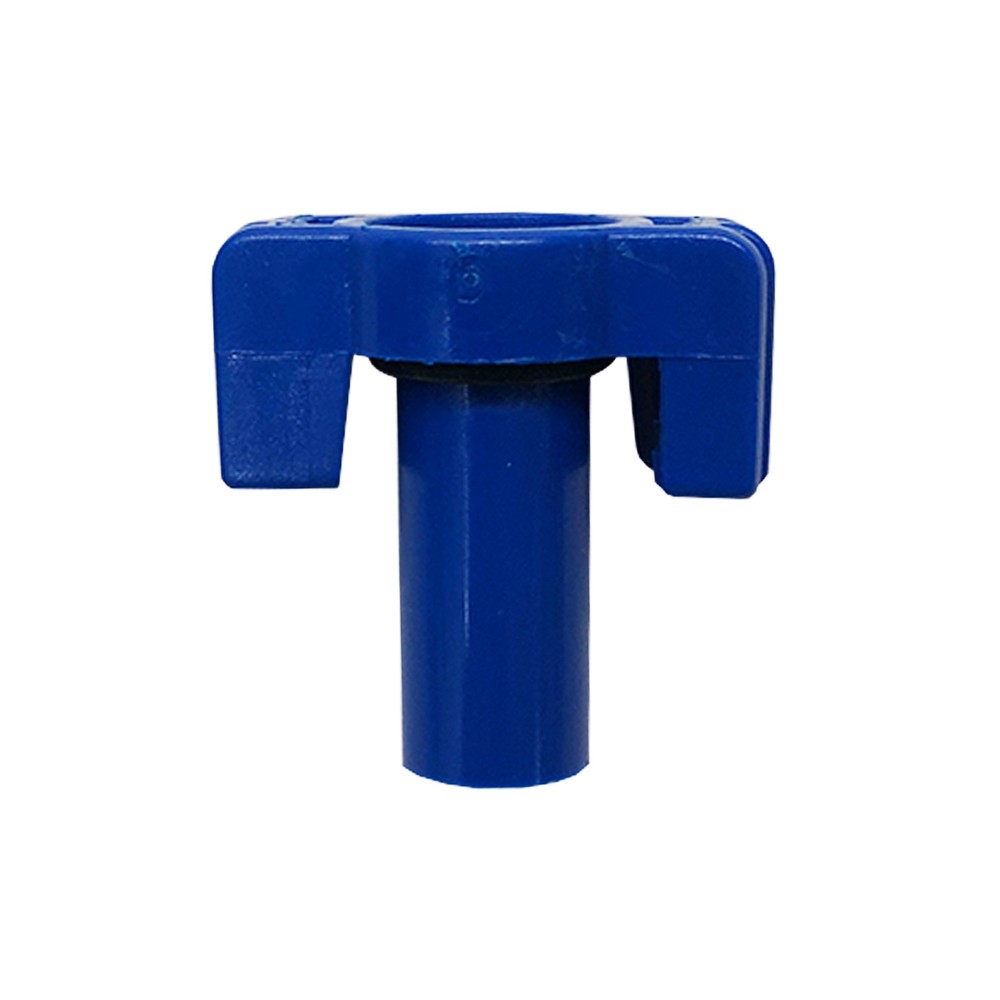

![585355](https://deeco-production.s3.amazonaws.com/images/585355.2e16d0ba.fill-1000x1000.jpg)
NDJ - NA585355

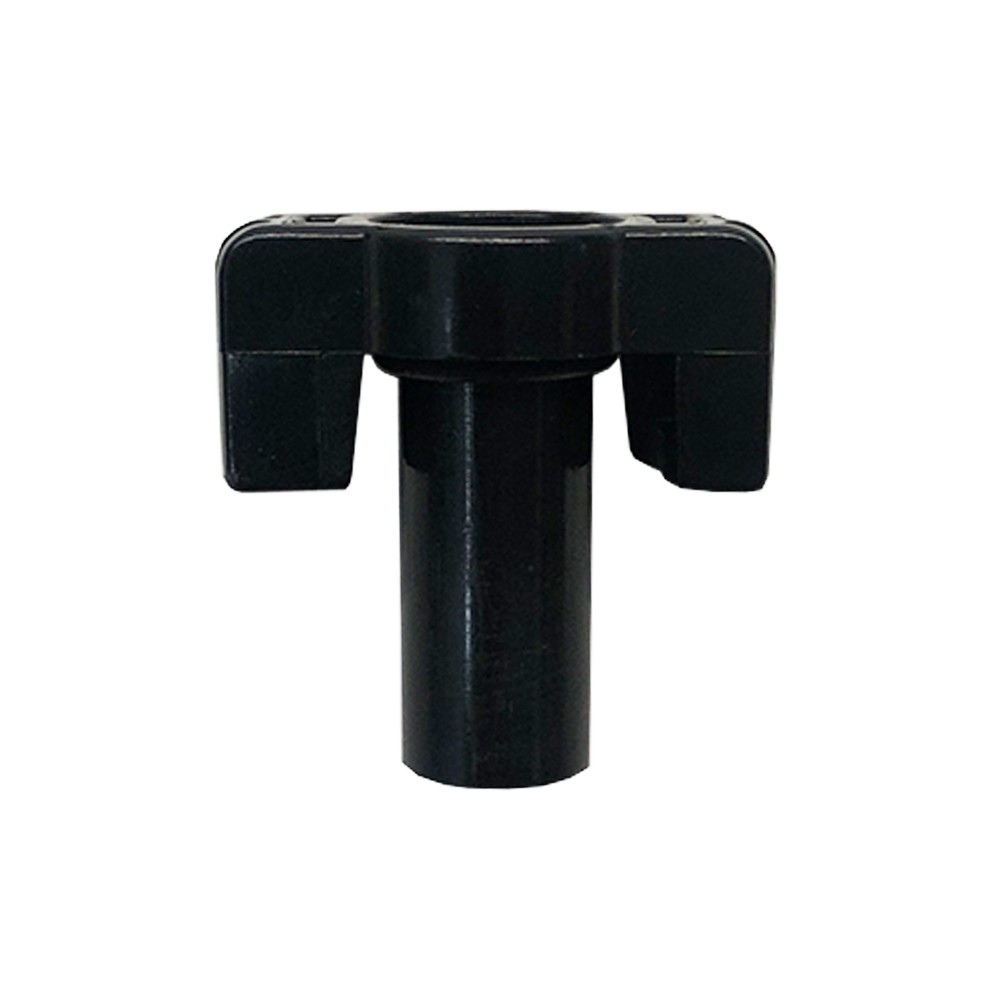

![585405](https://deeco-production.s3.amazonaws.com/images/585405.2e16d0ba.fill-1000x1000.jpg)
NDJ - 585405

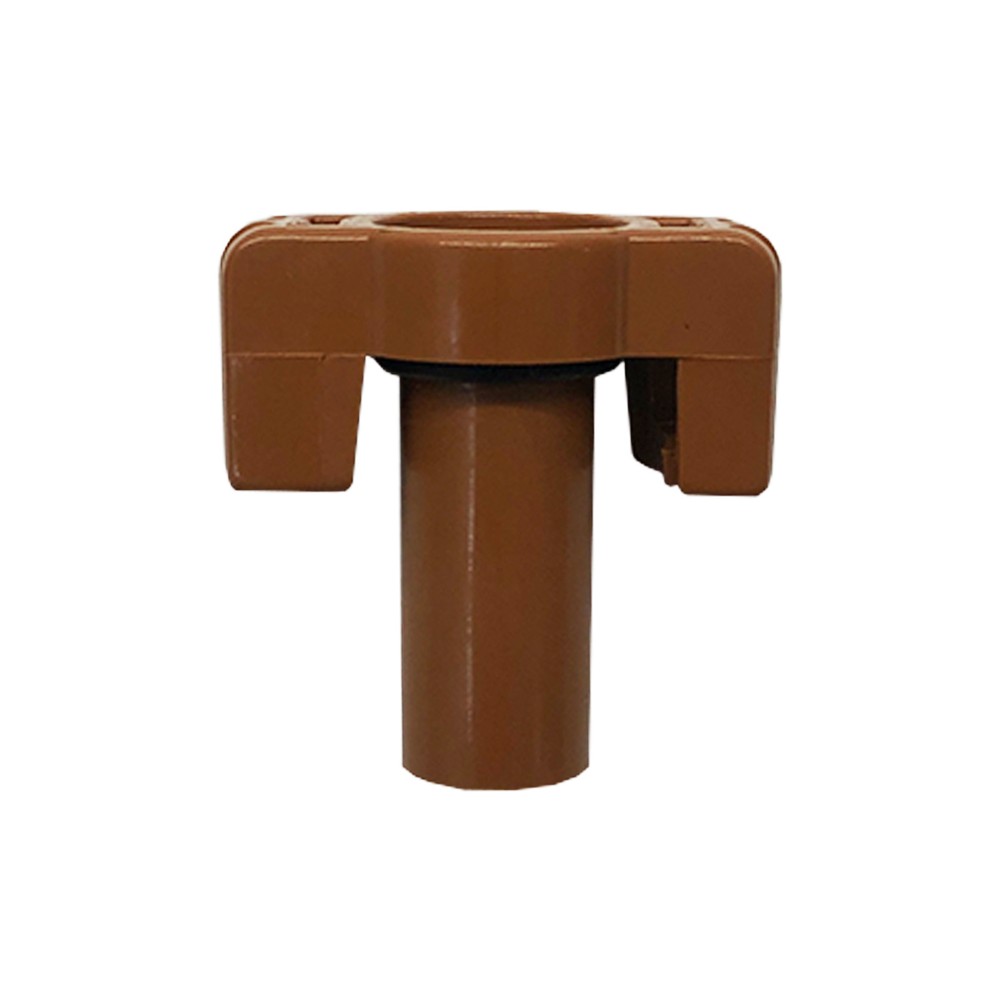

![585455](https://deeco-production.s3.amazonaws.com/images/585455.2e16d0ba.fill-1000x1000.jpg)
NDJ - 585455

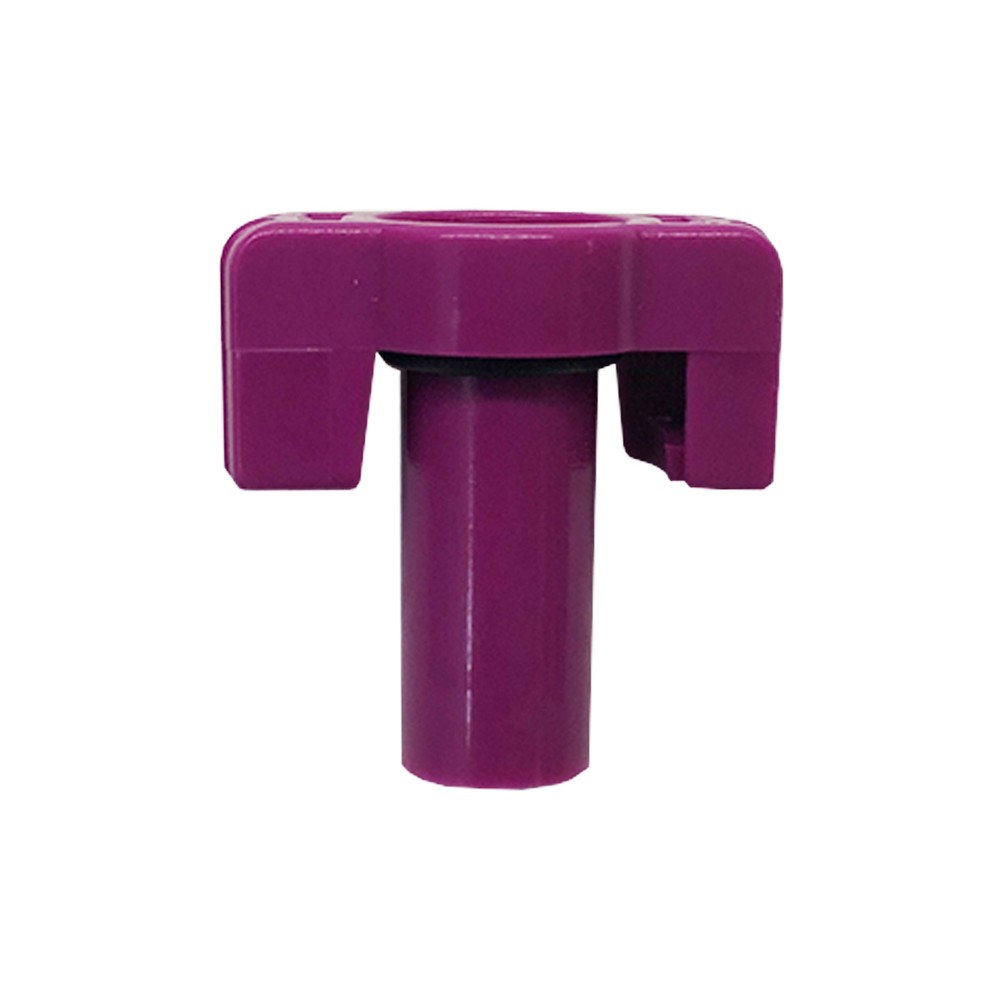

![585505](https://deeco-production.s3.amazonaws.com/images/585505.2e16d0ba.fill-1000x1000.jpg)
NDJ - 585505

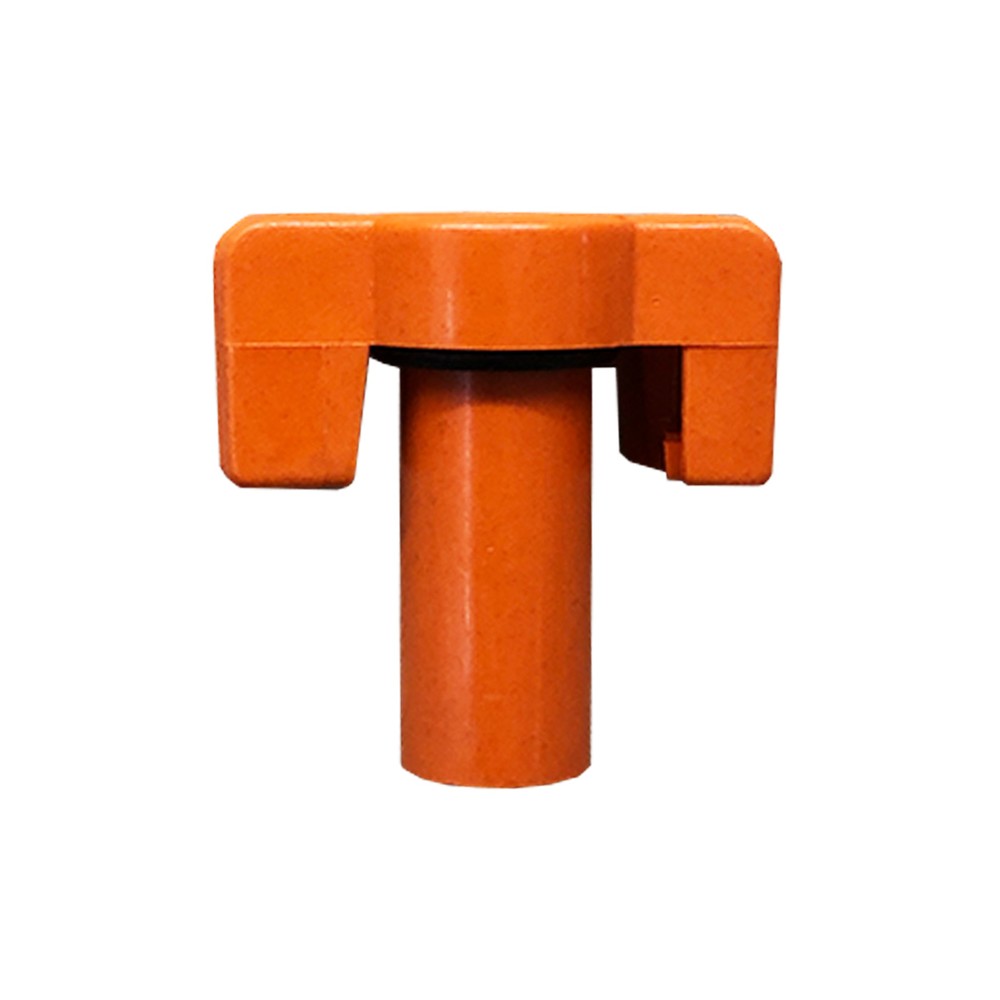

![585551](https://deeco-production.s3.amazonaws.com/images/585551.2e16d0ba.fill-1000x1000.jpg)
NDJ - 585555

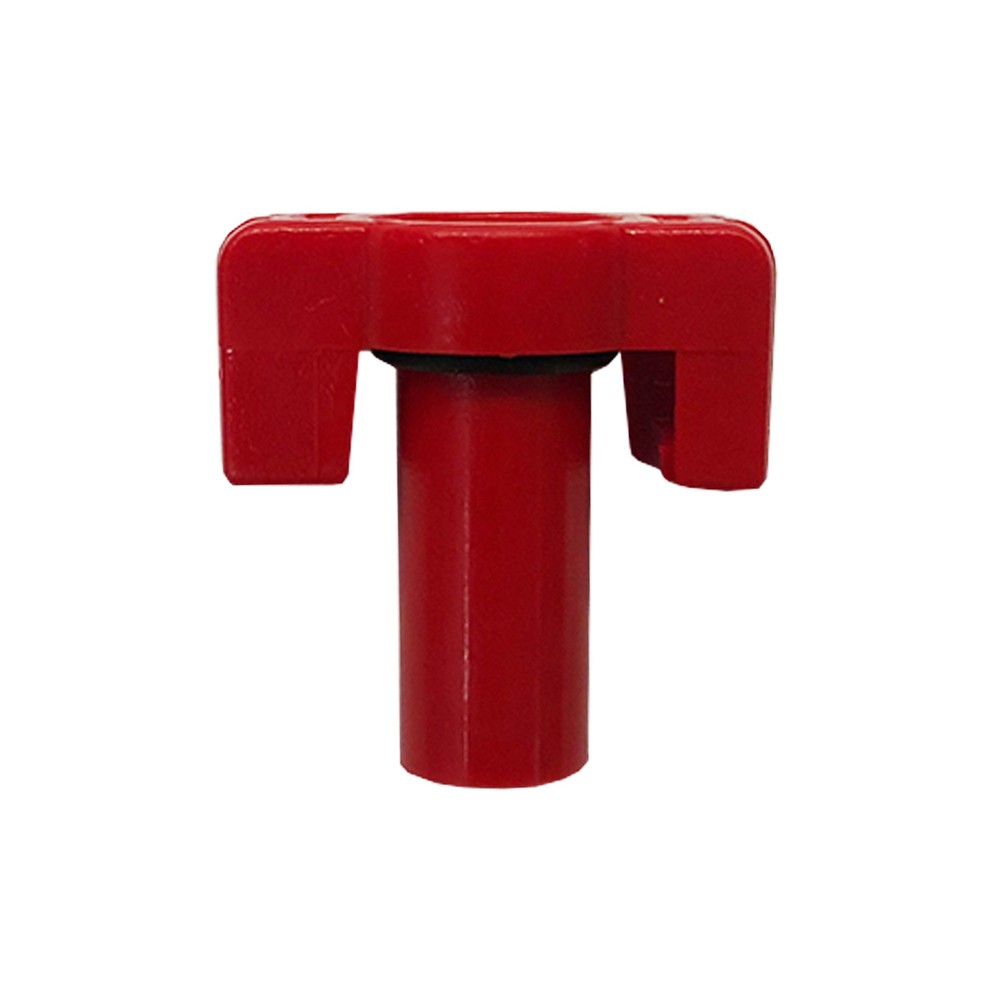

![585605](https://deeco-production.s3.amazonaws.com/images/585605.2e16d0ba.fill-1000x1000.jpg)
NDJ - 585605

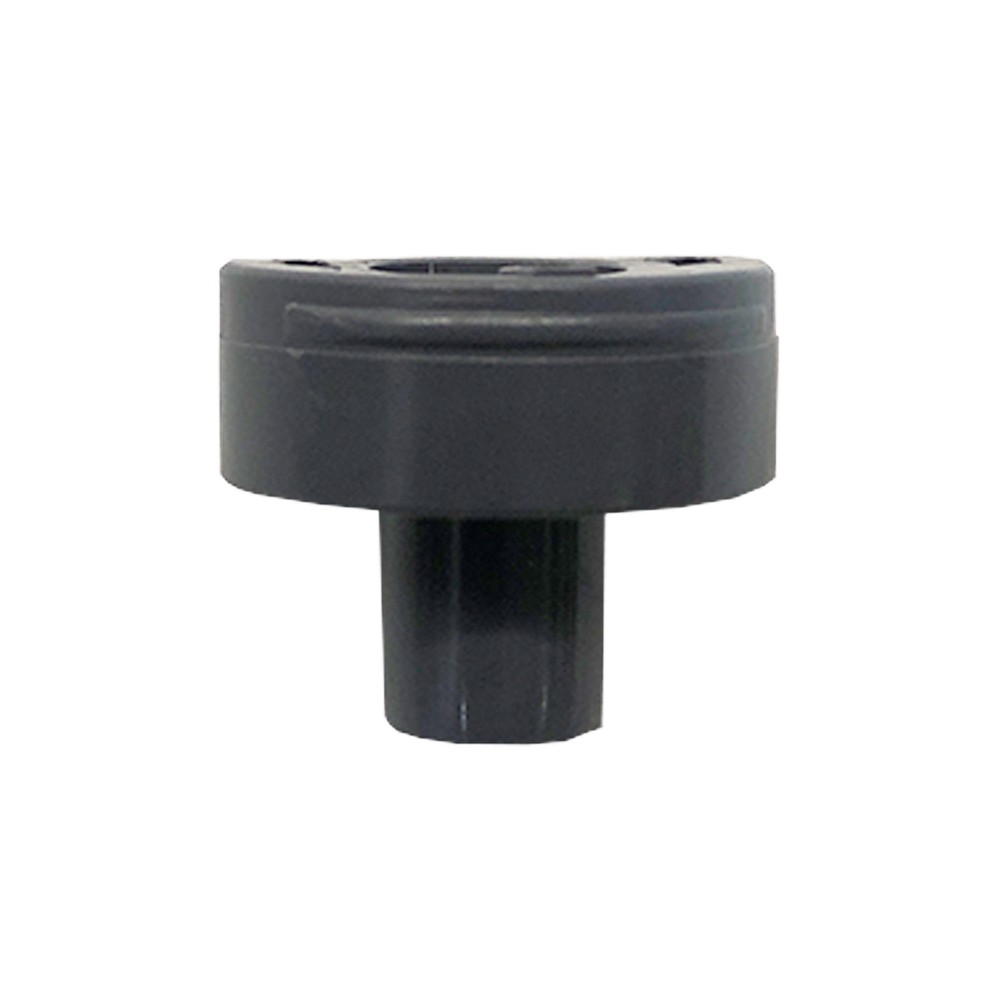

![583255](https://deeco-production.s3.amazonaws.com/images/583255.2e16d0ba.fill-1000x1000.jpg)
NDJ - 583255

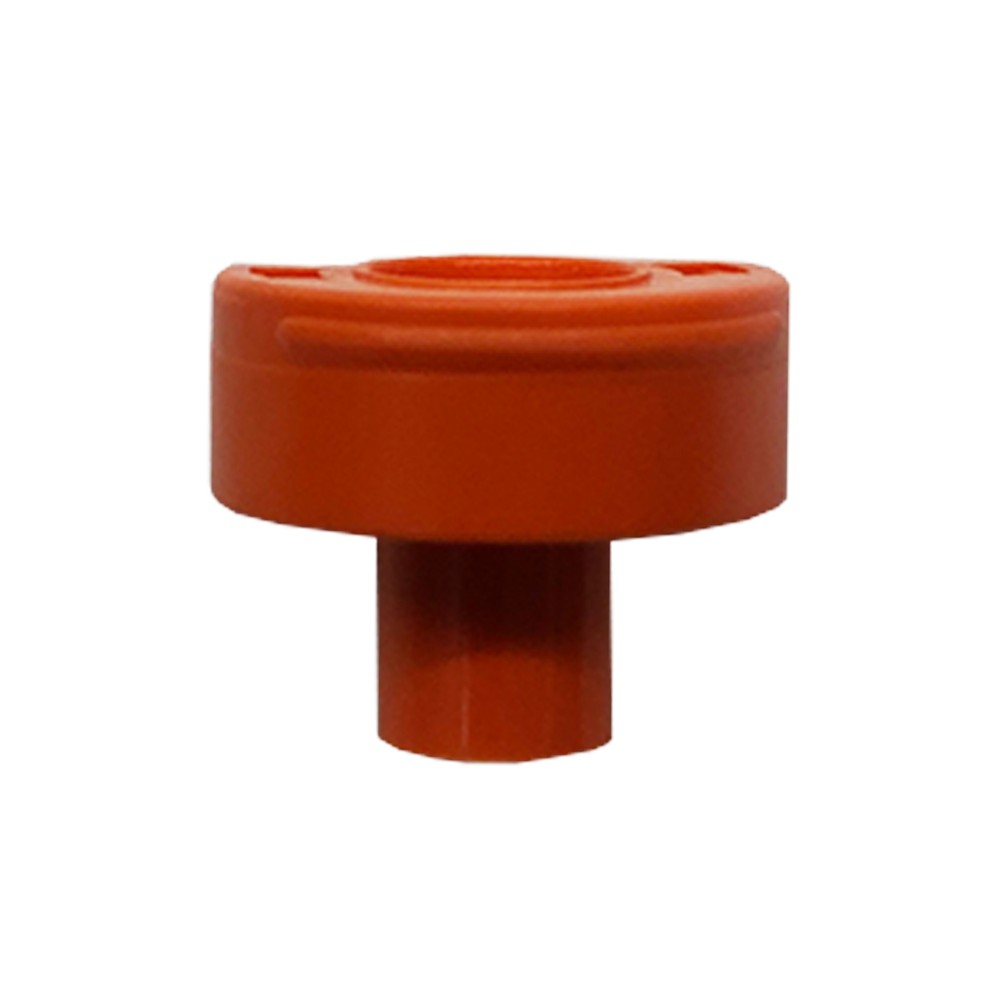

![583325](https://deeco-production.s3.amazonaws.com/images/583325.2e16d0ba.fill-1000x1000.jpg)
NDJ - 583325
Product Code | Size | Description | Colour |
---|---|---|---|
NA585355 | 3.5mm | 233B Bayonet Nozzle | Blue |
NA585405 | 4.0mm | 233B Bayonet Nozzle | Black |
NA585455 | 4.5mm | 233B Bayonet Nozzle | Brown |
NA585505 | 5.0mm | 233B Bayonet Nozzle | Purple |
NA585555 | 5.5mm | 233B Bayonet Nozzle | Orange |
NA585605 | 6.0mm | 233B Bayonet Nozzle | Red |
NA583255 | 2.5mm | 233B Bayonet Back Nozzle | Slotted Grey |
NA583325 | 2.5mm | 233B Bayonet Back Nozzle | Slotted Orange |

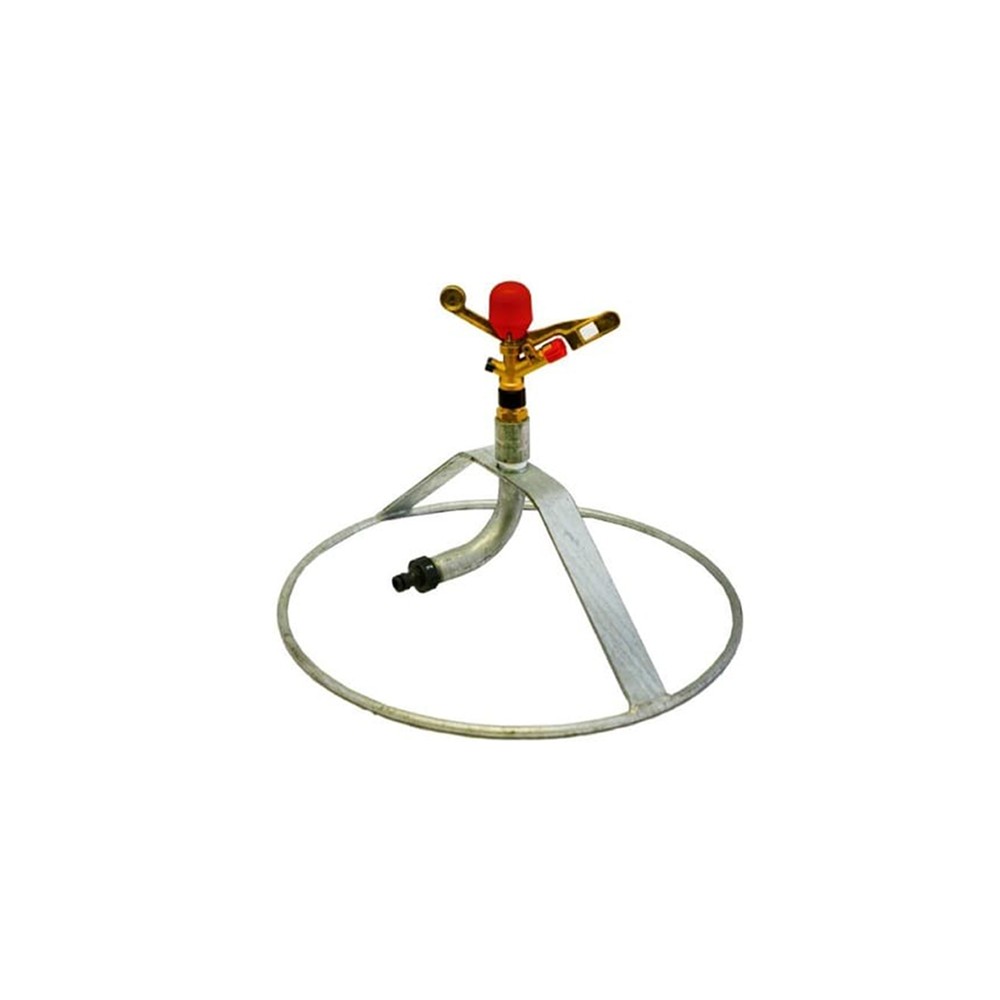

![ROUND STAND](https://deeco-production.s3.amazonaws.com/images/ROUND_STAND.2e16d0ba.fill-1000x1000.jpg)
NAGRS233B

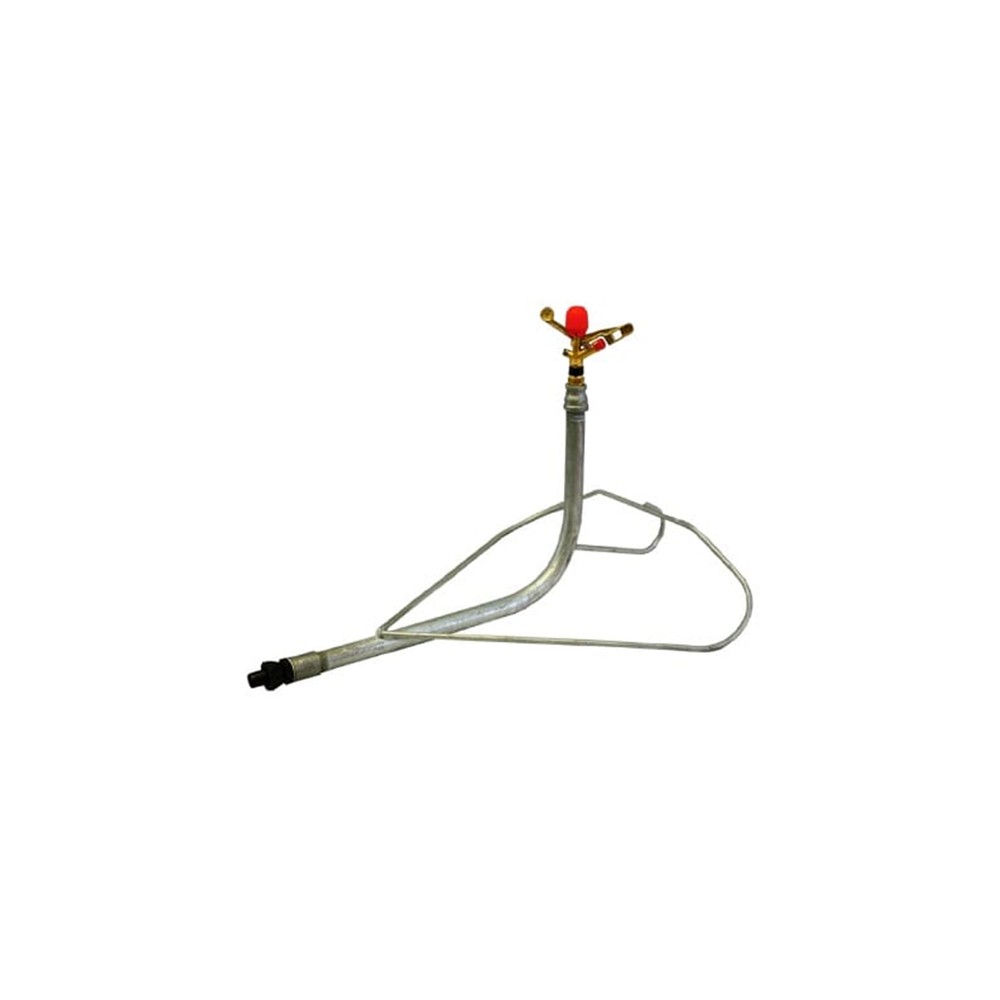

![Long STand](https://deeco-production.s3.amazonaws.com/images/Long_STand.2e16d0ba.fill-1000x1000.jpg)
NAGLS233B

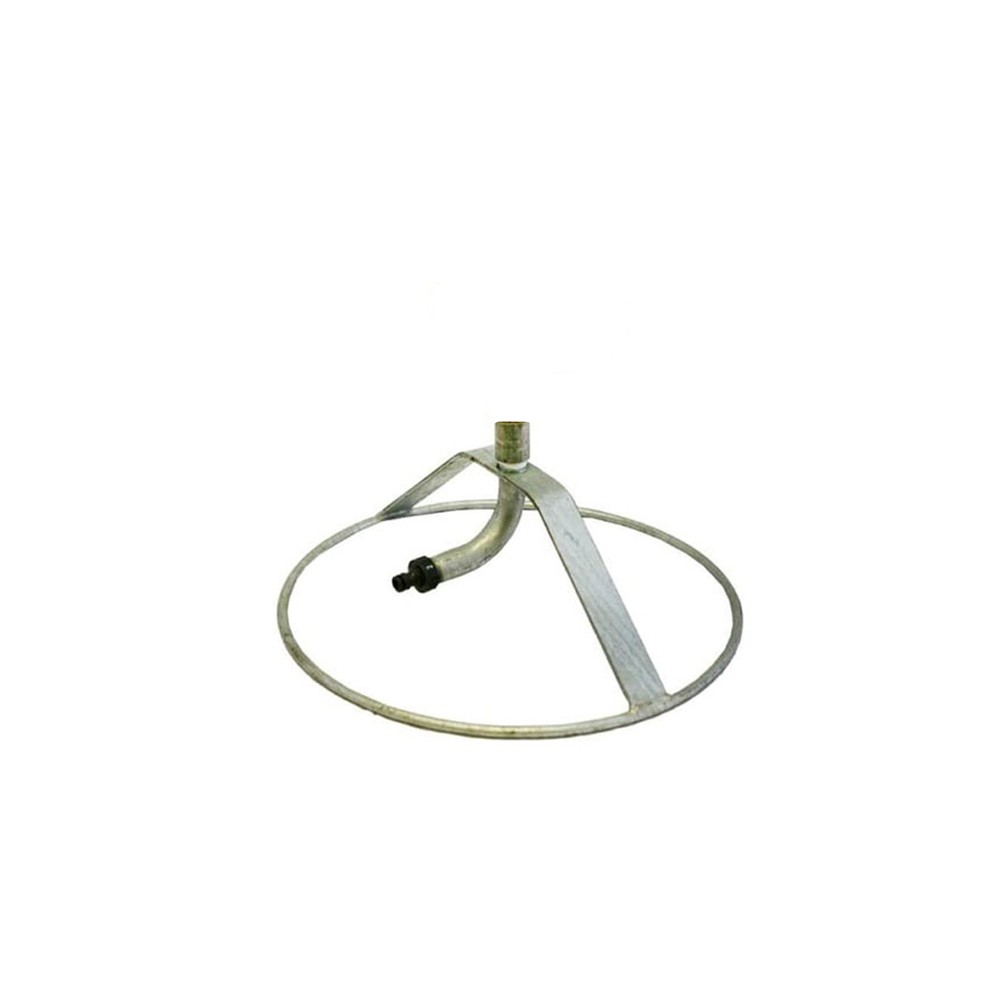

![NAGRS](https://deeco-production.s3.amazonaws.com/images/NAGRS.2e16d0ba.fill-1000x1000.jpg)
NAGRS

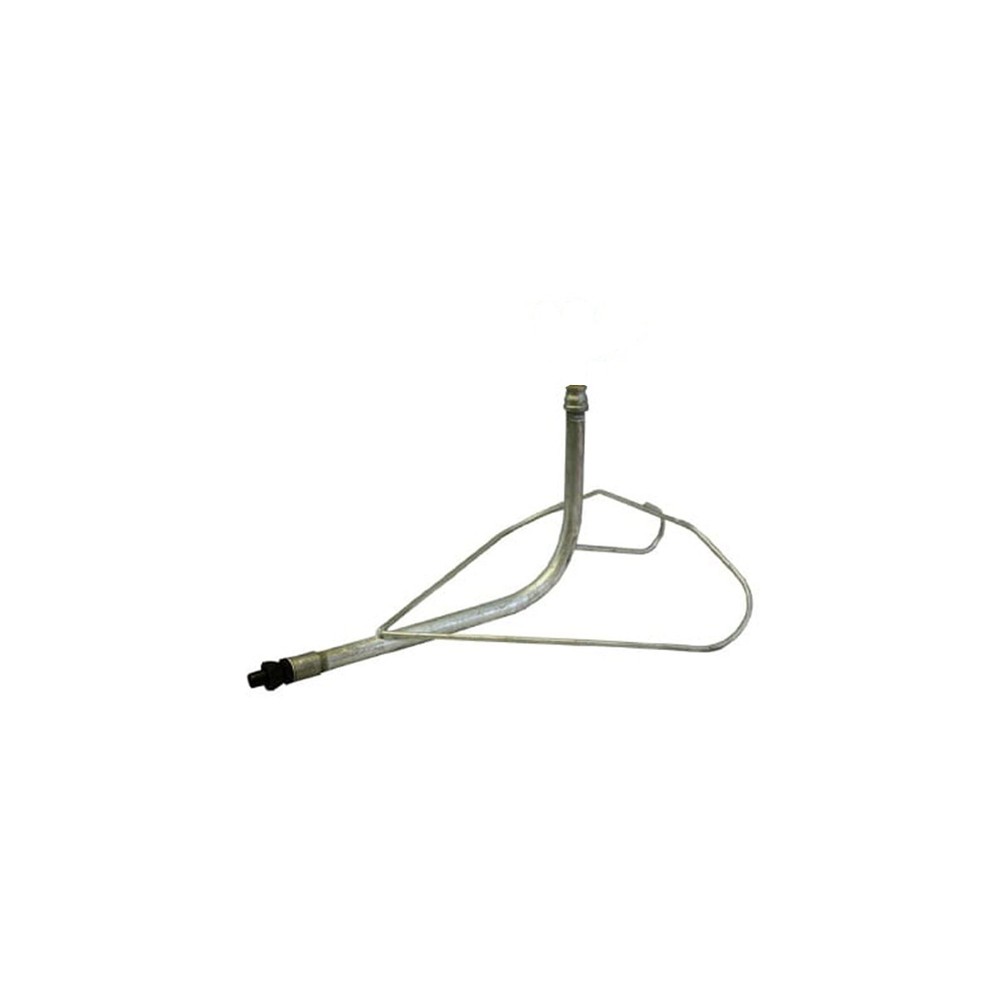

![NAGLS-STAND](https://deeco-production.s3.amazonaws.com/images/NAGLS-STAND.2e16d0ba.fill-1000x1000.jpg)
NAGLS
Product Code | Size | Description |
---|---|---|
NAGRS233B | 20mm | Round Stand c/w NDJ 233B AF Sprinkler 4.0mm Black |
NAGLS233B | 25mm | Galvanized Long Stand c/w NDJ 233B AF Sprinkler 5.0mm Purple |
NAGRS | 20mm | Round Galvanized Stand Only |
NAGLS | 25mm | Long Line Sprinkler Stand Only |
